Inovance Technology · Drives, motion & robots

Inovance AC drives, servo, PLCs & industrial robots

MD-series AC drives, SV servo systems, H5U and AM EtherCAT PLCs, IT7000 HMIs and SCARA and 6-axis robots for machine builders and process plants.

MD200 · MD500 · MD800 drives
SV660 · SV670 servo
H5U · AM600 PLCs
SCARA & 6-axis robots

Get a quote Browse the range ↓

Inovance · VFD

AC Drives

Low-voltage AC drives for pumps, fans, conveyors, compressors, cranes and machines, in single-phase 200 V and three-phase 200 V and 400 V classes.

Get a quote

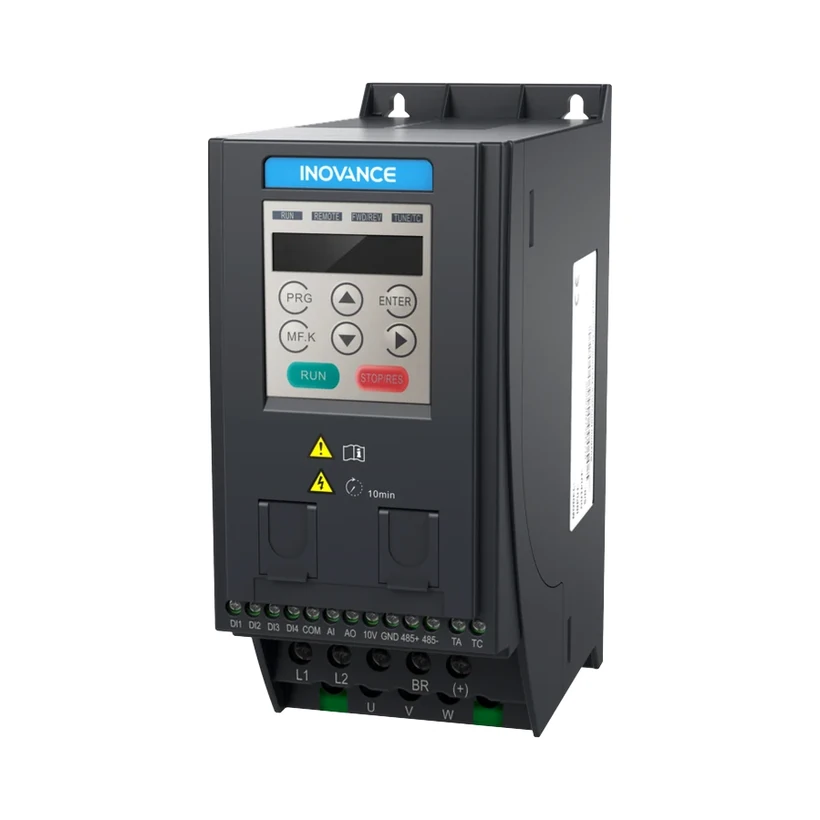

MD200

Compact, economic drive

MD310

Compact vector drive, economic

MD290

General-purpose drive

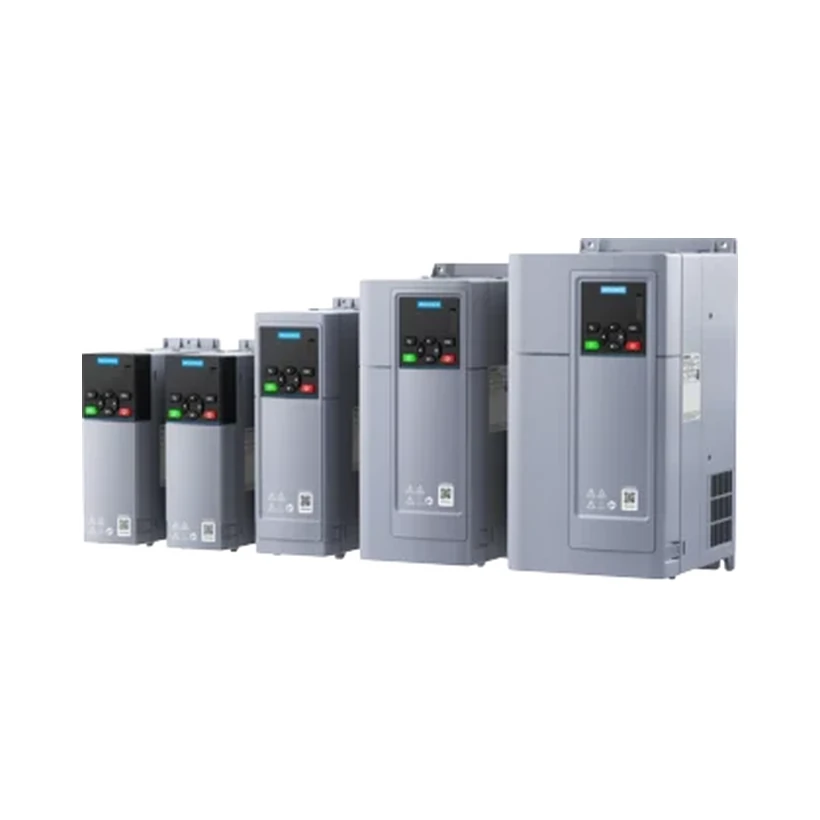

MD630-INT

General-purpose drive

MD500

High-performance vector drive

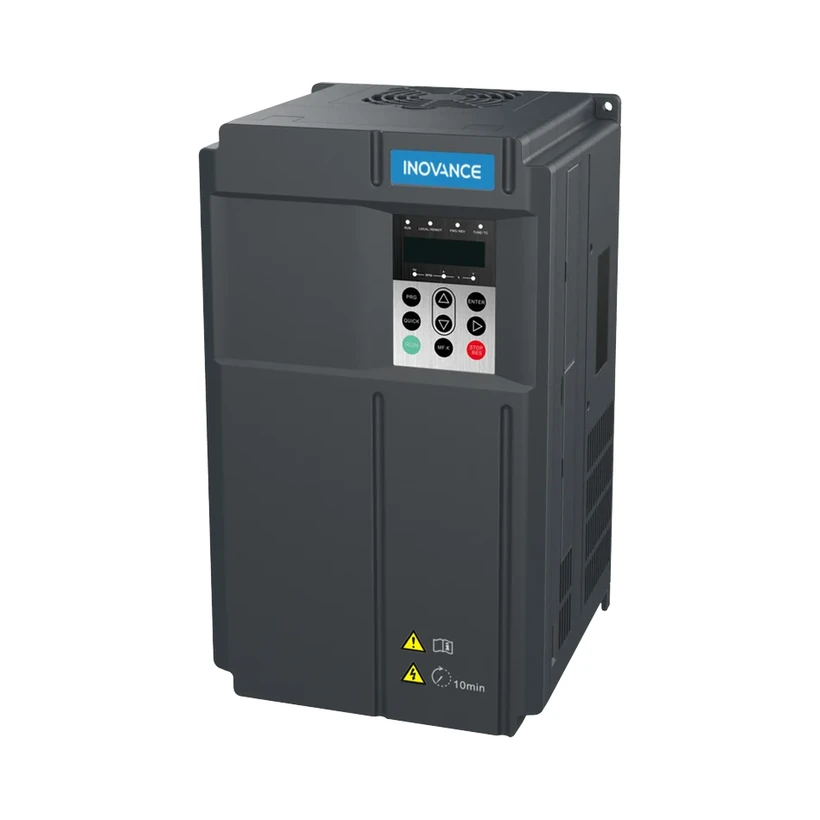

MD500-PLUS

High-performance universal drive

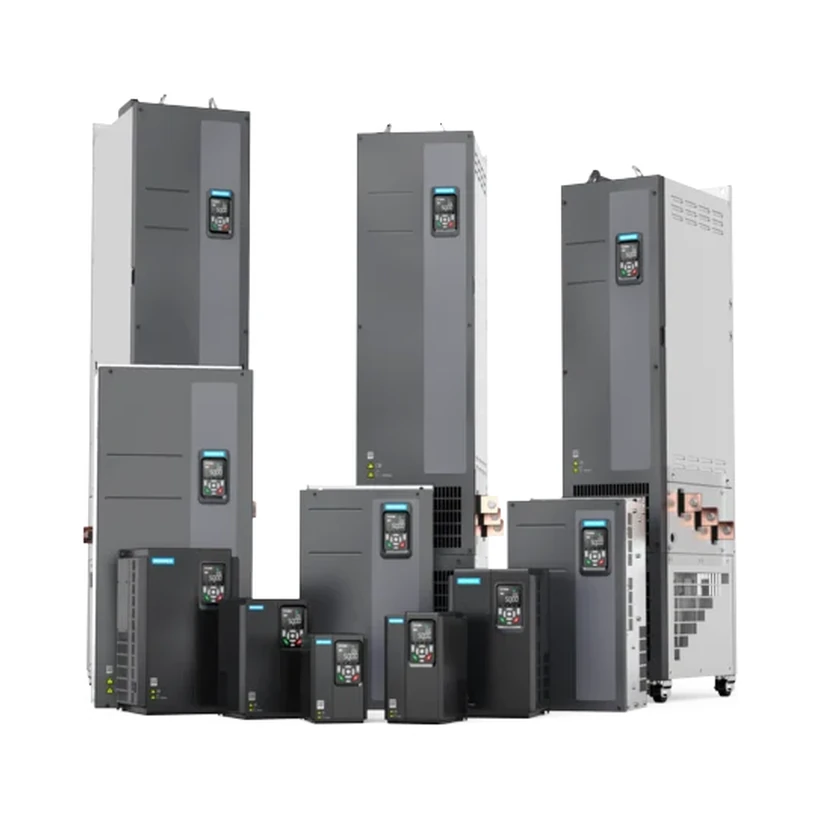

MD520

High-performance universal drive

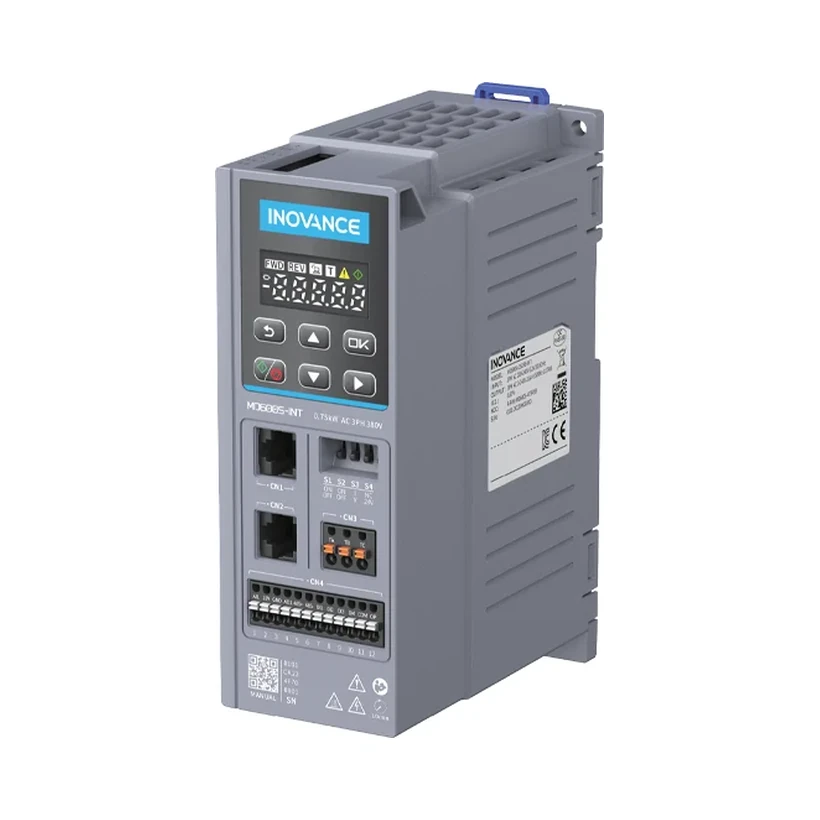

MD600

Compact drive with unified motor control

Inovance · Multidrive

AC Multidrives

Modular drive systems with a shared DC bus for multi-motor machines and multi-section process lines.

Get a quote

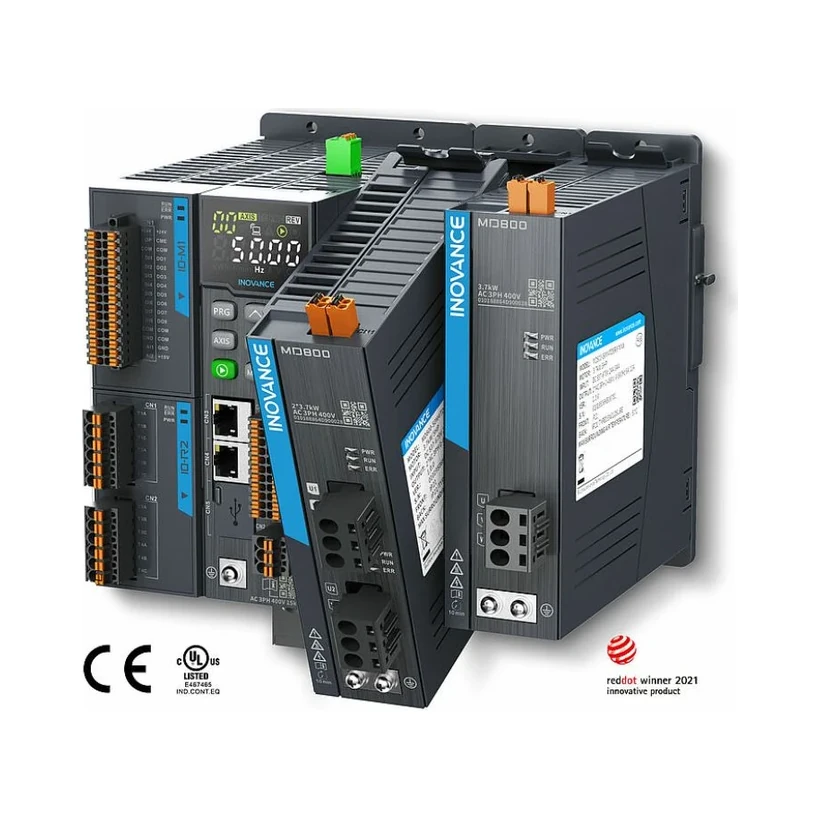

MD800

Compact AC multidrive for OEM machine builders

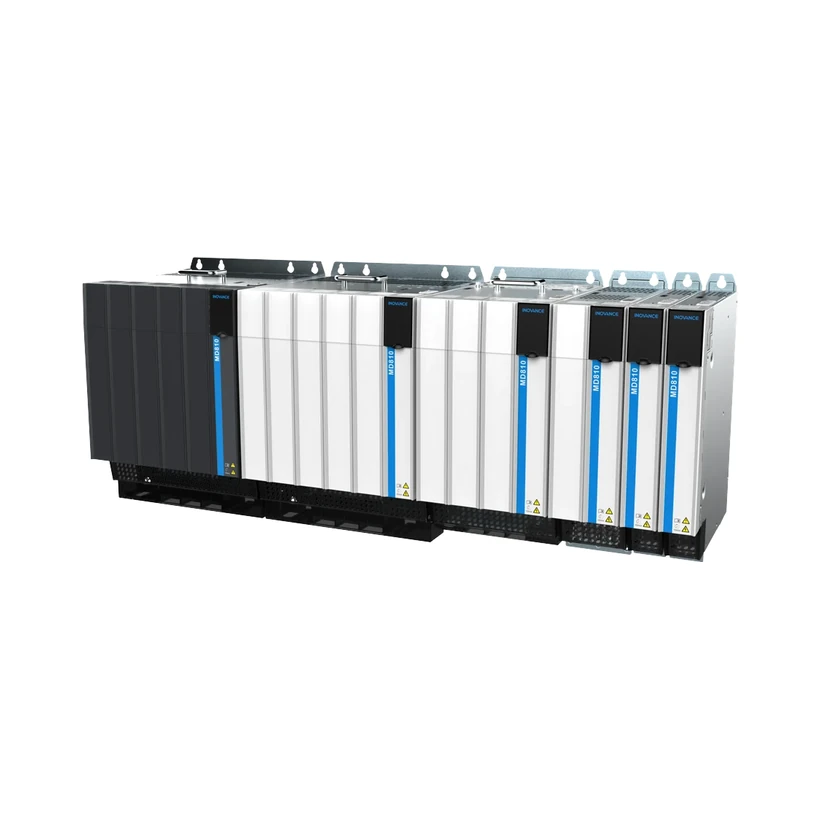

MD810

Modular multidrive for multi-section applications

Inovance · Servo

Servo Drives & Motors

Servo drives and motors from 0.05 kW to 110 kW for packaging, printing, electronics, machine tools and handling.

Get a quote

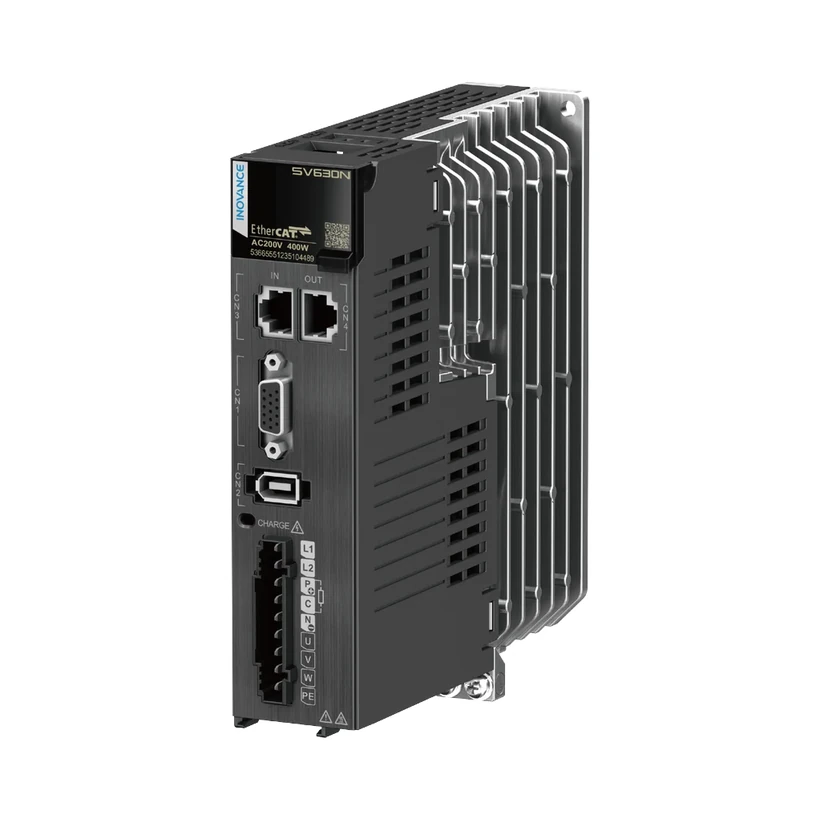

SV630N

SV630-INT economy servo drive

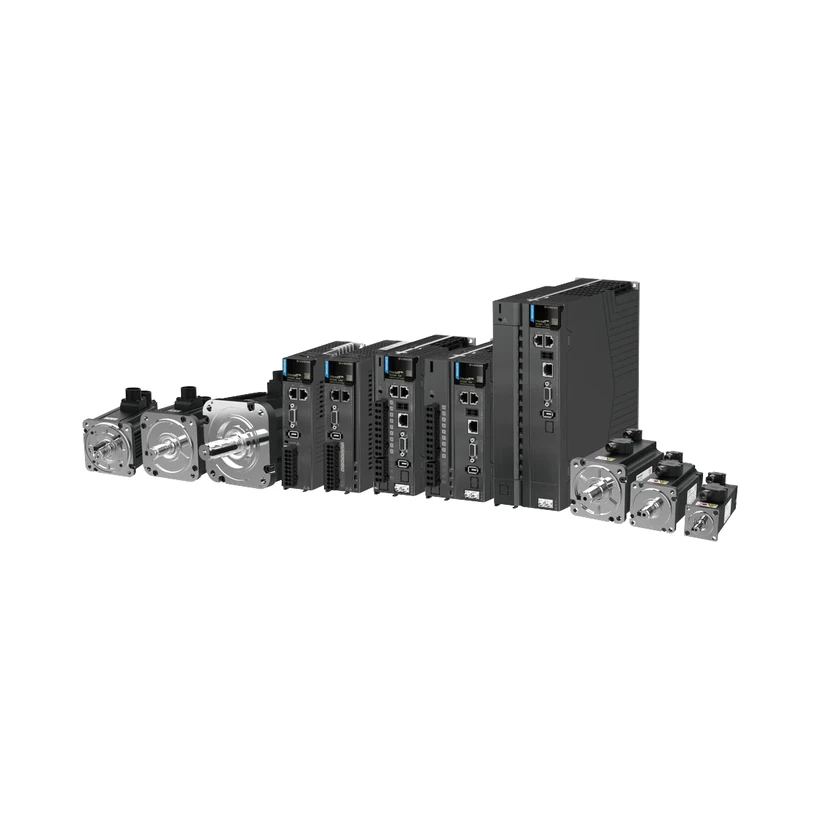

SV660N

High dynamic performance, compact footprint

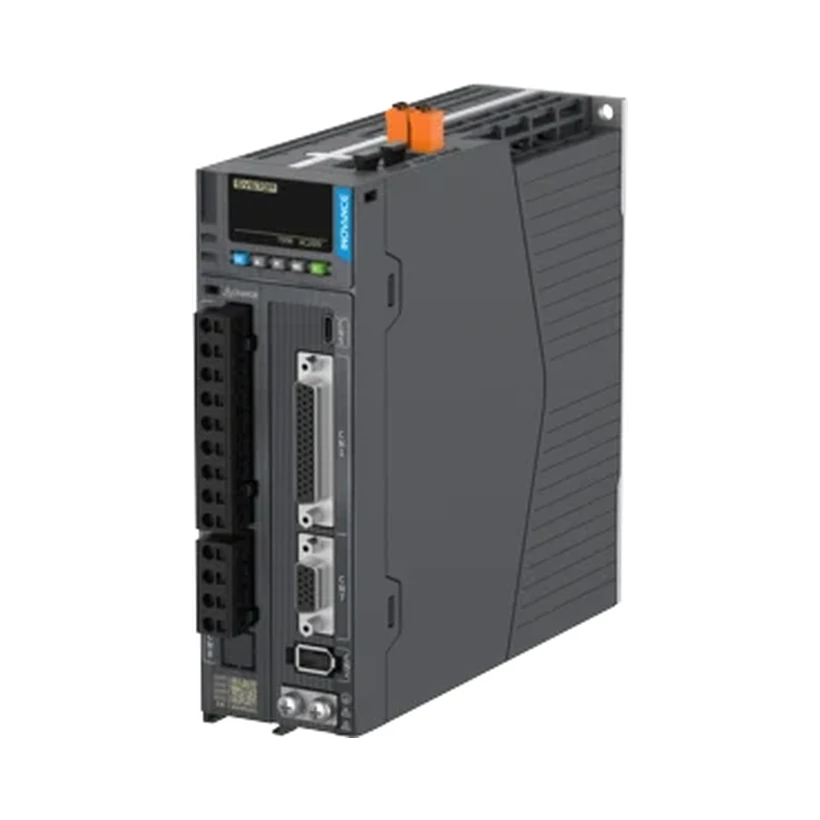

SV670P

Single-axis pulse servo drive

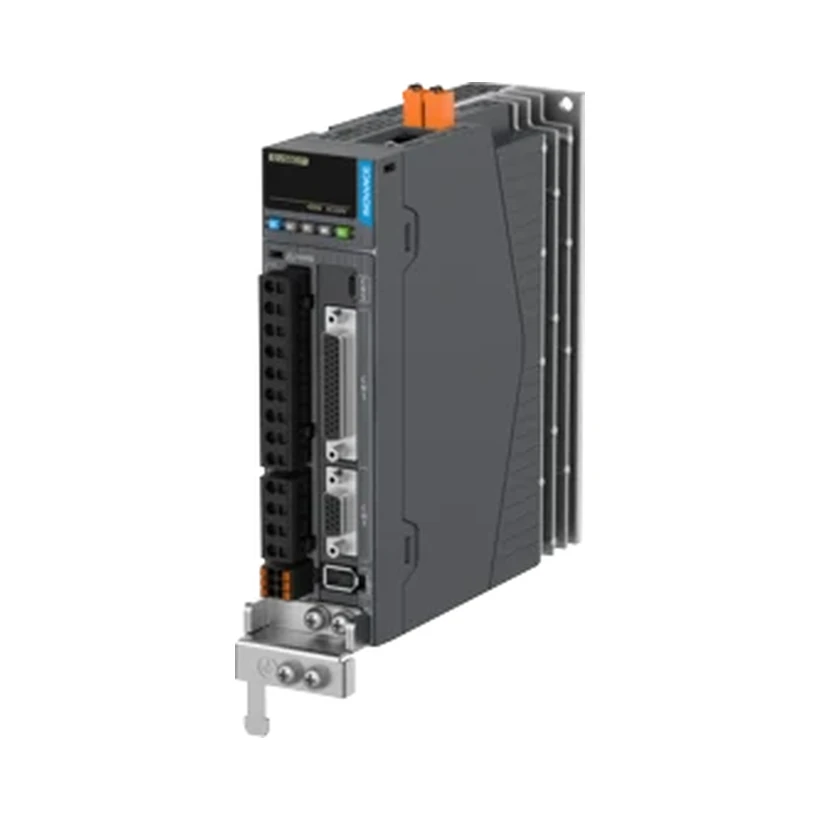

SV680P/N

Single-axis servo drive with functional safety

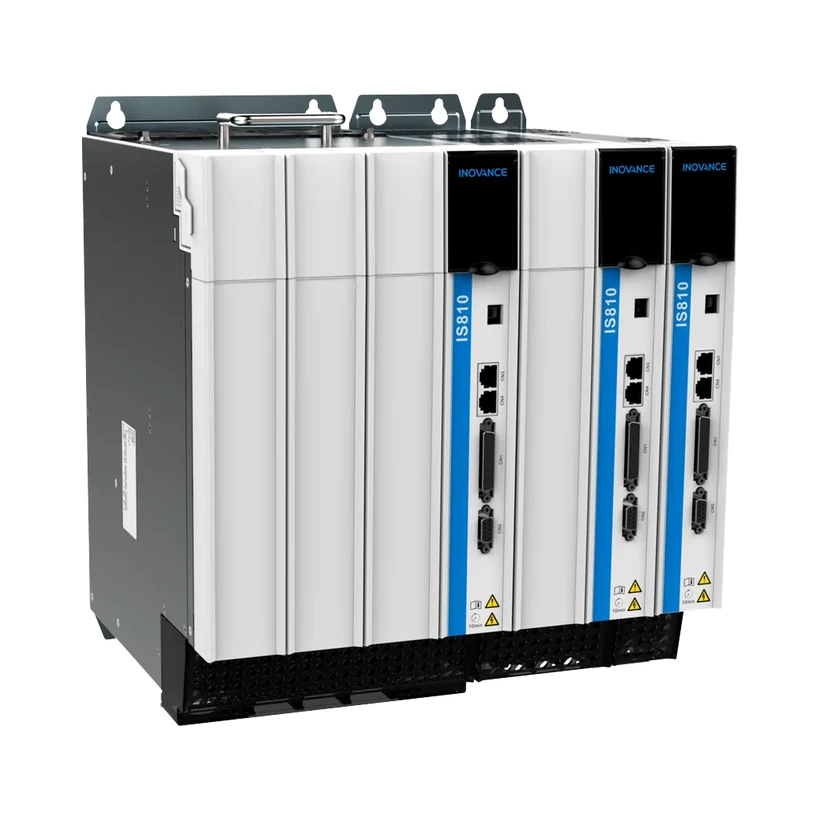

IS810N

Multi-axis servo drive platform

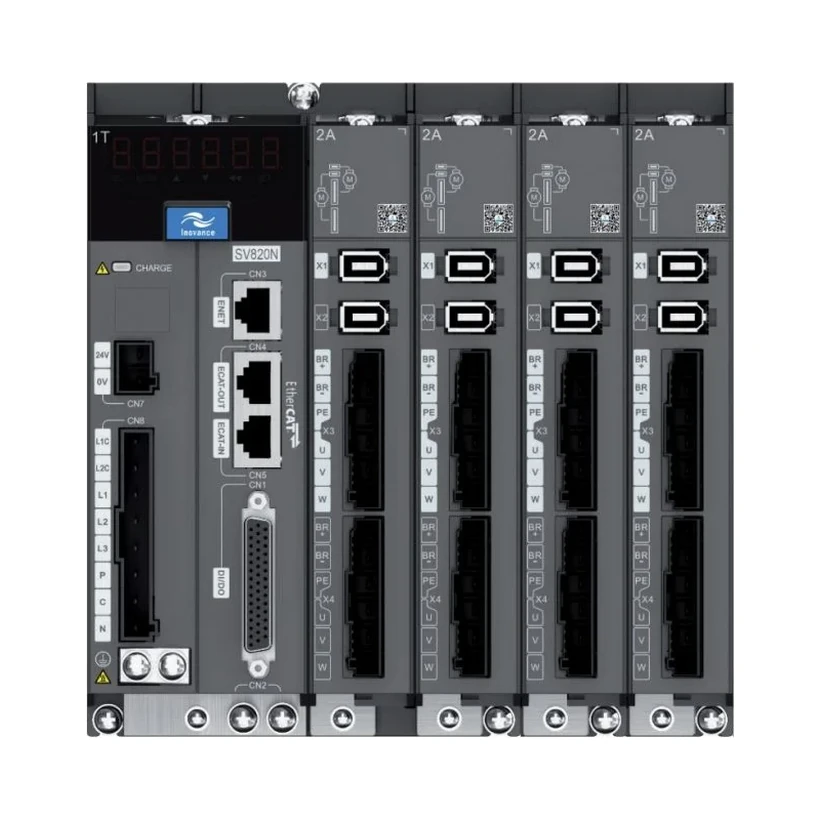

SV820N

Multi-axis servo platform

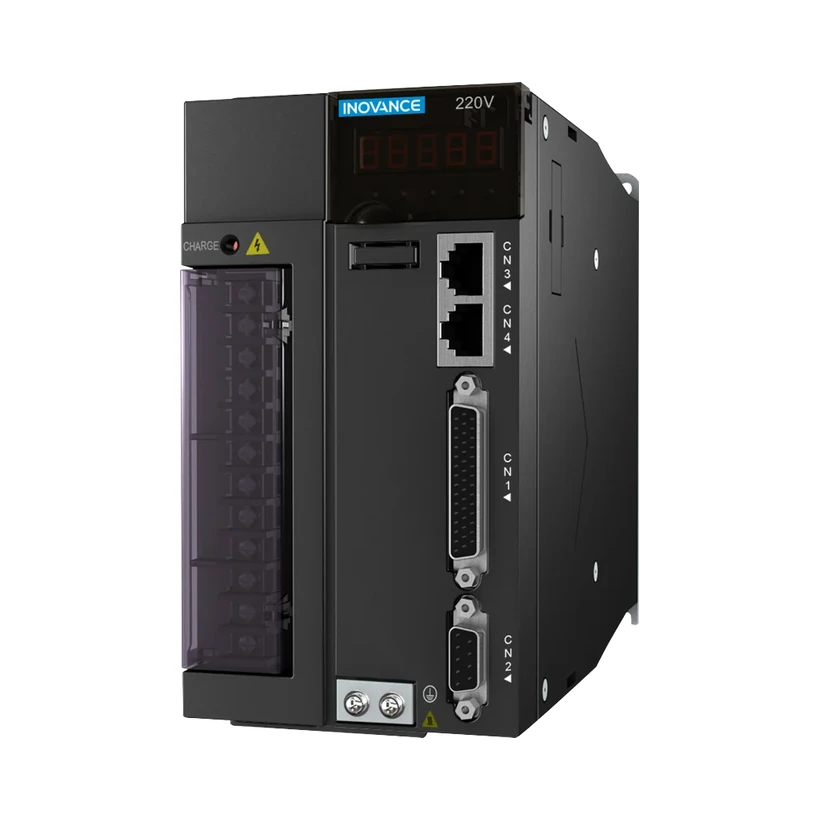

IS620N

EtherCAT servo drive

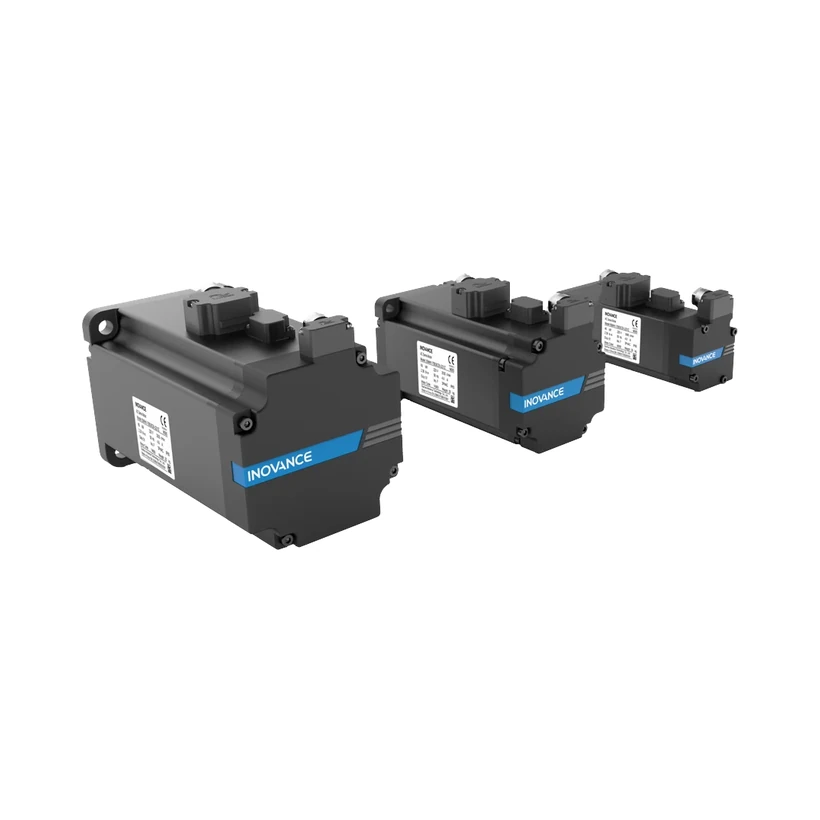

MS1 motors

Highly dynamic servo motors

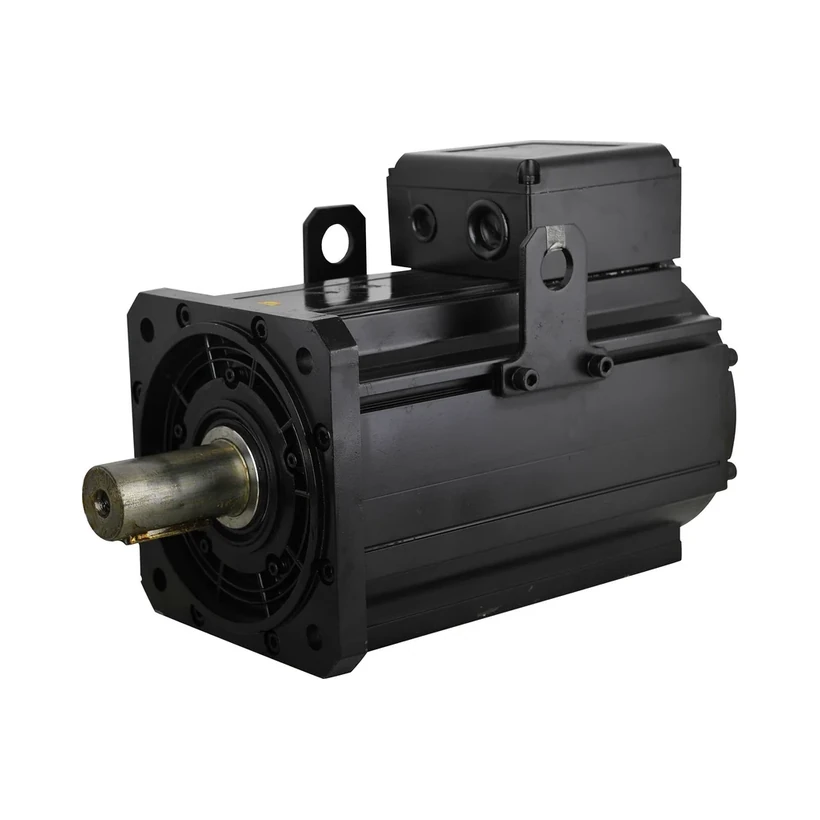

ISMG motors

Servo motors for servo-pump systems

Inovance · PLC

PLCs

Controllers for machine logic and process control, from economical all-in-one PLCs to high-performance EtherCAT PLCs.

Get a quote

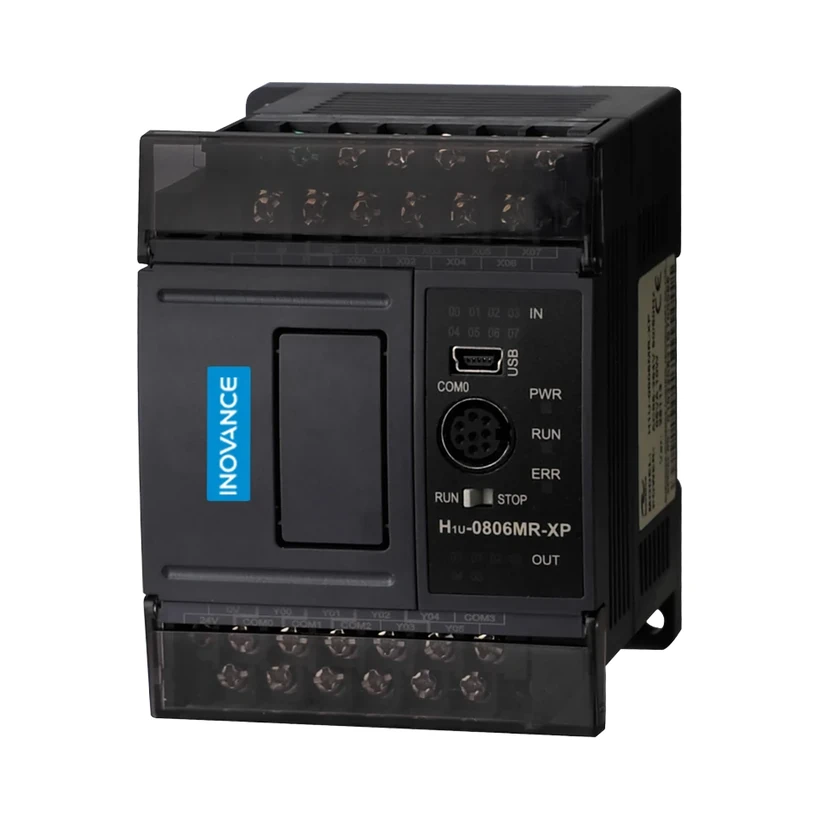

H1U

Economical, simple to use

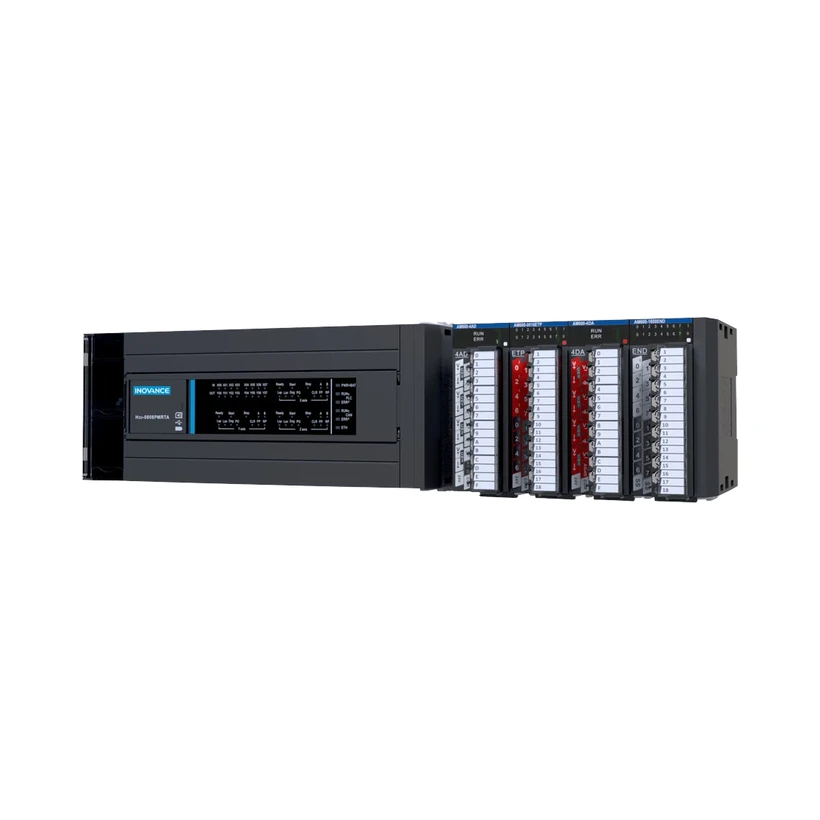

H3U

High-performance PLC with motion control

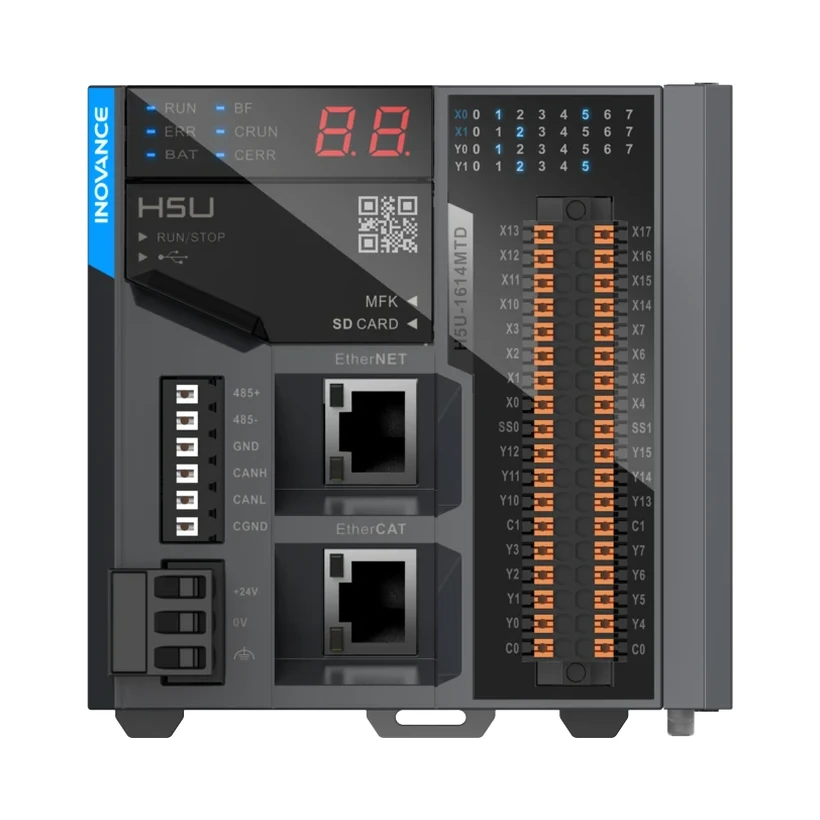

H5U

High-performance compact EtherCAT PLC

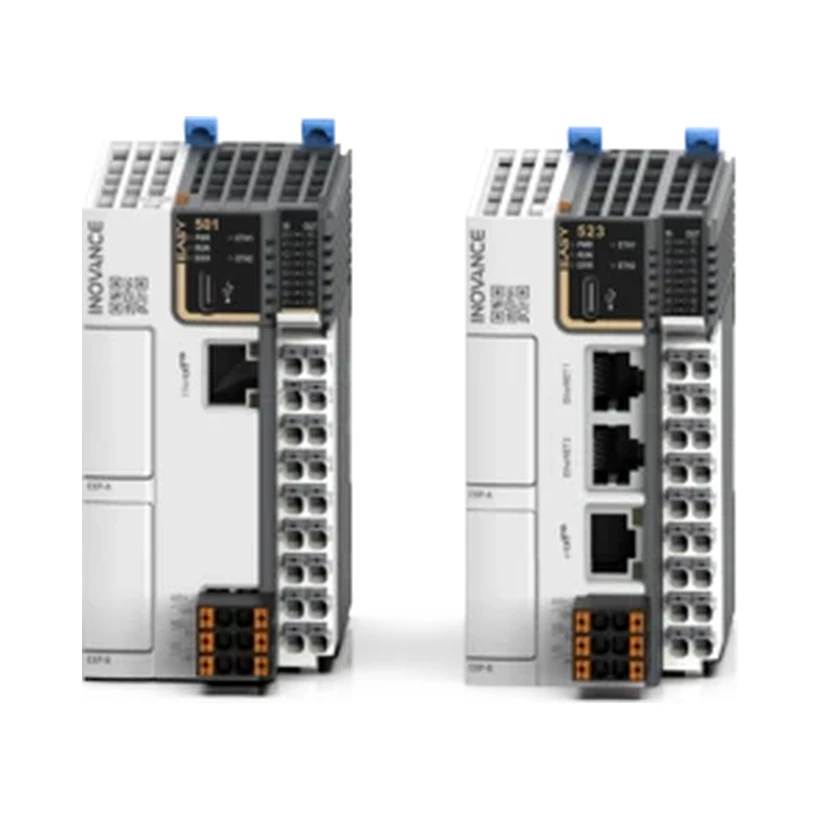

Easy series

Complete EtherCAT PLC range, basic to motion

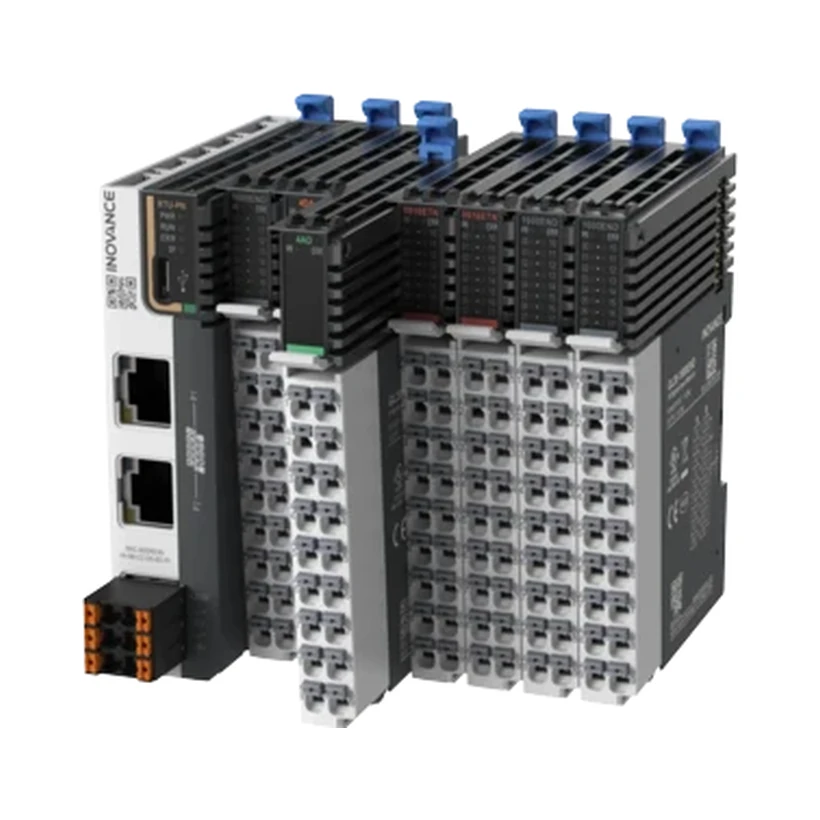

GL20 I/O

Compact expansion I/O modules

Inovance · HMI

HMIs

Operator touch panels that connect easily to PLCs, drives and controllers.

Get a quote

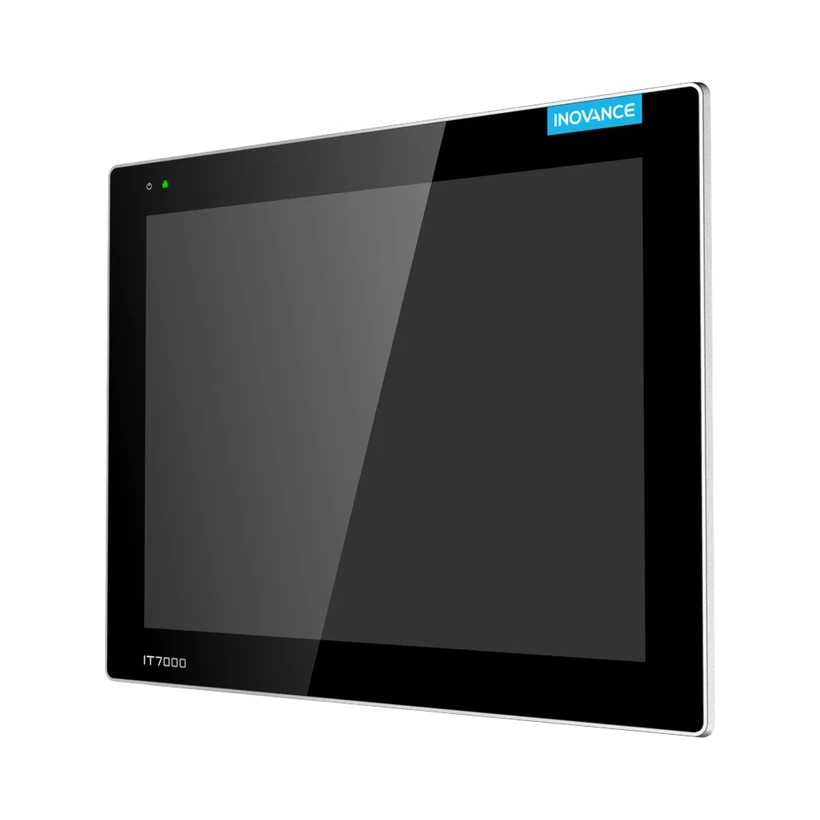

IT7000

High-end touch HMI, 7" to 15"

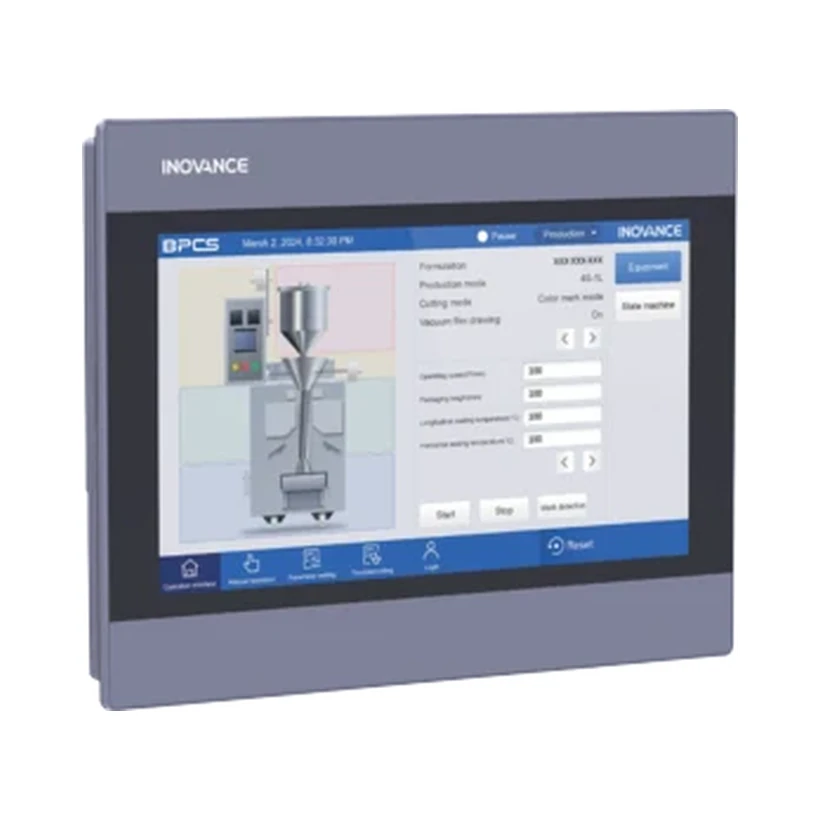

ITS7000

Next-generation high-resolution HMI

Inovance · Motion

Motion Controllers & I/O

Controllers for synchronised multi-axis machines, programmed in CODESYS, with EtherCAT I/O.

Get a quote

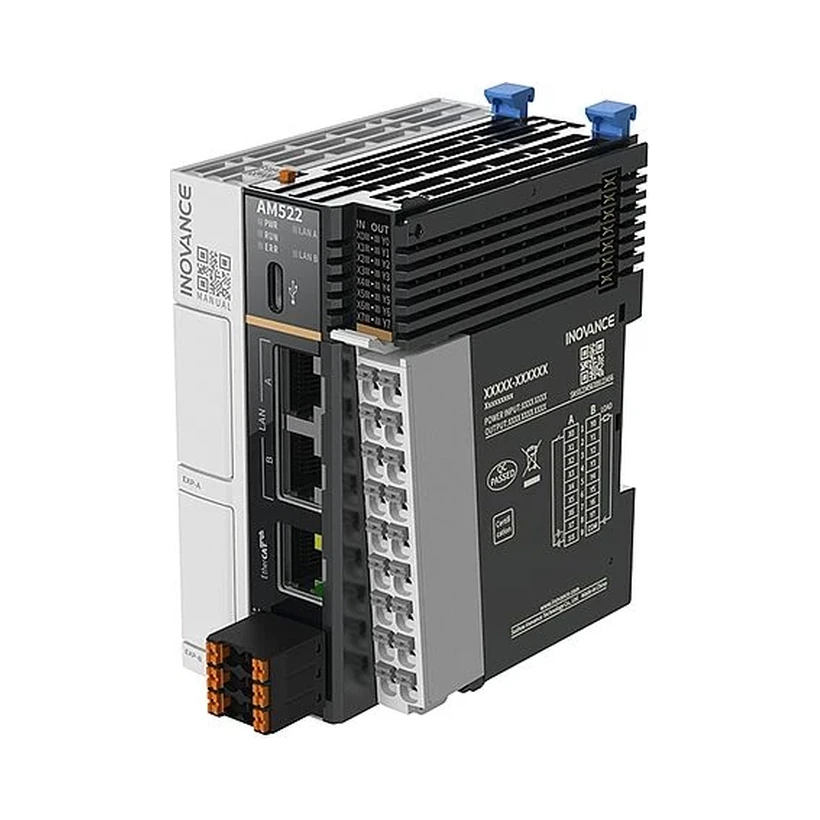

AM521 / AM522

Compact EtherCAT CODESYS motion controllers

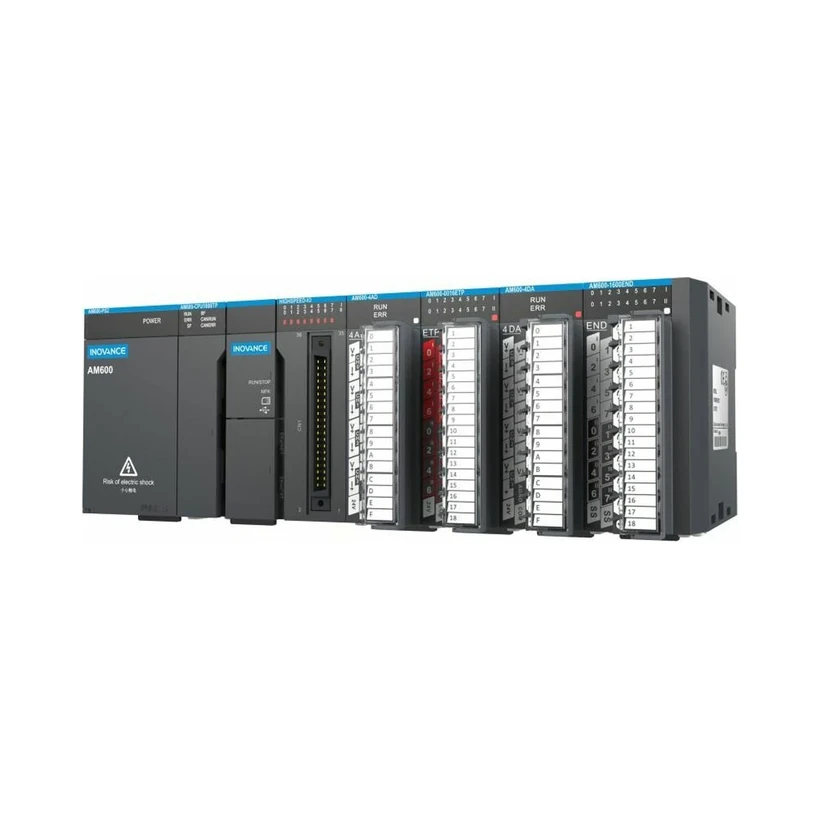

AM600

Centralised motion controller with built-in PLC

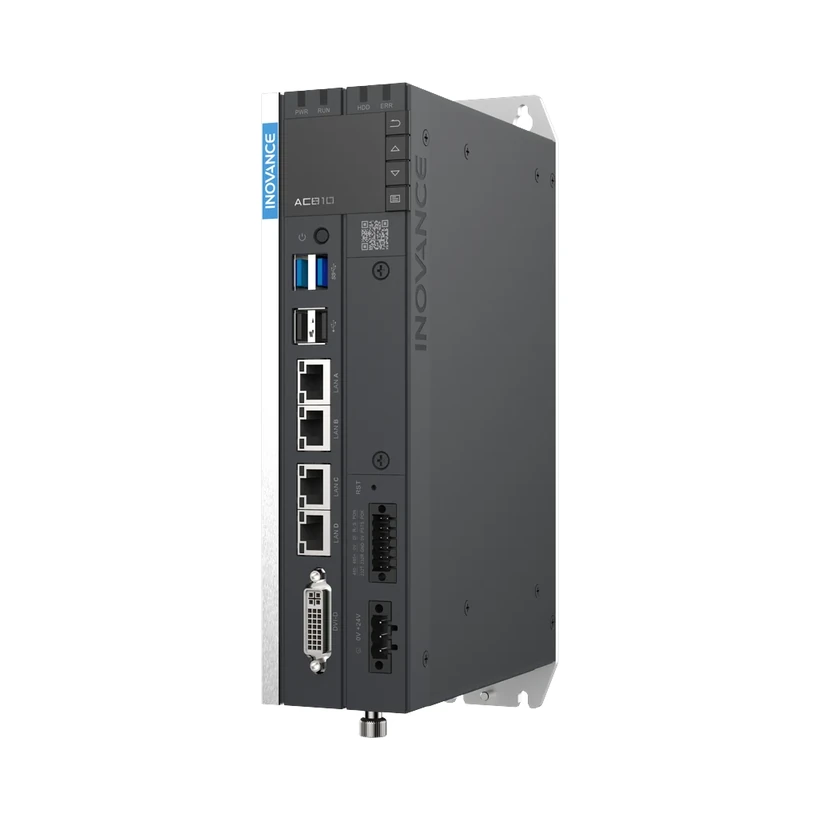

AC8XX

Intelligent machine controller (IPC)

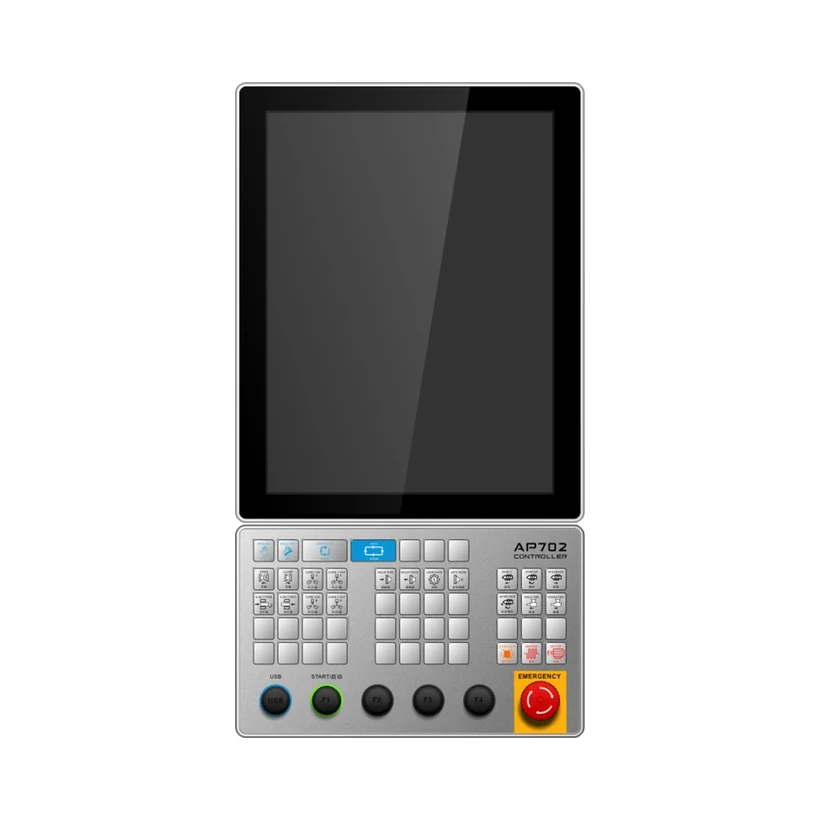

AP7XX

Controller and display in one unit

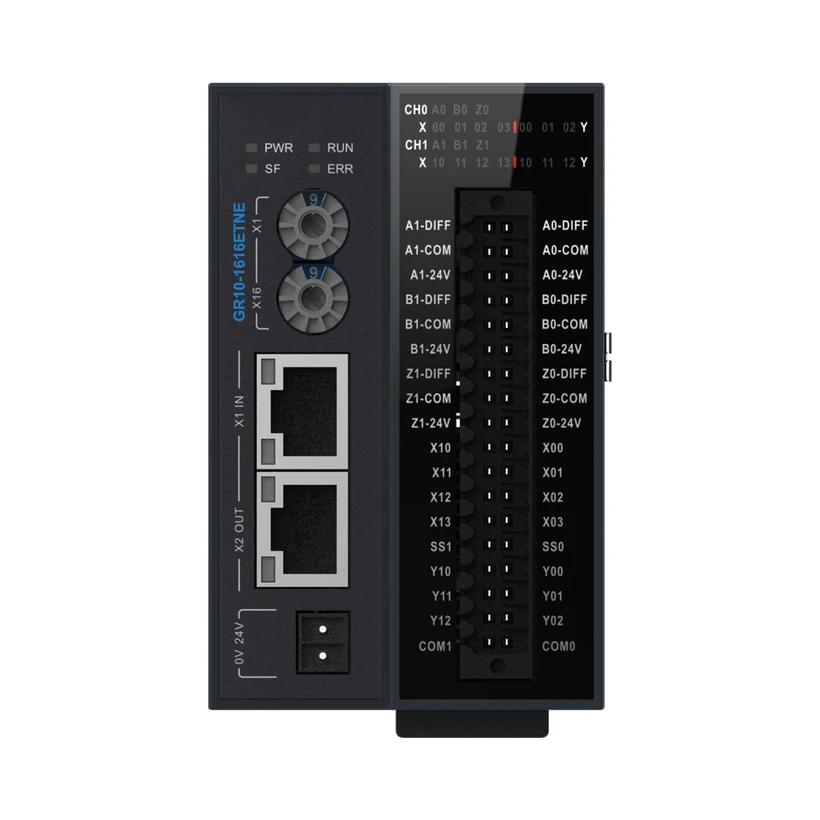

GL10 / GR10

EtherCAT I/O modules

Inovance · Robotics

Industrial Robots

SCARA robots from 4 to 60 kg and 6-axis robots from 4 to 25 kg, with IRCB501 controllers and teach pendants, for assembly, handling, machine tending, welding and more.

Get a quote

SCARA robots

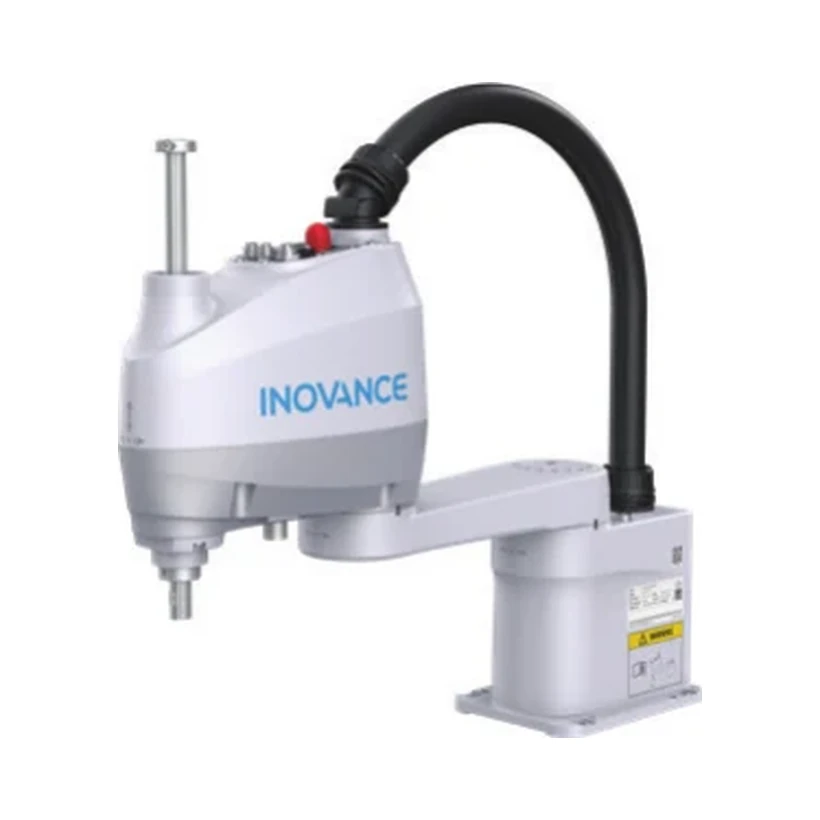

IR-S4

SCARA · 4 kg · 400 mm reach

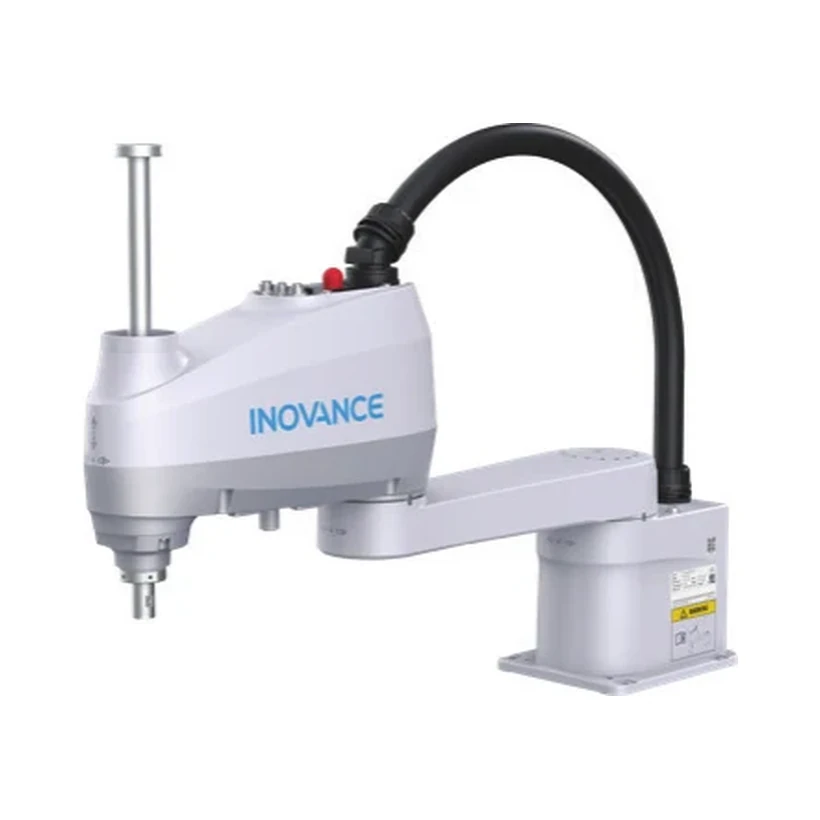

IR-S7

SCARA · 7 kg · 500–700 mm reach

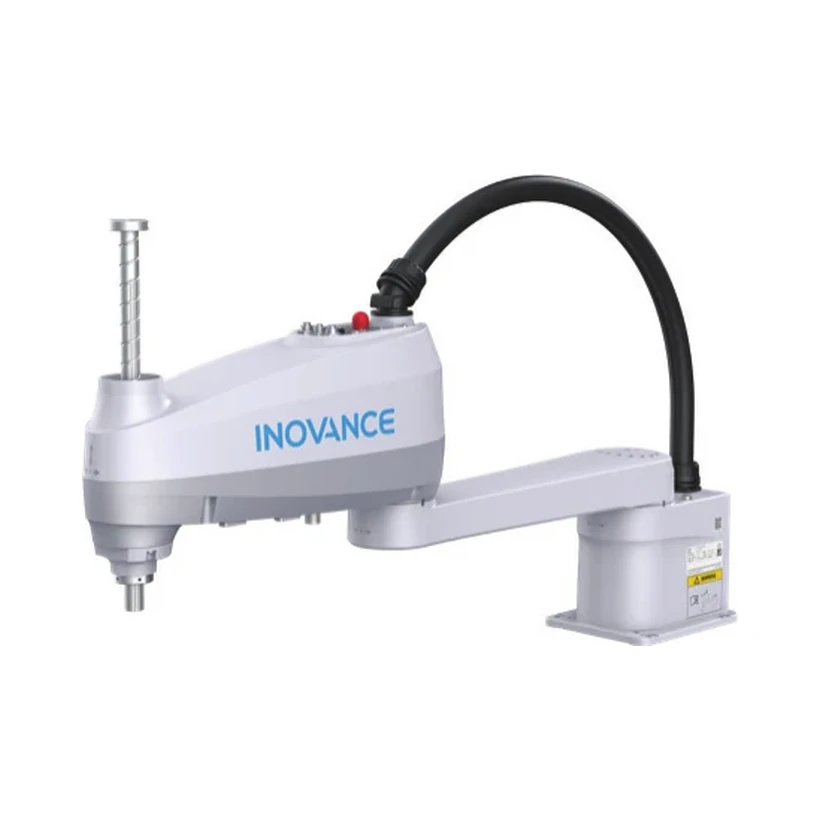

IR-S10

SCARA · 10 kg · 600–800 mm reach

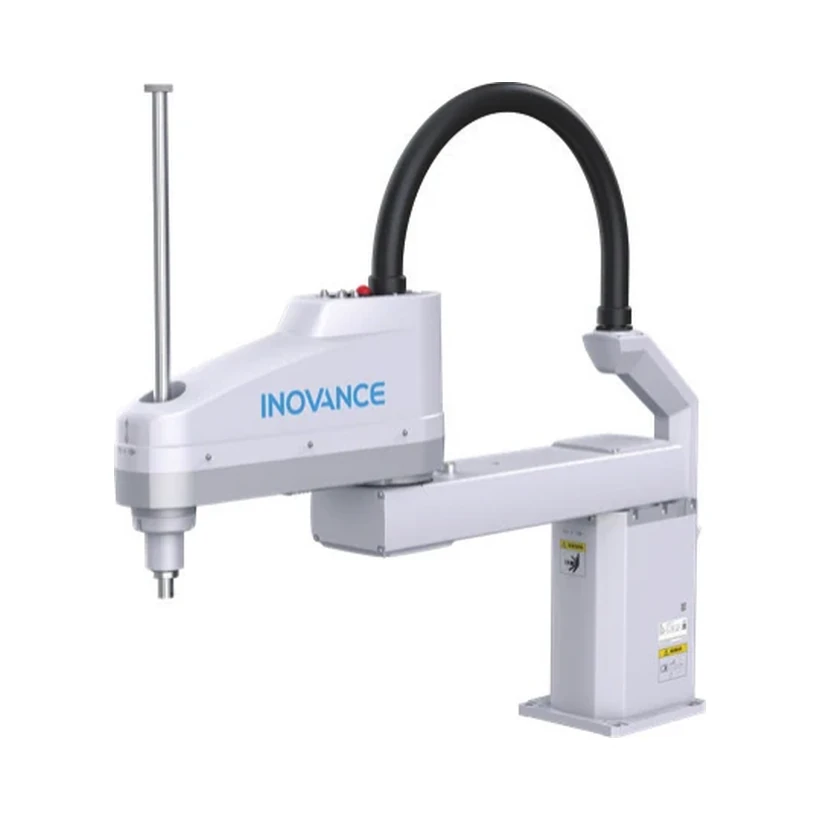

IR-S25

SCARA · 25 kg · 800–1200 mm reach

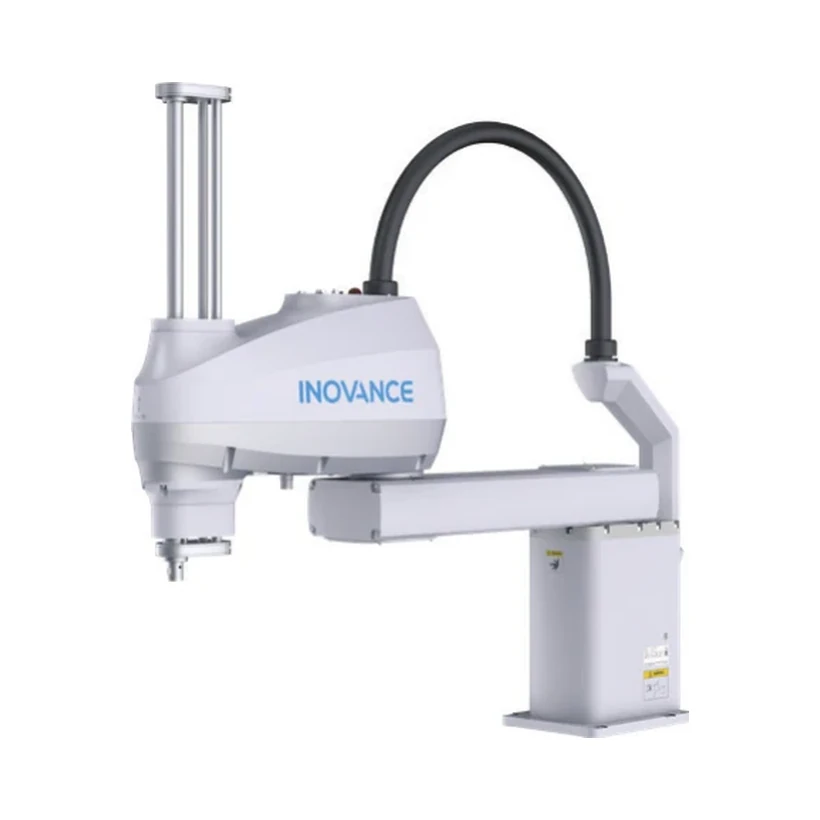

IR-S35

SCARA · 35 kg · 800–1200 mm reach

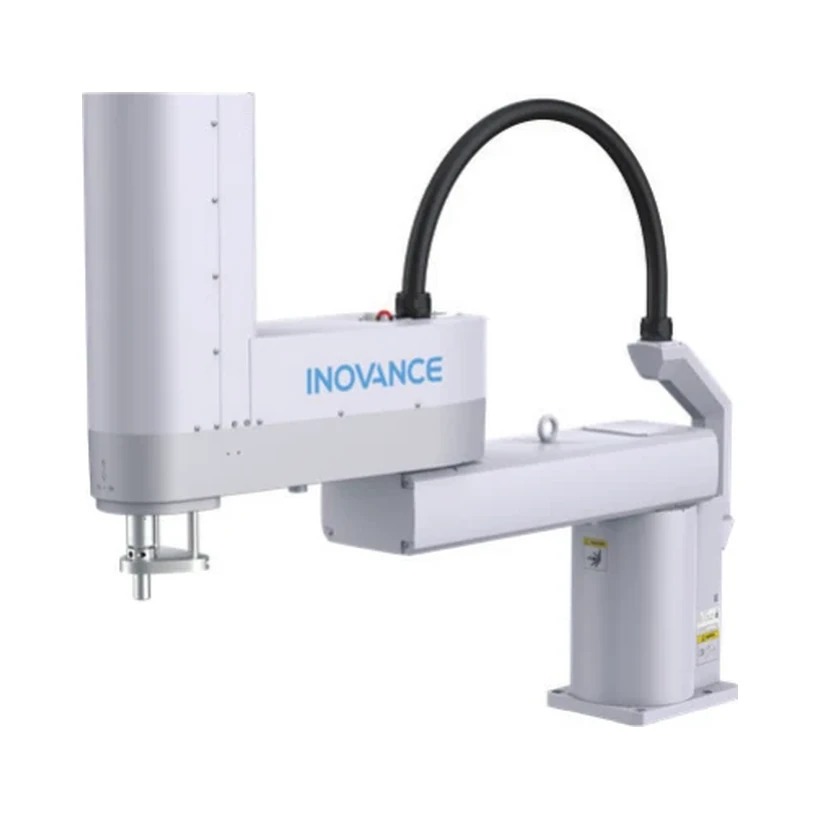

IR-S60 / GS60

SCARA · 60 kg · 1200 mm reach

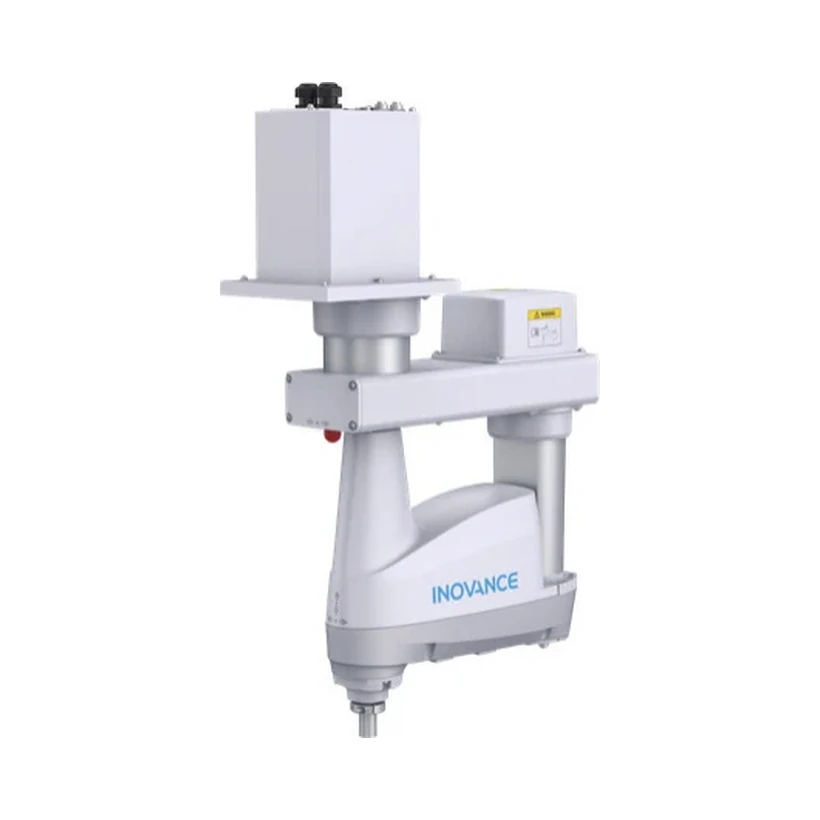

IR-TS4 / TS5

Inverted SCARA · 4–5 kg

6-axis robots

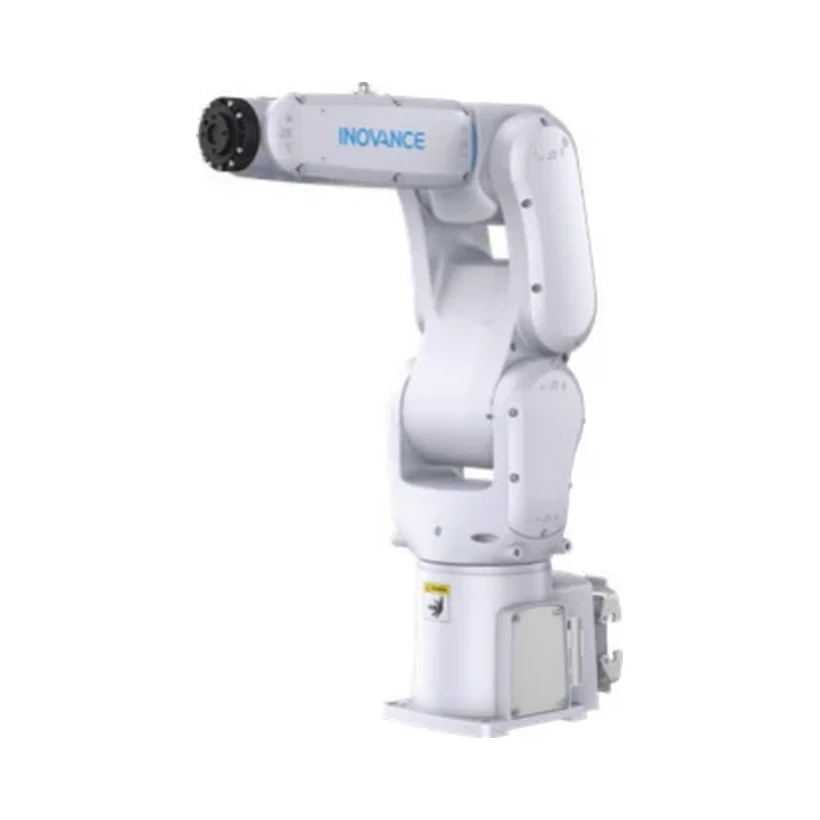

IR-R4 / R4H

6-axis · 4 kg · 546–561 mm reach

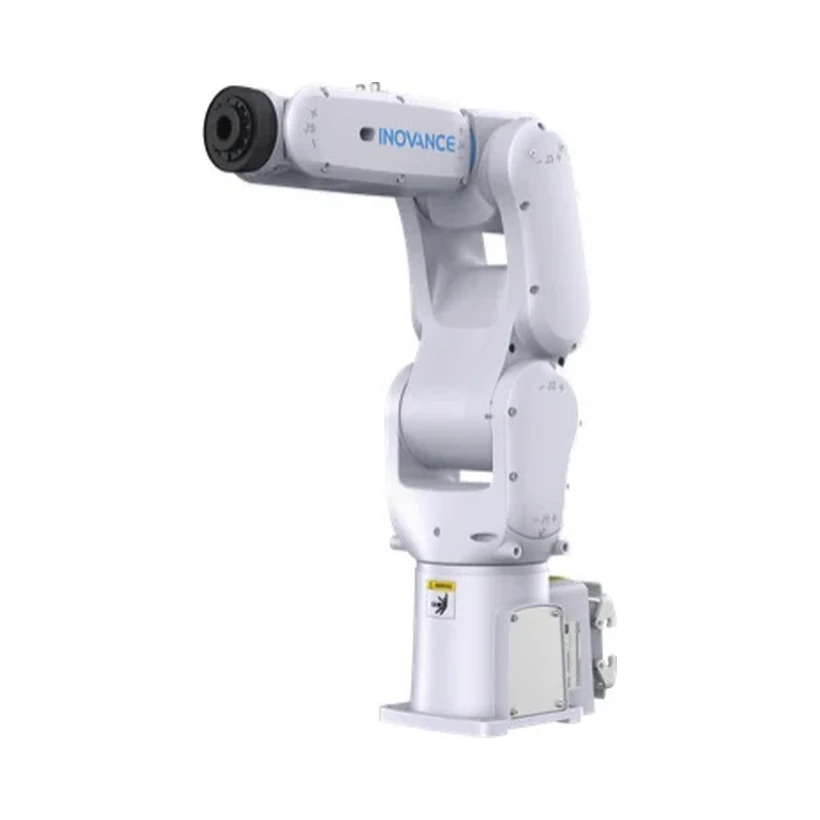

IR-R7H

6-axis · 7 kg · 722–912 mm reach

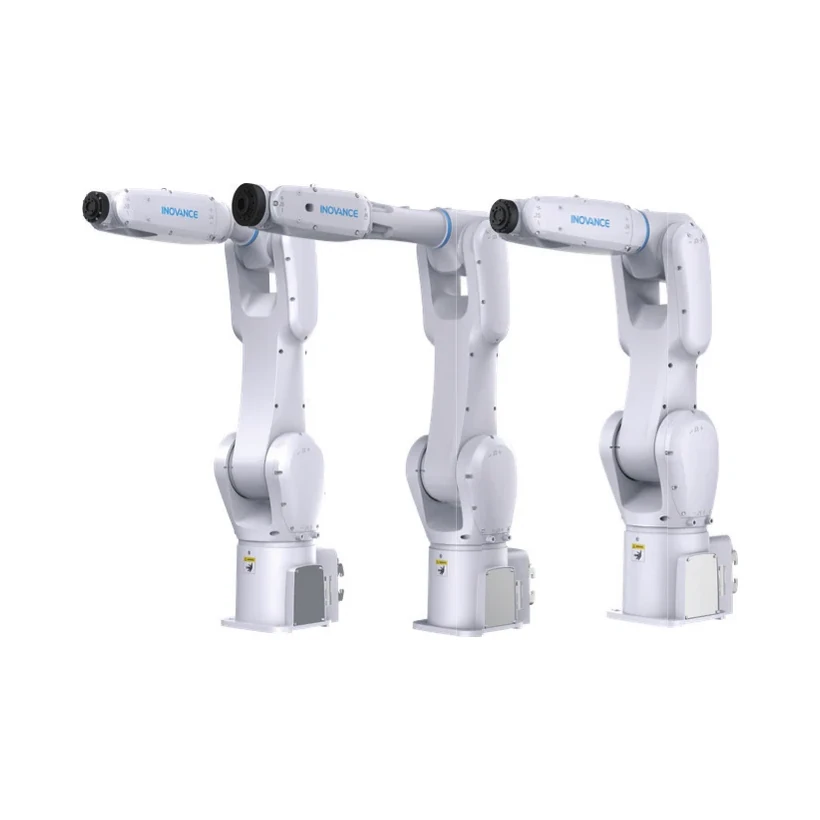

IR-R11

6-axis · 10–11.3 kg · 902–1201 mm reach

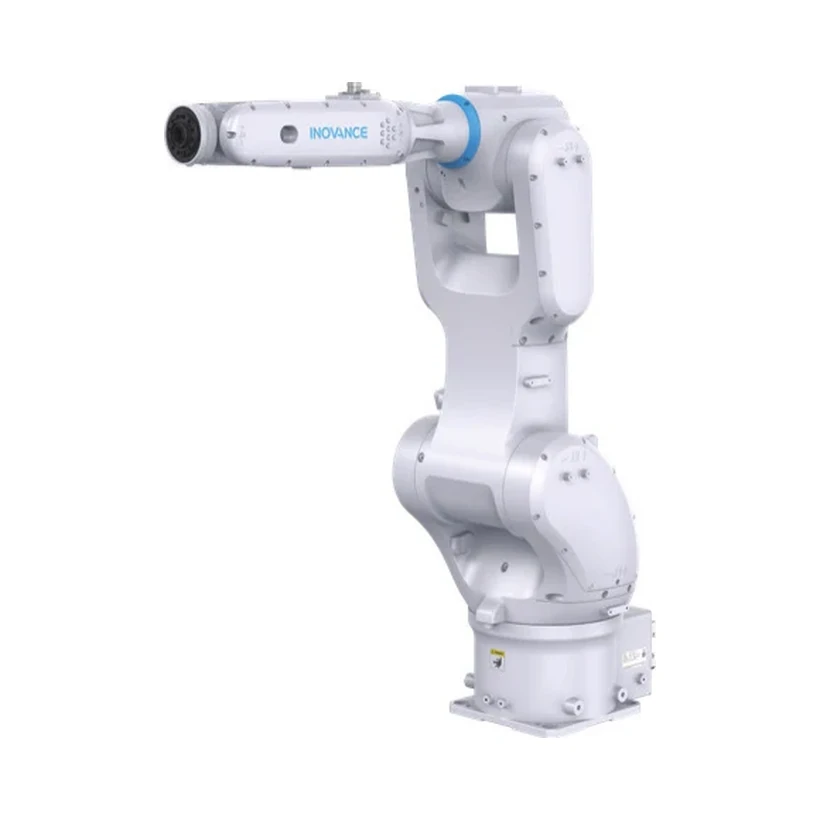

IR-R15H

6-axis · 15–20 kg · 1218–1455 mm reach

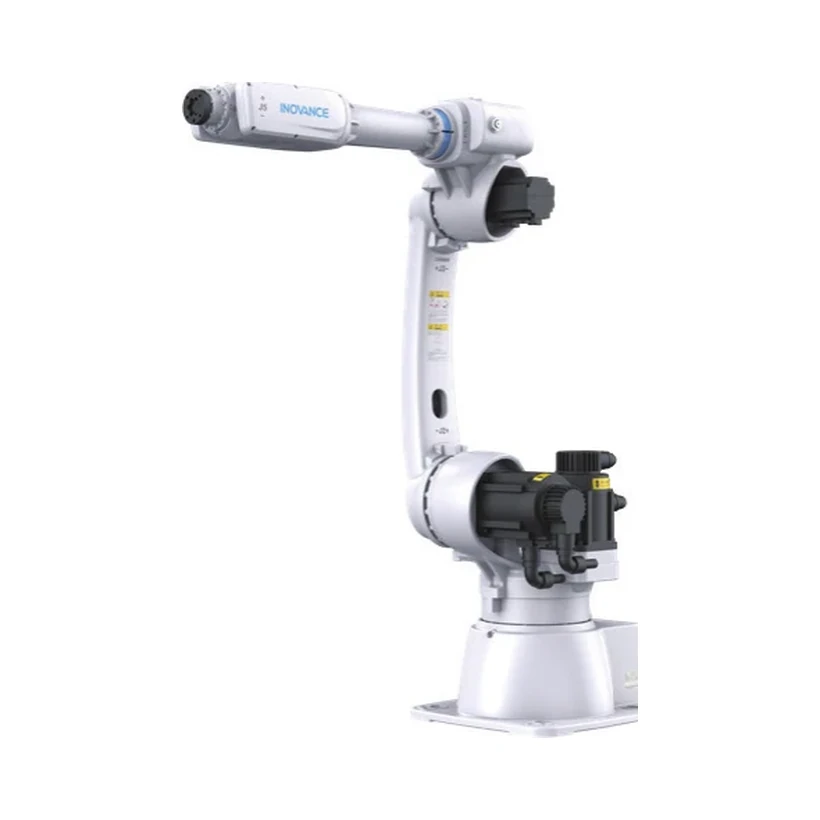

IR-R10

6-axis · 10 kg · 1422 mm reach

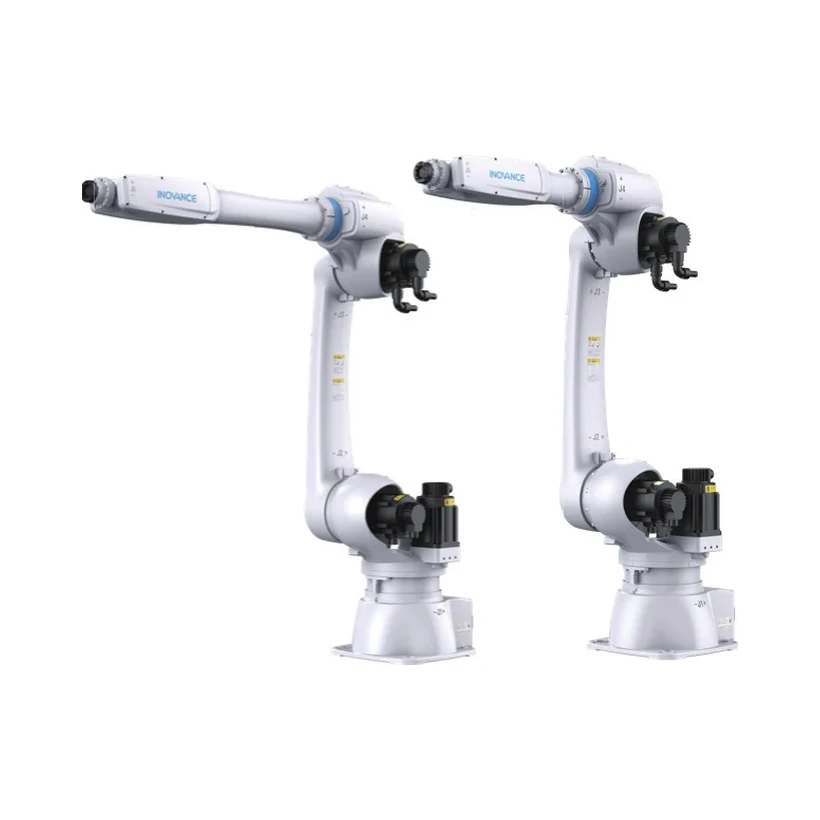

IR-R25

6-axis · 16–25 kg · 1783–2107 mm reach

Robot controller & accessories

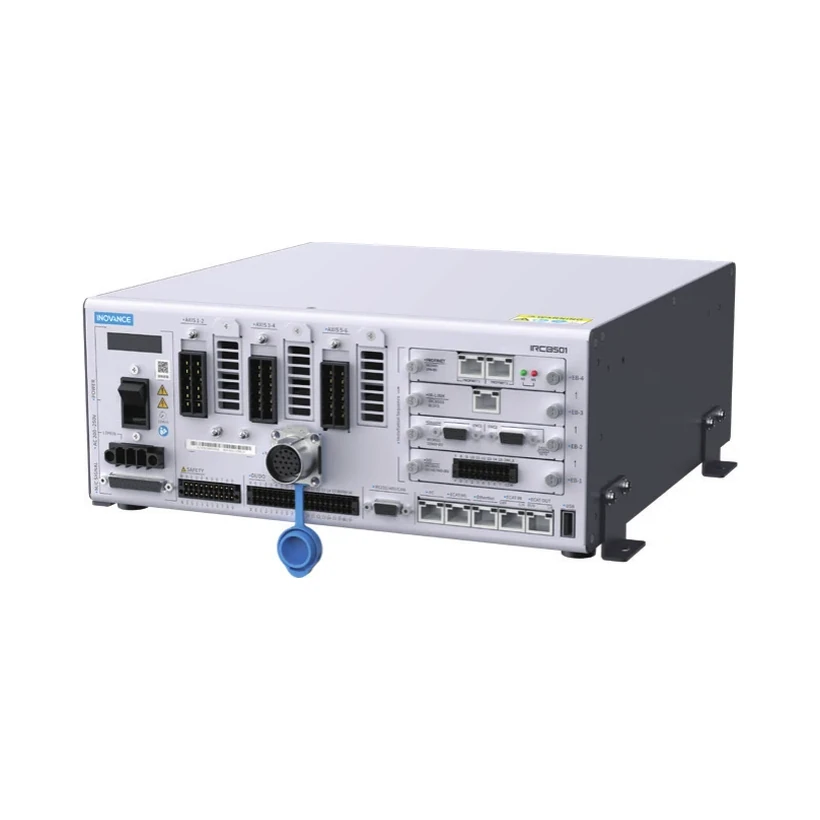

IRCB501

Robot controller for SCARA and 6-axis

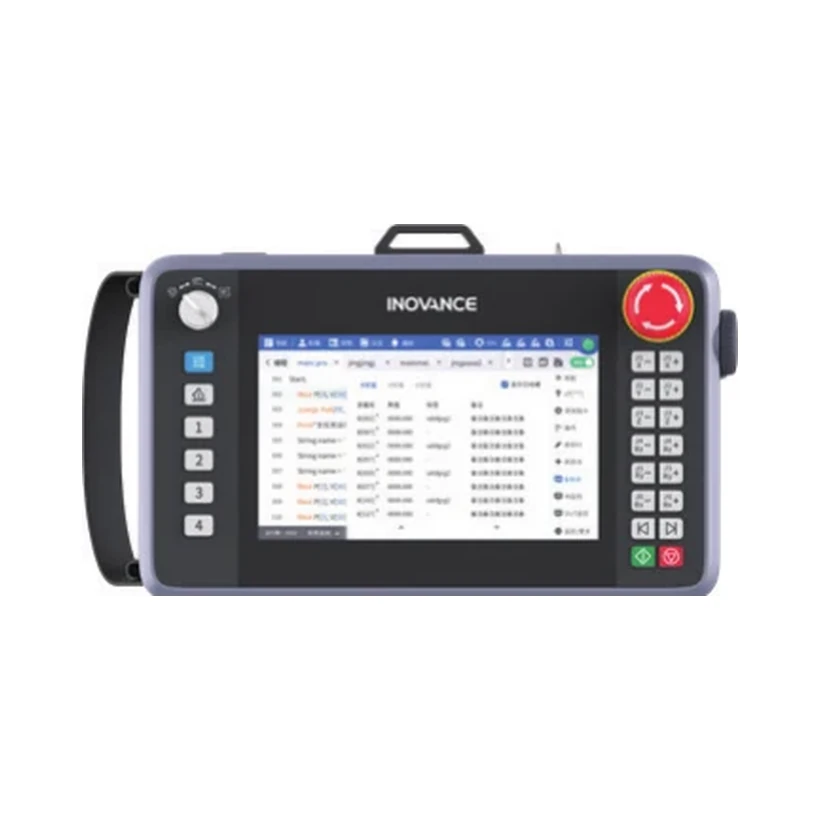

IR-TP200

Teach pendant, 5 m cable, IP54

Also available on request

Medium-voltage AC drives, industry-tailored drives, and elevator & escalator solutions. Ask us for details.

Home / Products / Delta

Delta Electronics · Industrial automation

Delta AC drives, servo systems, PLCs & HMIs

VFDs from 0.1 kW, ASDA-A3 and B3 servo systems, DVP and AS series PLCs, DOP touch-screen HMIs and DT temperature controllers. Selection help, fast quotes and start-up support in Delhi NCR.

MS300 · ME300 · C2000 VFDs
ASDA-A3 / B3 servo
DVP · AS · AH PLCs
DOP HMIs

Get a quote Browse the range ↓

Delta · VFD

AC Drives

Delta AC motor drives, from basic compact drives to high-performance vector and fan/pump drives.

Get a quote

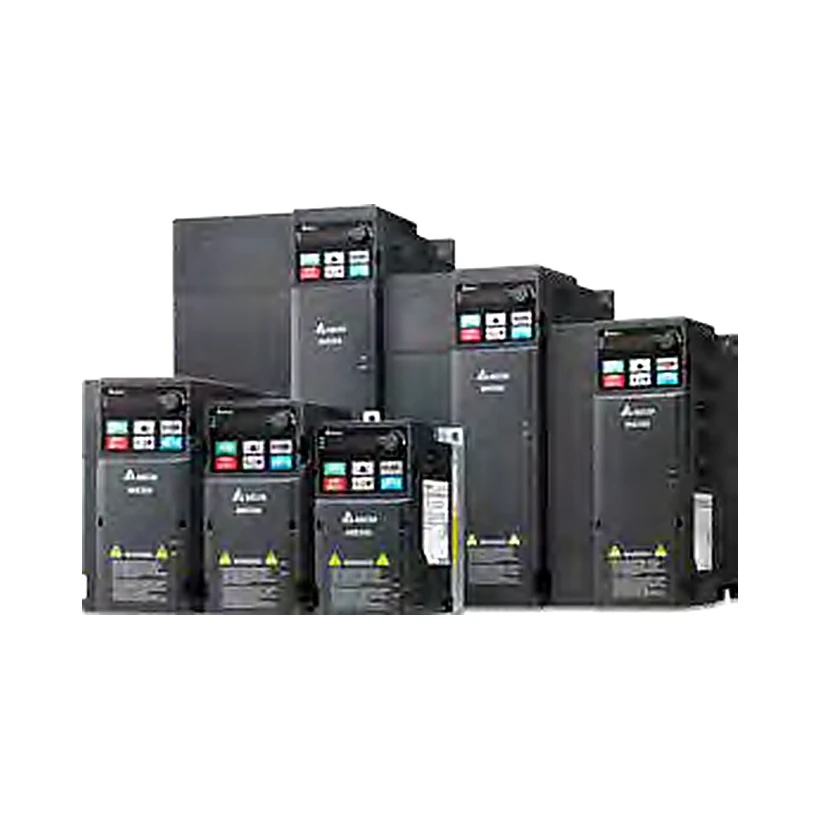

MS300

Standard compact drive

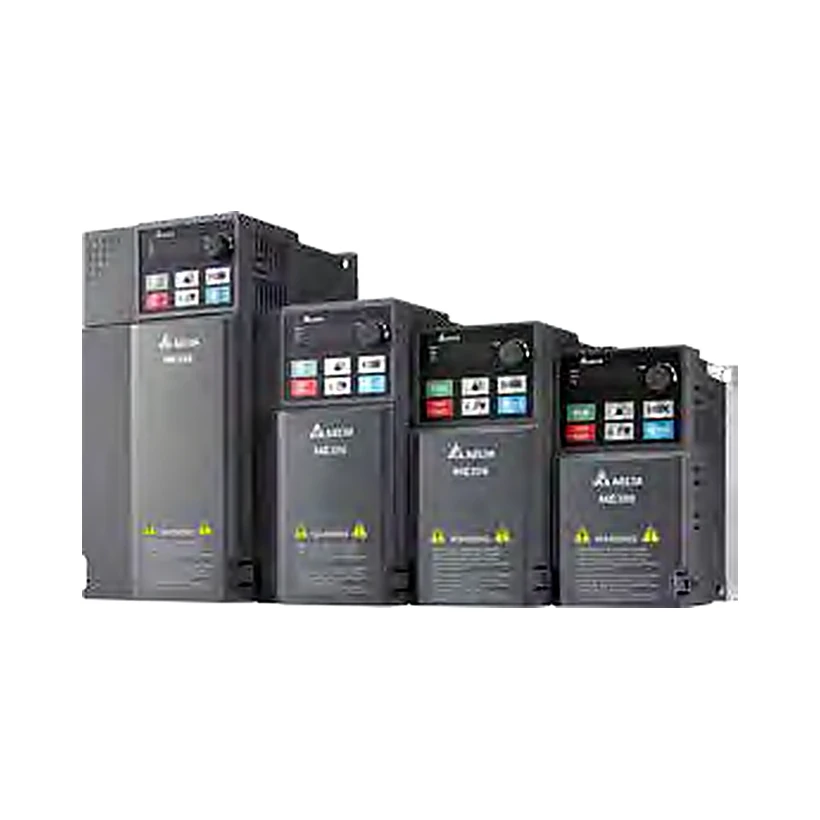

ME300

Basic compact drive

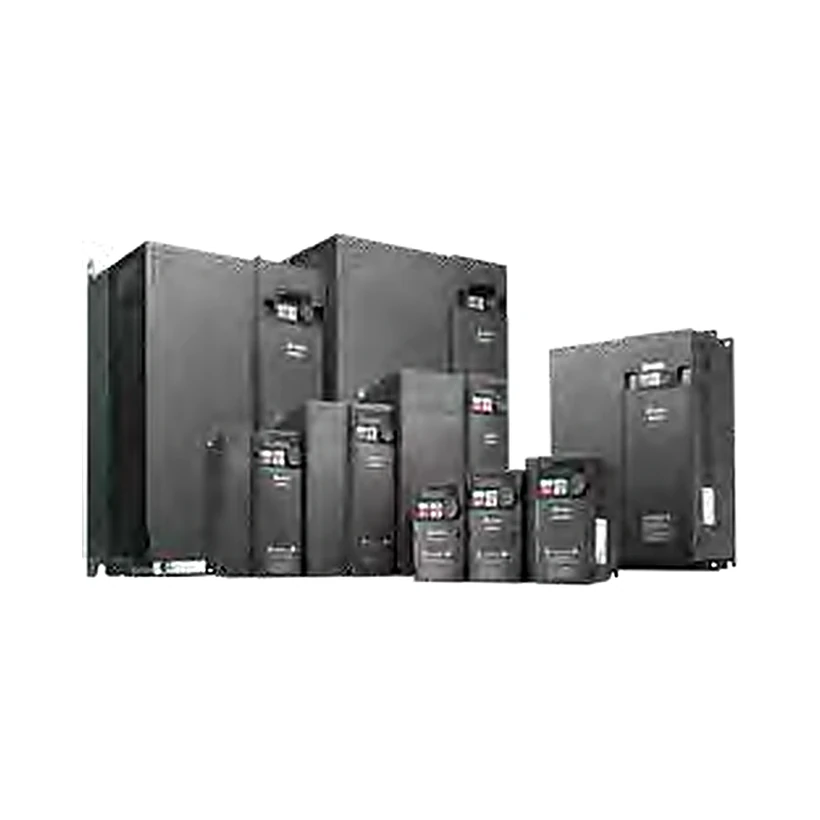

MH300

High-performance compact drive

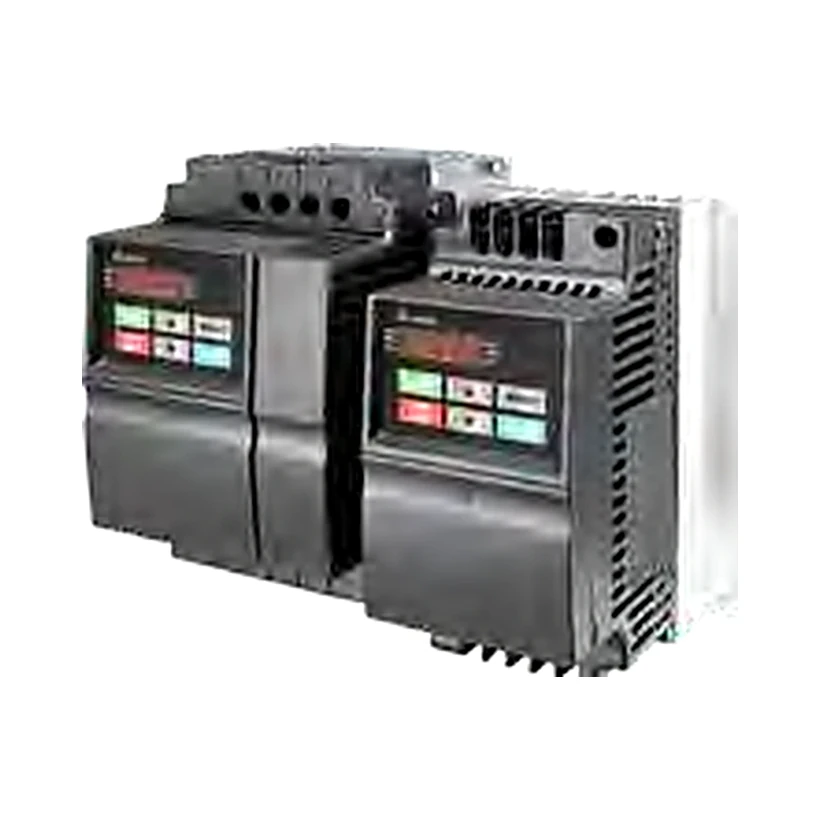

VFD-EL-W

Sensorless vector economical drive

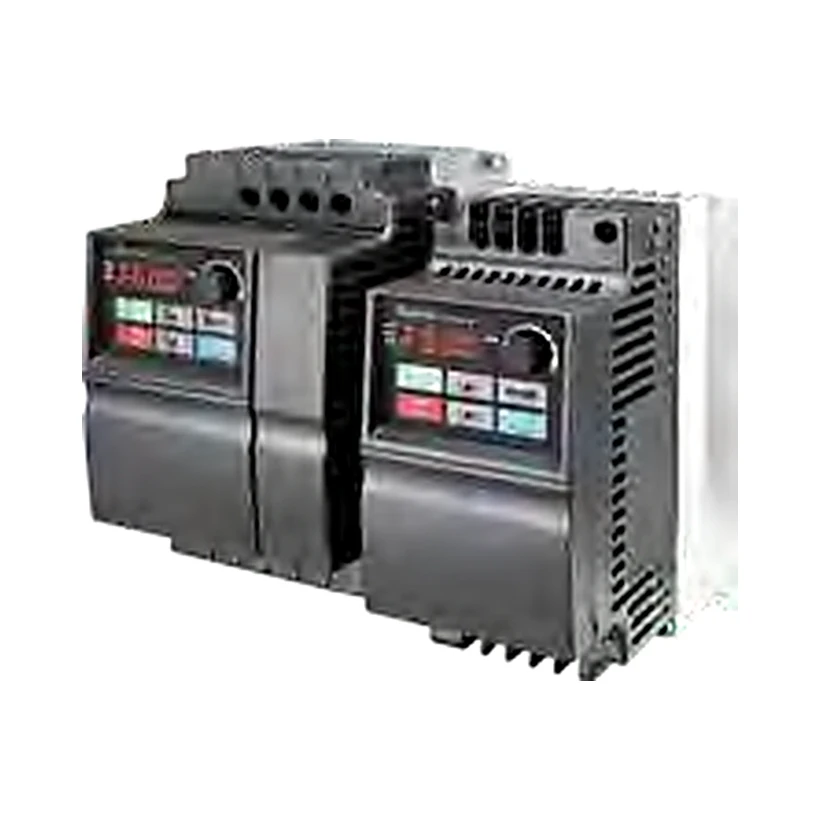

VFD-EL

Sensorless vector compact drive

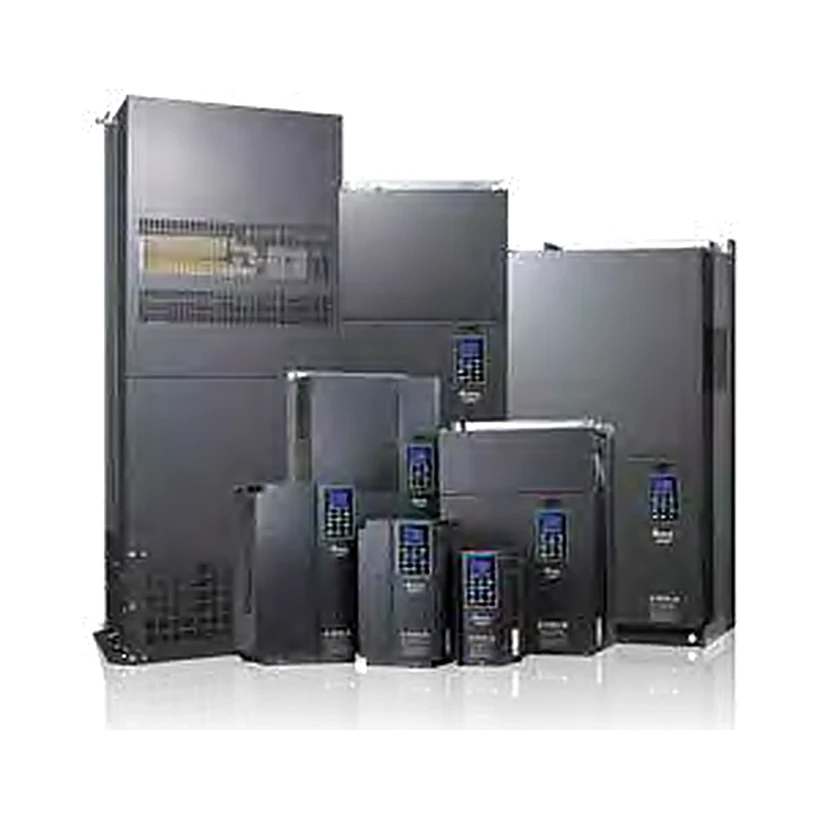

C2000 Plus

High-performance vector control drive

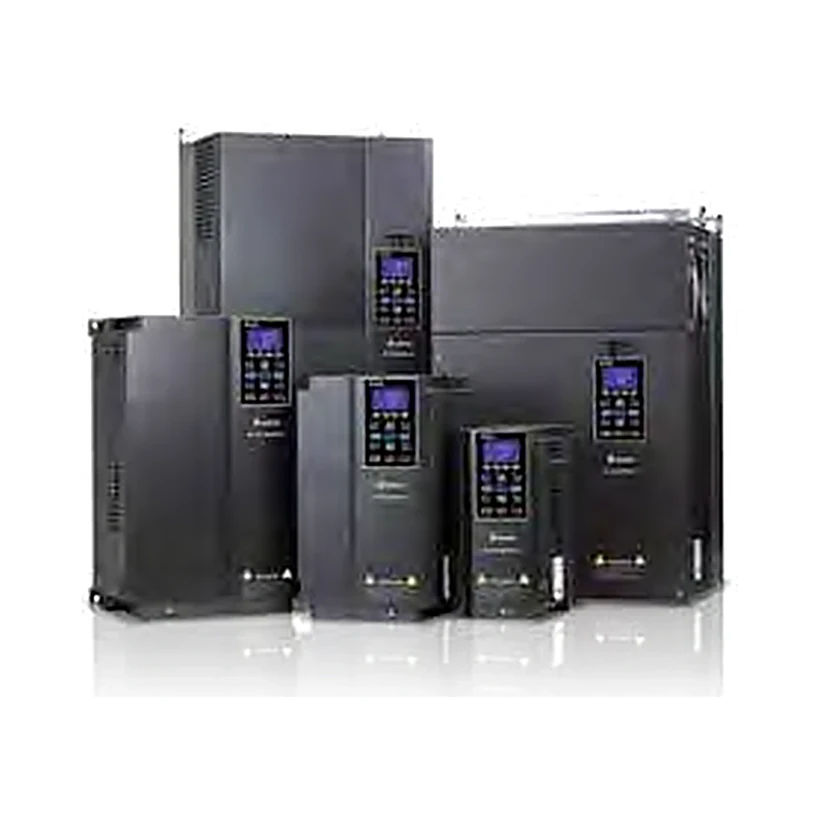

CP2000

Fan / pump vector control drive

Delta · Servo

Servo Systems

Delta ASDA AC servo drives and motors for machine tools, packaging, electronics assembly, robots and textiles.

Get a quote

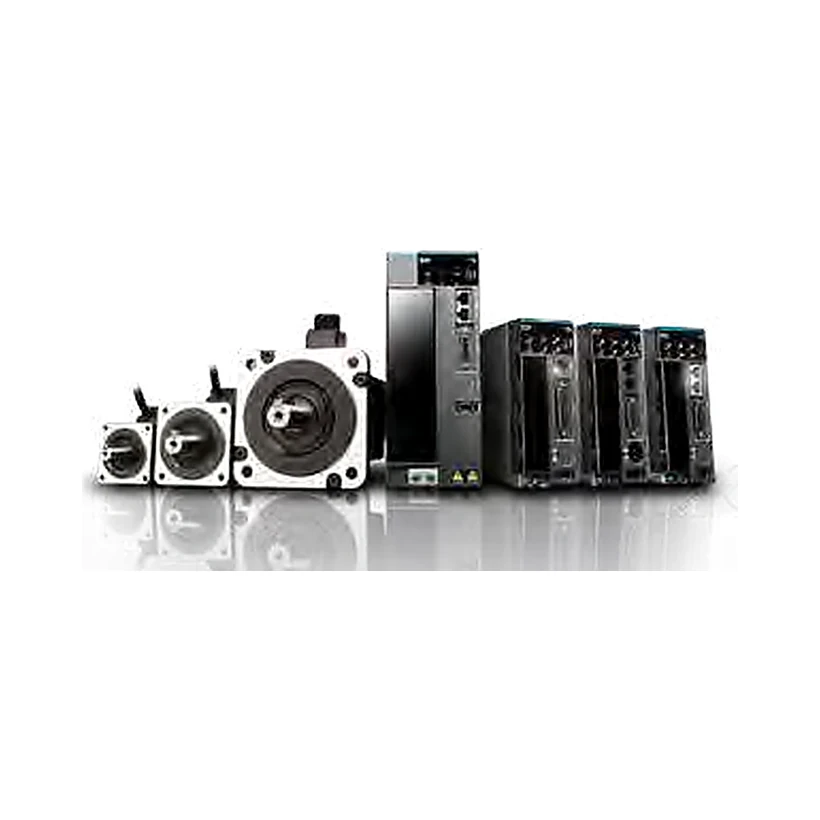

ASDA-B3

Standard AC servo system

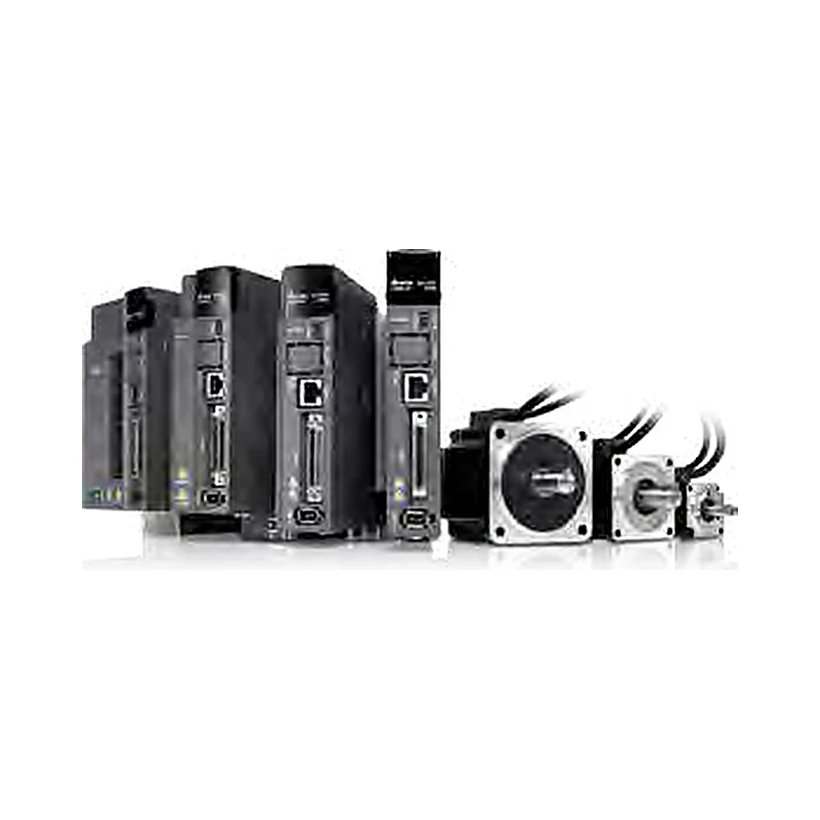

ASDA-A3

High-performance AC servo system

ASDA-B2

Standard AC servo system

ASDA-E3

E3 series AC servo system

Delta · PLC

PLCs

Delta programmable controllers, from compact brick and slim PLCs to modular mid-range and hot-swappable systems.

Get a quote

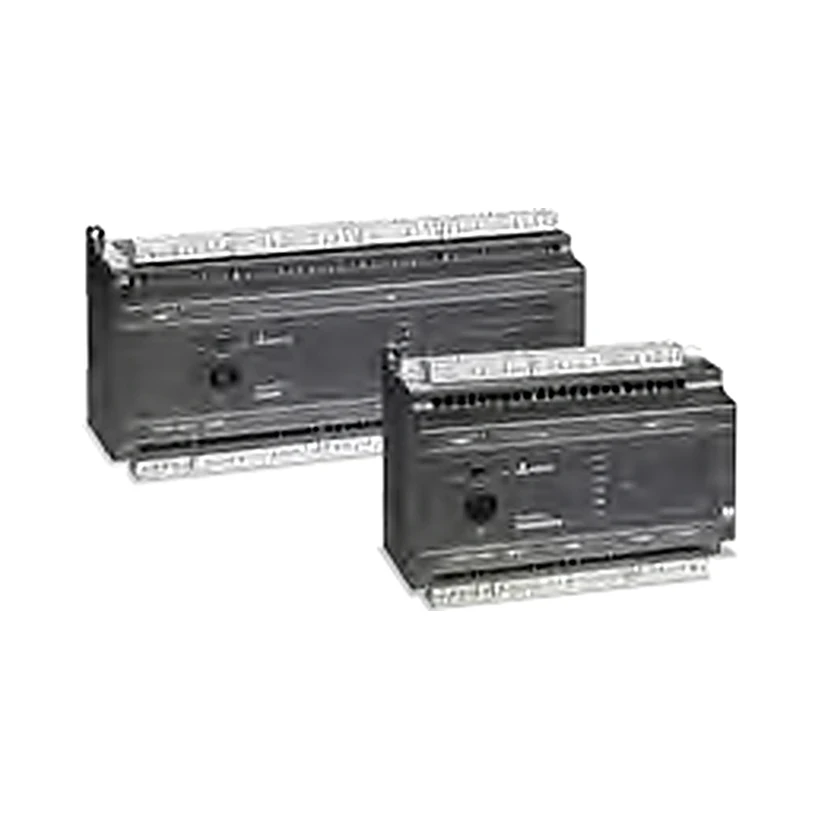

DVP-ES2 / EX2

Standard / analog brick PLC

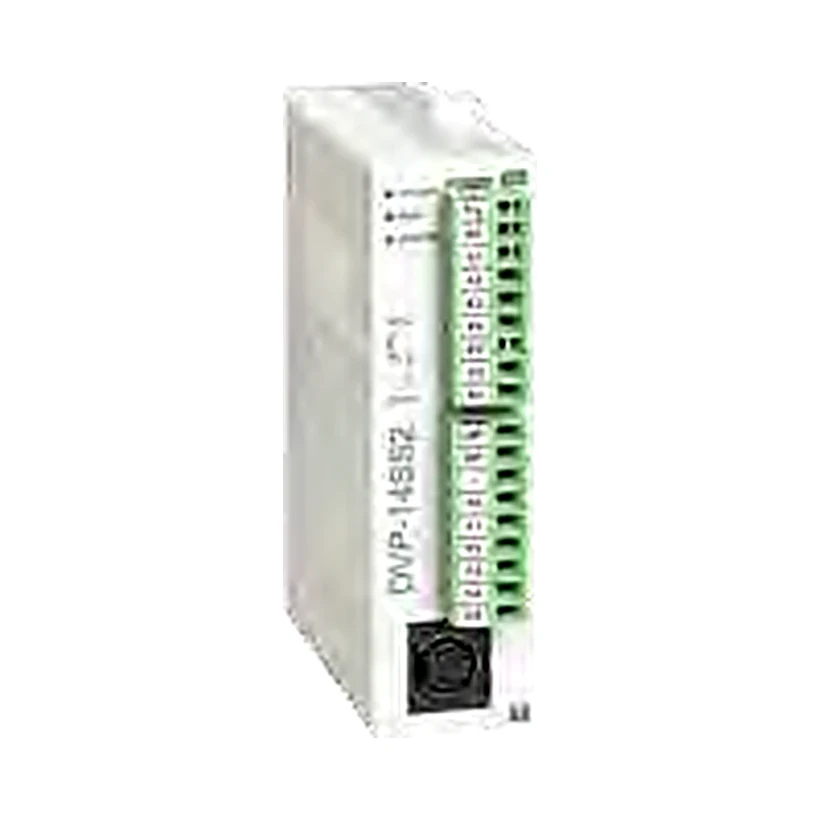

DVP-SS2

Standard slim PLC

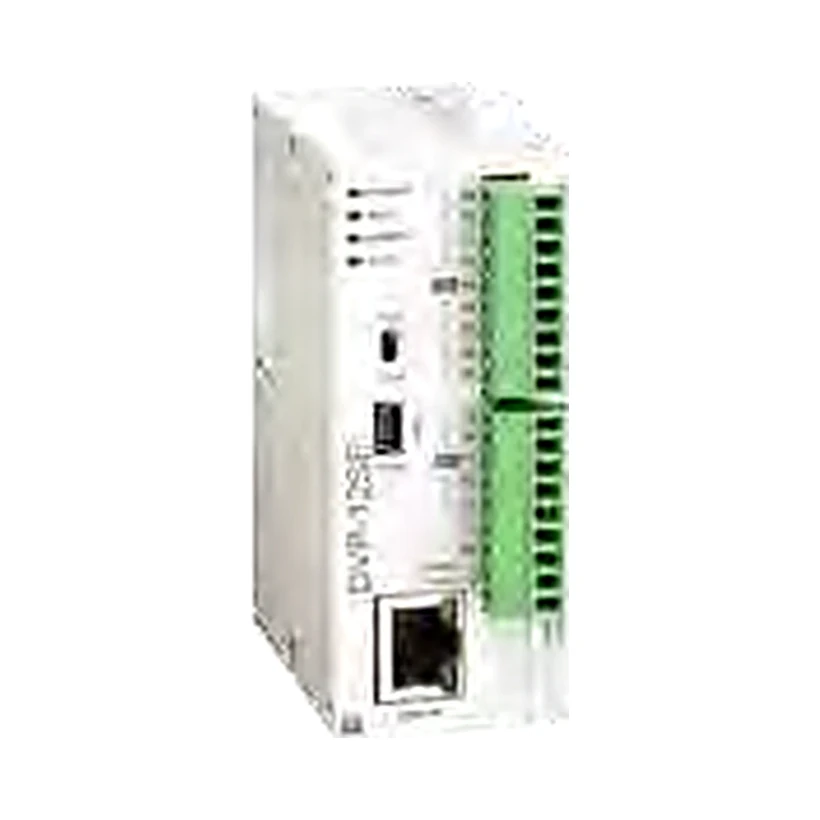

DVP-SE

Network-type advanced slim PLC

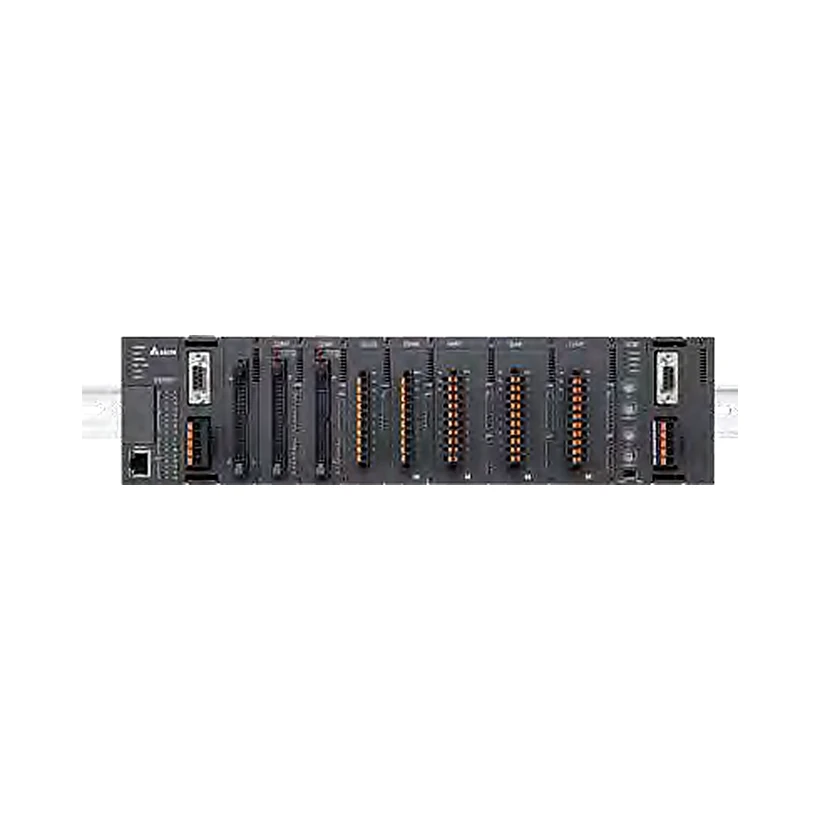

AS Series

Compact modular mid-range PLC

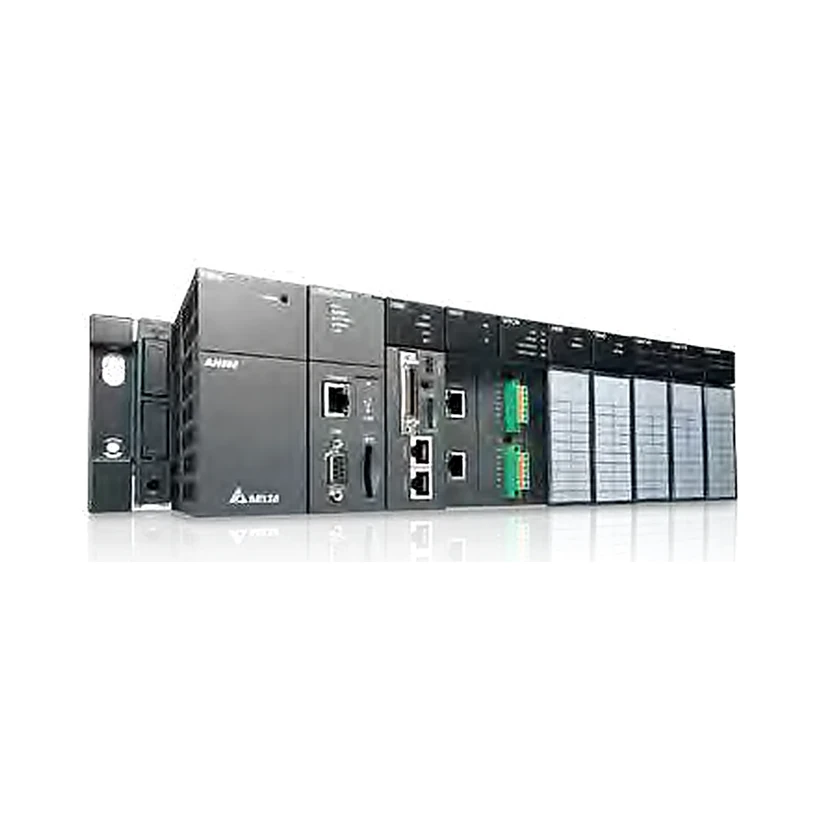

AH Series

Hot-swappable mid-range PLC

Delta · HMI

HMIs

Delta DOP-100 series touch-screen HMIs, from 4.3" basic panels to 15" multimedia and handheld units.

Get a quote

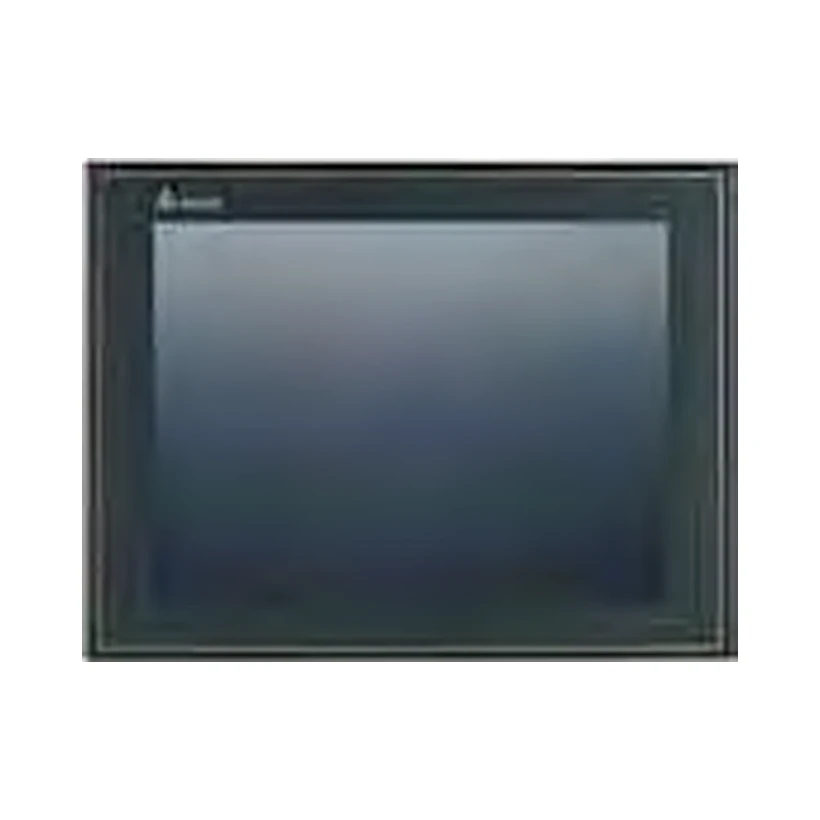

DOP-100L

Standard network HMI, 7" / 10"

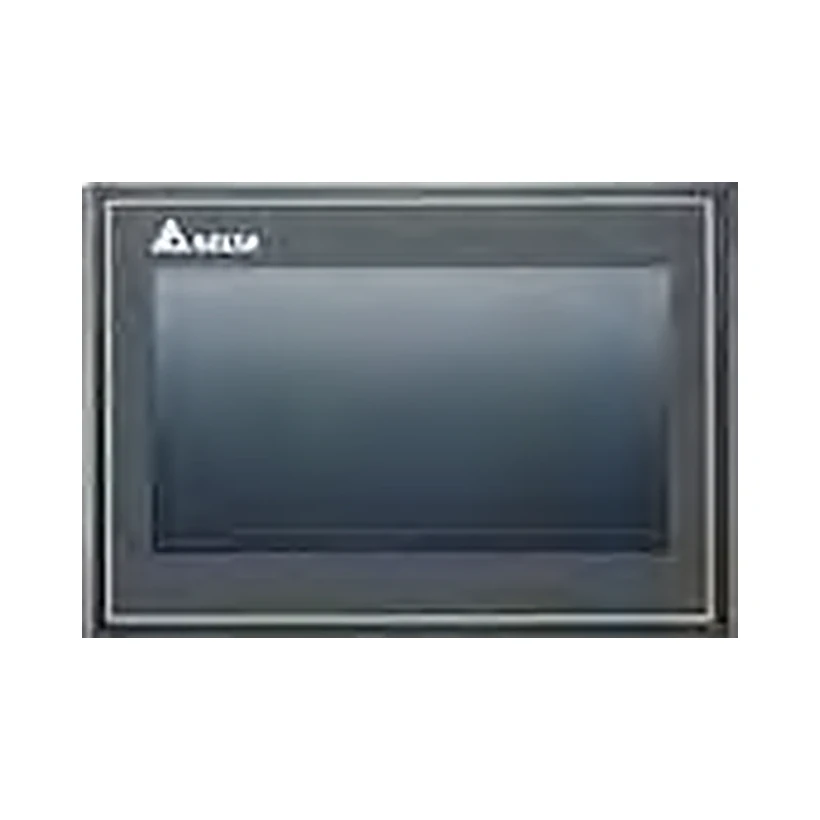

DOP-100 Advanced

Advanced HMI, 4.3"–15"

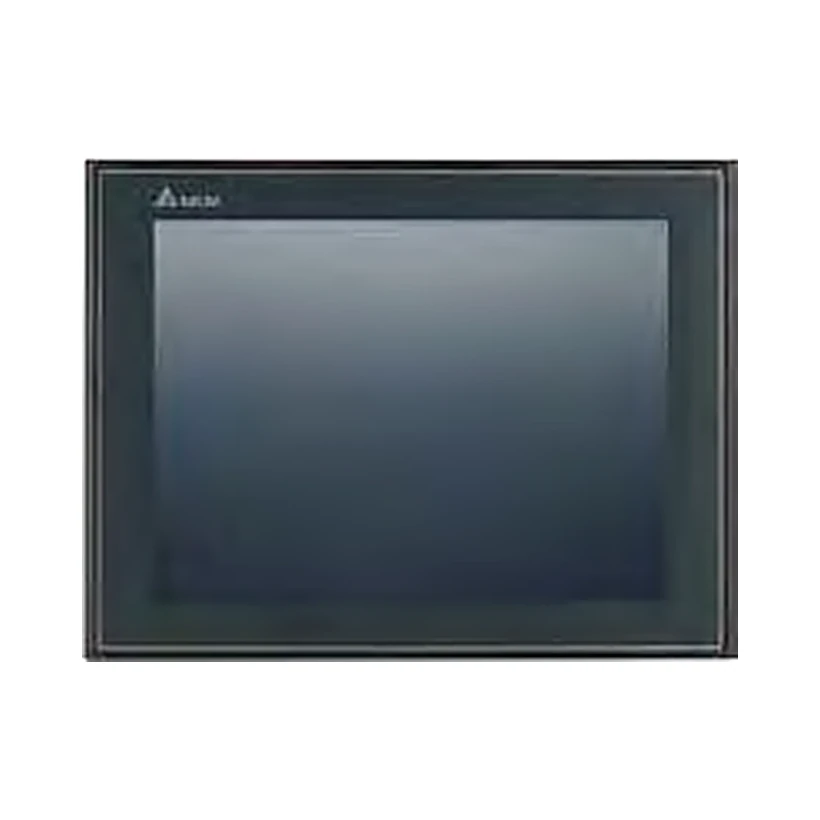

DOP-100 Multimedia

Advanced multimedia HMI, 12" / 15"

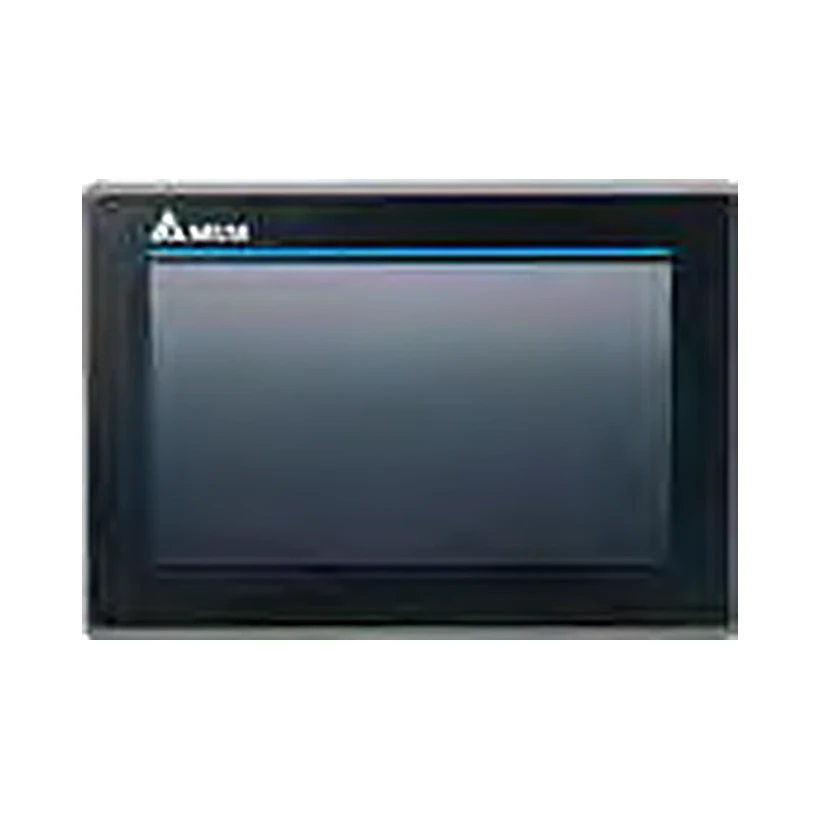

DOP-100 Ethernet

Standard Ethernet HMI, 7"–10.4"

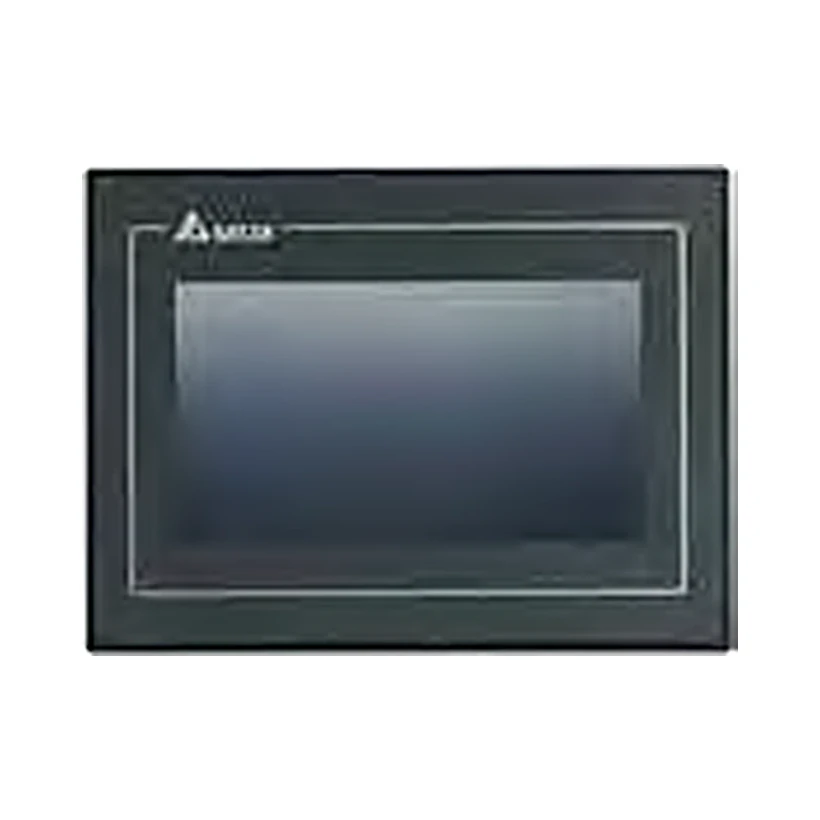

DOP-100 Standard

Standard HMI, 5.6"–10.4"

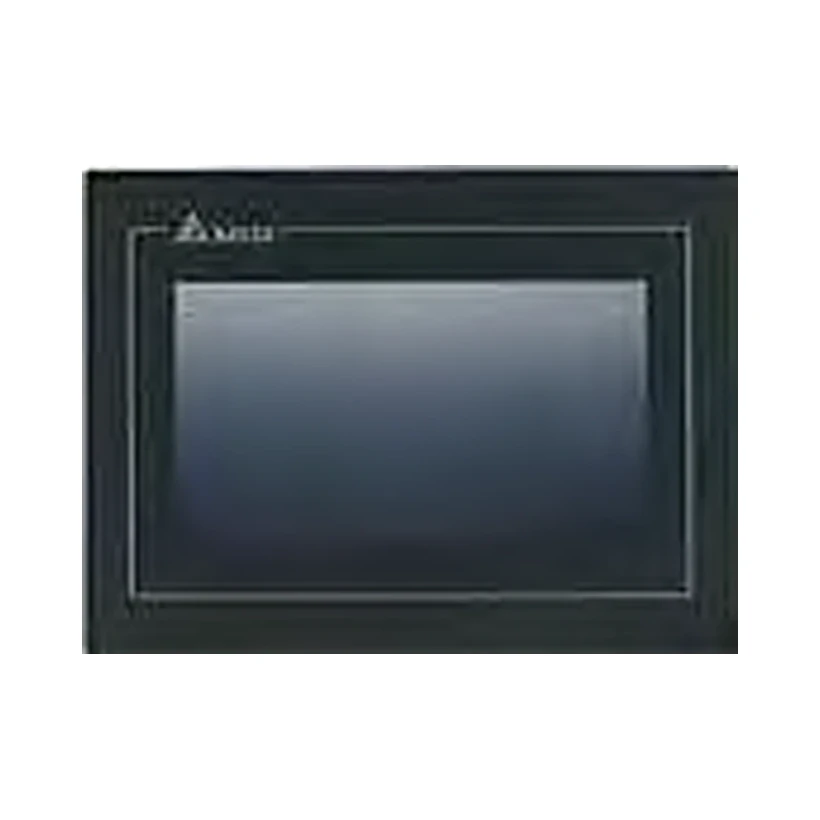

DOP-100 Basic

Basic HMI, 4.3" / 7"

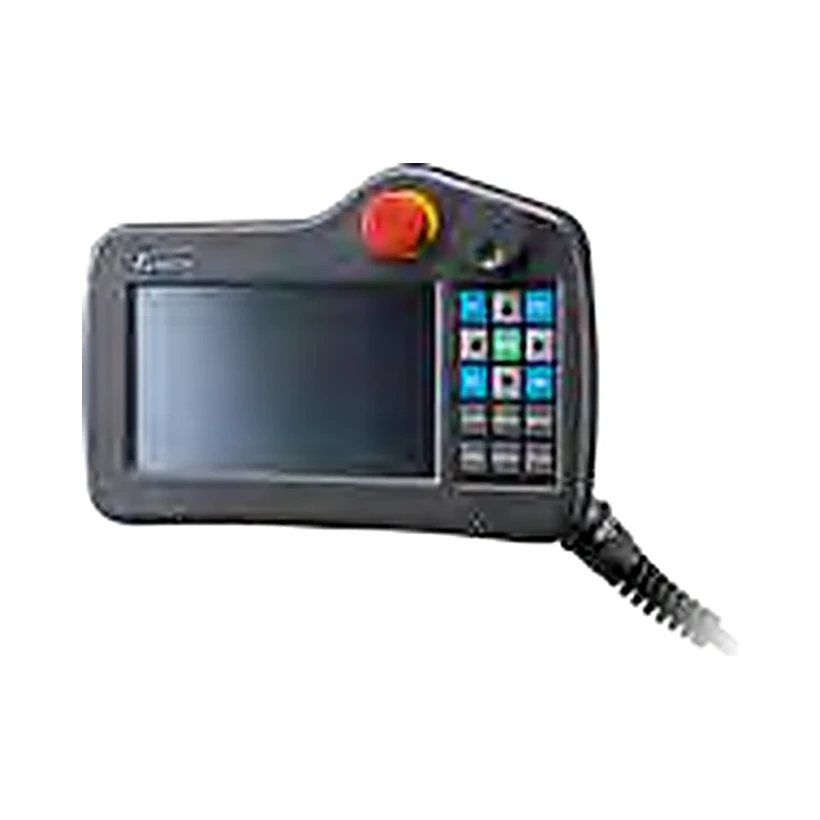

DOP-107H

Handheld HMI, 7"

Delta · Temperature

Temperature Controllers

Delta temperature controllers for heating, cooling and process control.

Get a quote

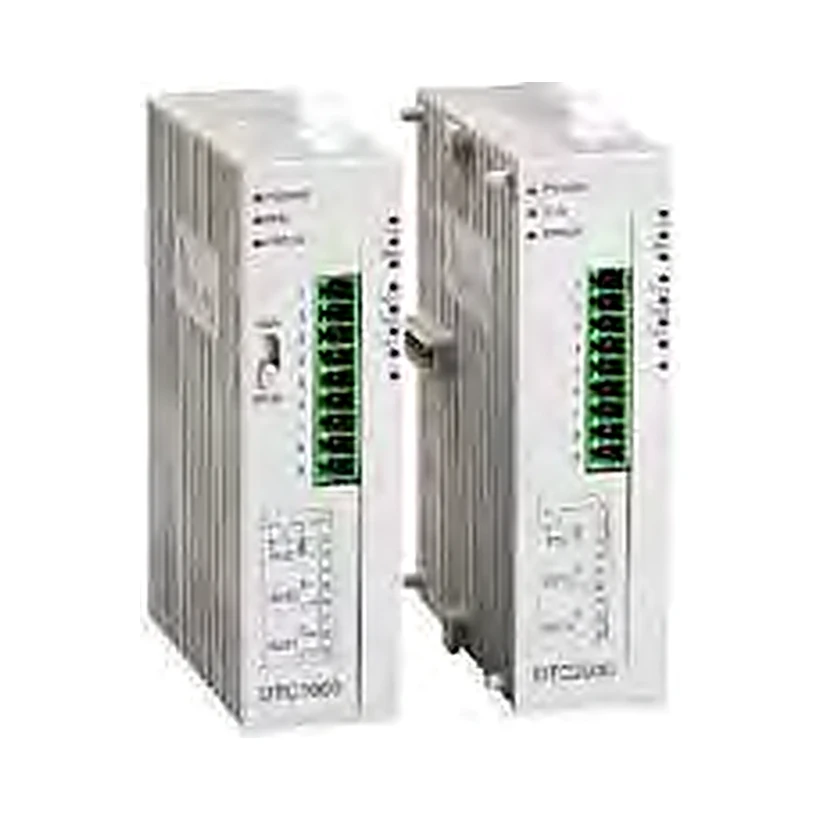

DTC

Modular temperature controller

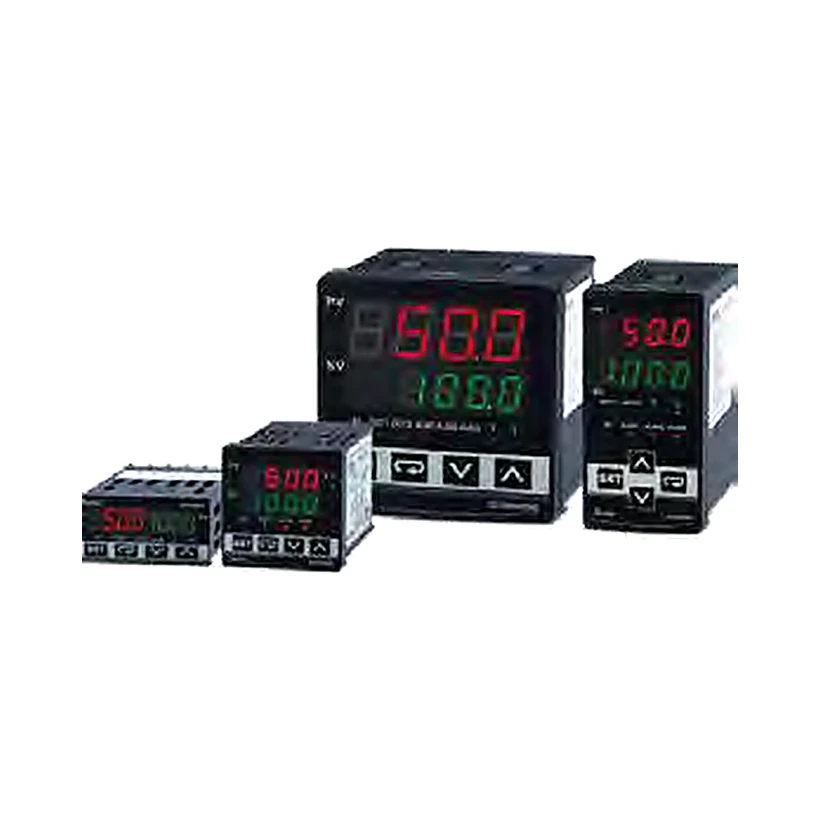

DTB

Advanced temperature controller

DTI

Temperature controller

Looking for a specific Delta model?

We are adding more Delta models with full specifications. Send us the model number or your requirement and we will confirm price and availability.

Inovance · AC Drive · open loop · general purpose

MD200 Compact Economic Drive

An open-loop, general-purpose, compact and economical AC drive series for single-phase 220 V and three-phase 400 V supplies. Simple parameters make start-up quick, and it is well suited to small machines, pumps, fans and conveyors.

0.4–2.2 kW1-ph 220 V

0.4–3.7 kW3-ph 400 V

150%starting torque at 3 Hz

500 Hzmax. output frequency

Enquire on WhatsApp Call +91 84488 04419

Motor control

Open-loop V/f control and sensorless vector control
150% starting torque at 3 Hz
Automatic torque boost
Slip compensation

Easy to use

Simplified parameters for easy start-up
Flexible programmable I/O connection
Two independent S-ramps
Comprehensive trip diagnostics

Built in

Built-in dynamic braking unit
Variable DC-injection braking
Modbus RTU as standard
MD200-NC variant: selectable sink (NPN) / source (PNP) digital inputs
Complies with CE and UL/cUL

Technical specifications

Supply & power	1-ph 220 V AC: 0.4–2.2 kW · 3-ph 400 V AC: 0.4–3.7 kW
Control modes	Open-loop V/f, sensorless vector
Starting torque	150% at 3 Hz
Max. output frequency	500 Hz
Ramps	2 independent S-ramps
Braking	Built-in dynamic braking unit · variable DC-injection braking
Communication	Modbus RTU (standard) · CANlink (variant)
Digital inputs	MD200-NC: selectable sink (NPN) or source (PNP)
Certifications	CE, UL/cUL

Specifications may change; confirm with us before ordering.

Inovance · AC Drive · compact · sensorless vector

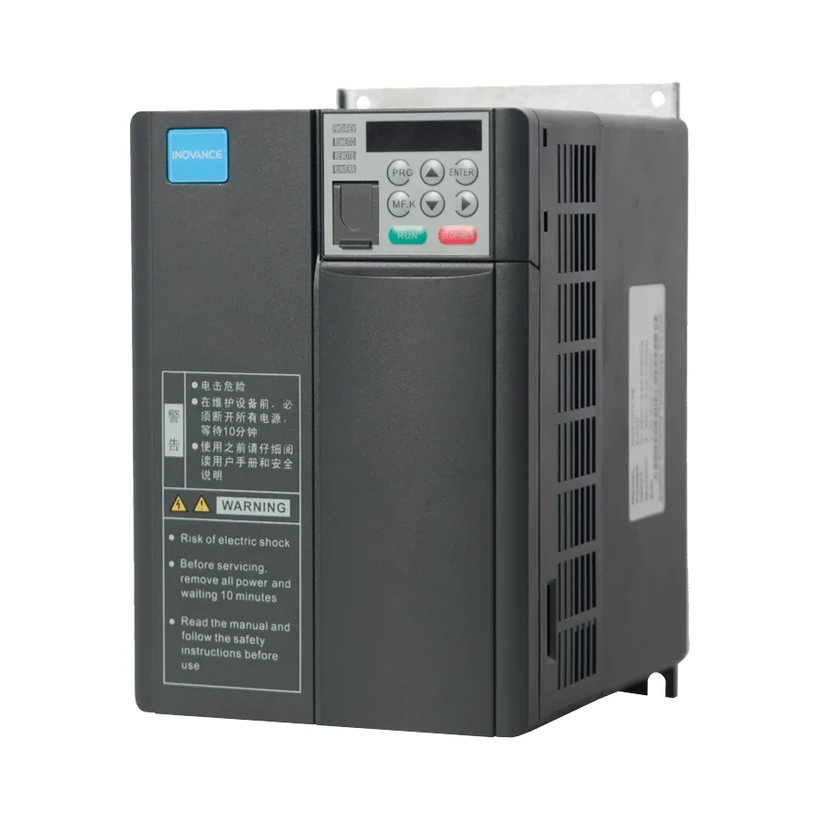

MD310 Compact Vector Economic AC Drive

A compact, economical three-phase 400 V drive from 0.4 to 18.5 kW with open-loop V/f and sensorless vector control. Strong low-speed torque and a built-in braking unit make it a dependable choice for small and mid-size machines.

0.4–18.5 kW3-ph 400 V

150%torque at 0.25 Hz (SVC)

500 Hzoutput frequency

Built-inbraking unit

Enquire on WhatsApp Call +91 84488 04419

Motor control

Open-loop V/f and sensorless vector control
150% starting torque at 0.25 Hz in SVC mode
Automatic torque boost and slip compensation
Four independent S-ramps

Braking & protection

Built-in dynamic braking unit
Variable DC-injection braking
Comprehensive trip diagnostics

Easy to use

Simplified parameters for easy start-up
Flexible programmable I/O connection
Modbus RTU and CANlink communication
Complies with CE

Technical specifications

Supply & power	3-ph 400 V AC: 0.4–18.5 kW
Control modes	Open-loop V/f, sensorless vector (SVC)
Starting torque	150% at 0.25 Hz (SVC)
Output frequency	500 Hz max.
Ramps	4 independent S-ramps
Braking	Built-in dynamic braking unit · variable DC-injection braking
Communication	Modbus RTU, CANlink
Protection	Comprehensive trip diagnostics
Certifications	CE

Specifications may change; confirm with us before ordering.

Inovance · AC Drive · open loop · general purpose

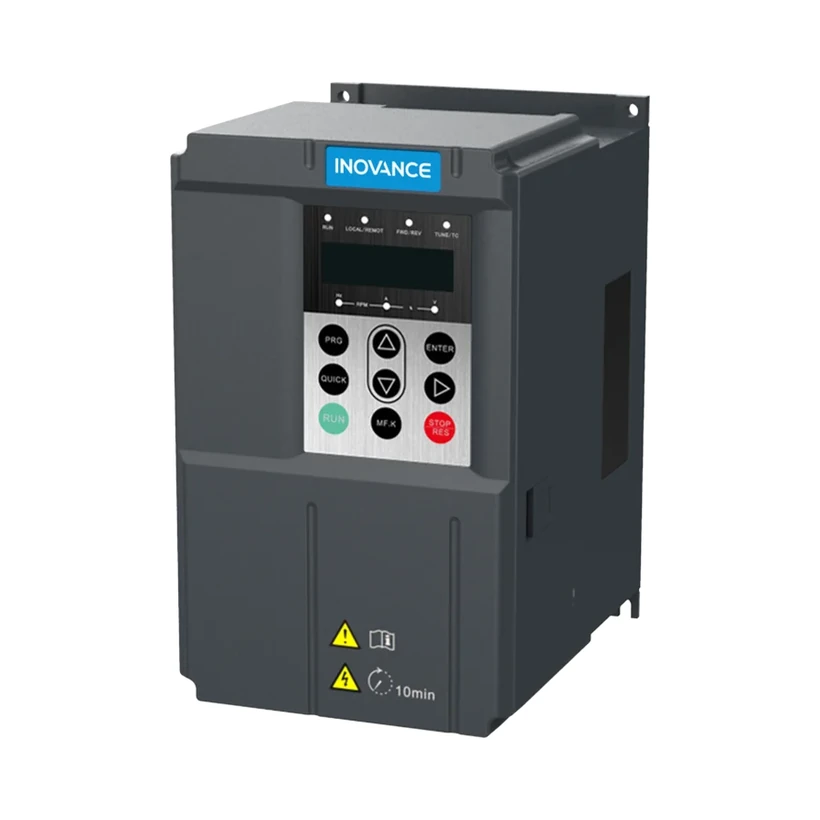

MD290 General Purpose AC Drive

An open-loop, general-purpose AC drive from 0.4 kW up to 500 kW. Dual G/P ratings make selection simple, and flexible I/O with user-programmable functions suits pumps, fans, conveyors and everyday machines.

0.4–500 kW3-ph 400 V

0.4–75 kW200 V AC

G & Pdual rated

500 Hzoutput frequency

Enquire on WhatsApp Call +91 84488 04419

Motor control

Open-loop V/f with slip compensation
Automatic torque boost
Four independent S-ramps
Variable DC-injection braking

Easy to apply

Dual rated (G and P) for the right-size selection
Simplified parameters for easy start-up
Flexible programmable I/O connection
User-programmable functions
Comprehensive trip diagnostics

Connectivity

Modbus RTU
CANlink and CANopen
PROFIBUS-DP
PROFINET
Complies with CE and UL

Technical specifications

3-ph 400 V	0.4–500 kW
200 V AC	0.4–75 kW
Ratings	Dual rated: G (heavy duty) and P (normal duty)
Control mode	Open-loop V/f with slip compensation
Output frequency	500 Hz
Ramps	4 independent S-ramps
Braking	Variable DC-injection braking
Communication	Modbus RTU, CANlink, PROFIBUS-DP, PROFINET, CANopen
Certifications	CE, UL

Specifications may change; confirm with us before ordering.

Inovance · AC Drive · compact · high performance

MD630 Advanced Compact AC Drive

A new advanced compact AC drive for induction, PM synchronous and reluctance motors. It combines open- and closed-loop vector control, a wide choice of encoder and Ethernet fieldbus options, and a design built to keep running in hot, demanding plants.

0.4–90 kWheavy duty

0.75–110 kWnormal duty

Up to 60 °Cambient operation

IE2efficiency class

Enquire on WhatsApp Call +91 84488 04419

Motor control

V/f control for induction motors
Sensorless vector control (SVC)
Feedback vector control (FVC) for induction, PM synchronous and reluctance motors
Encoders: A/B/Z incremental (HTL, line driver), SinCos, serial, SSI, BiSS-C, EnDat and resolver

Connectivity

PROFINET
EtherCAT
EtherNet/IP
Modbus TCP

Reliability

Operation in high ambient temperatures, up to 60 °C
Conformal-coated PCBs (3S2, 3C3 environments)
Predictive maintenance parameters
Black-box fault recording
Intelligent fan control

Technical specifications

Supply	3-ph 380–480 V AC
Power (heavy duty)	0.4–90 kW
Power (normal duty)	0.75–110 kW
Control modes	V/f, SVC, FVC (closed loop)
Motor types	Induction, PM synchronous, reluctance
Encoder feedback	A/B/Z (HTL, line driver), SinCos, serial, SSI, BiSS-C, EnDat, resolver
Fieldbus	PROFINET, EtherCAT, EtherNet/IP, Modbus TCP
EMC filter	Built-in C3 filter (10 m)
Efficiency	IE2 to IEC 61800-9-2
Ambient temperature	Up to 60 °C
Coating	Conformal-coated PCBs (3S2, 3C3)
Mounting	Through-hole options; cold-plate variants available
Compliance	CE, UL, RoHS, REACH

Specifications may change; confirm with us before ordering.

Inovance · AC Drive · open & closed loop

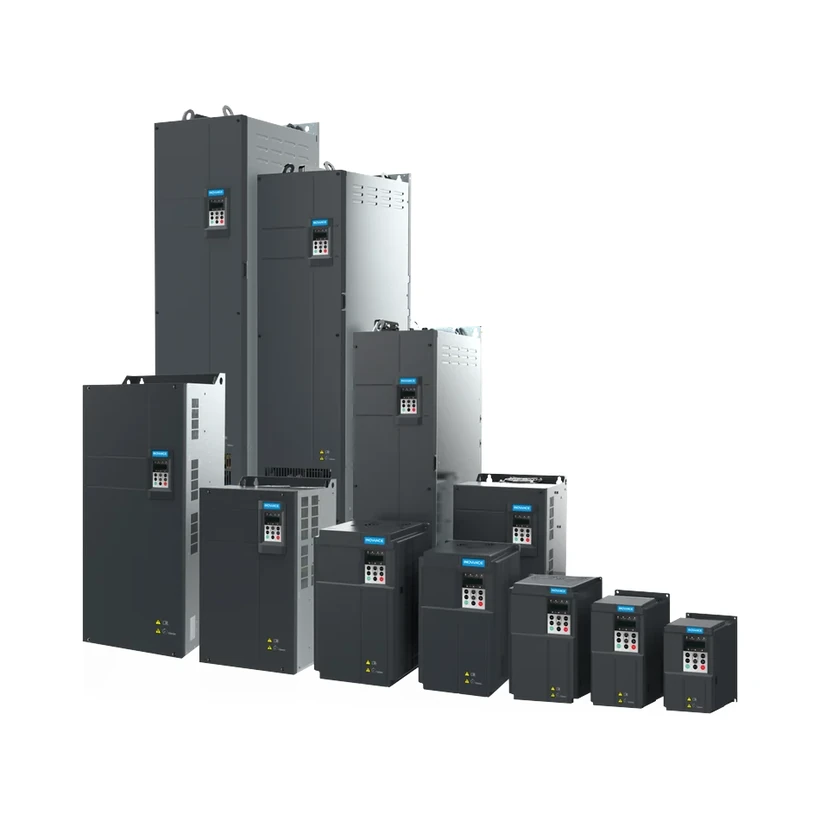

MD500 High Performance Vector AC Drive

A high-performance universal AC drive with open-loop and closed-loop vector control, from 0.4 kW up to 450 kW. High torque down to zero speed and a wide choice of fieldbuses make it a strong fit for demanding machines and process lines.

0.4–450 kW3-ph 400 V

0.4–55 kW3-ph 200 V

180% at 0 Hzstarting torque (FVC)

500 Hzoutput frequency

Enquire on WhatsApp Call +91 84488 04419

Motor control

Open-loop V/f and sensorless vector control (SVC)
Closed-loop flux vector control (FVC)
150% starting torque at 0.25 Hz (SVC)
180% starting torque at 0 Hz (FVC)
Automatic torque boost and slip compensation

Easy to apply

Simplified parameters for easy start-up
Four independent S-ramps
Flexible programmable I/O connection
User-programmable functions
Comprehensive trip diagnostics

Braking & connectivity

Built-in dynamic braking unit
Variable DC-injection braking
Modbus RTU, PROFIBUS-DP, PROFINET, CANopen, CANlink
Complies with CE and UL

Technical specifications

3-ph 400 V AC	0.4–450 kW
3-ph 200 V AC	0.4–55 kW
Control modes	Open-loop V/f, SVC, closed-loop FVC
Starting torque	150% at 0.25 Hz (SVC) · 180% at 0 Hz (FVC)
Output frequency	500 Hz max.
Ramps	4 independent S-ramps
Braking	Built-in dynamic braking unit · variable DC-injection braking
Communication	Modbus RTU, PROFIBUS-DP, PROFINET, CANopen, CANlink
Certifications	CE, UL

Specifications may change; confirm with us before ordering.

Inovance · AC Drive · high performance · universal

MD500-PLUS High Performance Universal AC Drive

The enhanced version of the MD500 platform, covering single-phase and three-phase 200 V and three-phase 400 V supplies up to 500 kW. Designed for higher reliability in hot, harsh plants, with built-in DC reactors on larger ratings and PC tools for quick start-up and backup.

0.4–500 kW3-ph 380–480 V

0.4–75 kW3-ph 200–240 V

Up to 50 °Cambient operation

IE2IEC 61800-9-2

Enquire on WhatsApp Call +91 84488 04419

Wide power range

3-ph 380–480 V AC: 0.4–500 kW
3-ph 200–240 V AC: 0.4–75 kW
1-ph 200–240 V AC: 0.4–2.2 kW
Through-hole mounting available from 0.4 to 160 kW

Built for reliability

Operation in high ambient temperatures, up to 50 °C
Conformal-coated PCBs for 3S2 and 3C3 environments
Built-in DC reactor: 400 V from 18.5 kW, 200 V from 11 kW
Enhanced design for long service life

Efficient & easy

Efficiency class IE2 to IEC 61800-9-2
PC software for start-up and parameter backup

Technical specifications

3-ph 380–480 V AC	0.4–500 kW
3-ph 200–240 V AC	0.4–75 kW
1-ph 200–240 V AC	0.4–2.2 kW
Ambient temperature	Up to 50 °C
DC reactor	Built in: 400 V ≥ 18.5 kW · 200 V ≥ 11 kW
Coating	Conformal-coated PCBs (3S2, 3C3)
Efficiency	IE2 to IEC 61800-9-2
Mounting	Through-hole option, 0.4–160 kW
Software	PC tools for start-up and backup

Specifications may change; confirm with us before ordering.

Inovance · AC Drive · high performance · universal

MD520 High Performance Universal AC Drive

One drive platform for both AC asynchronous and PM synchronous motors, from small single-phase machines up to 500 kW. Built for reliability with conformal-coated boards, integrated DC reactors on larger ratings and STO safety as standard.

Up to 500 kW3-ph 380–480 V

Async + PMone control platform

SIL 3 / PL eSTO safety

IE2IEC 61800-9-2

Enquire on WhatsApp Call +91 84488 04419

Universal control

Unified control for AC asynchronous and PM synchronous motors
One drive family from 0.4 kW to 500 kW
Single-phase and three-phase 200 V and three-phase 400 V classes

Reliability

Conformal-coated PCBs for 3S2 and 3C3 environments
Built-in DC reactor: 400 V from 18.5 kW, 200 V from 11 kW
Through-hole mounting options on selected models

Safety & compliance

STO rated SIL 3 / PL e
Efficiency class IE2 to IEC 61800-9-2
CE, UL and RoHS

Technical specifications

3-ph 380–480 V AC	0.4–500 kW
3-ph 200–240 V AC	0.4–220 kW
1-ph 200–240 V AC	0.4–2.2 kW
Motor types	AC asynchronous, PM synchronous
DC reactor	Built in: 400 V ≥ 18.5 kW · 200 V ≥ 11 kW
Safety	STO SIL 3, PL e
Efficiency	IE2 to IEC 61800-9-2
Coating	Conformal-coated PCBs (3S2, 3C3)
Mounting	Through-hole options on selected models
Compliance	CE, UL, RoHS

Specifications may change; confirm with us before ordering.

Inovance · AC Drive · compact · unified motor control

MD600 Series AC Drive

A compact, space-saving AC drive with unified control of asynchronous and PM synchronous motors. Tool-free terminals, dual CAN network ports and an advanced thermosyphon cooling design make it quick to install and reliable in service.

Async + PMunified motor control

V/f & SVCcontrol modes

20×heat transfer vs. aluminium

Dual portsCAN networking

Enquire on WhatsApp Call +91 84488 04419

Compact & easy to install

Space-efficient compact design
Tool-free crimp terminals for faster installation and maintenance
Dual network ports for CAN communication
Optional speed regulator panel and LCD panel for parameter management

Motor control & efficiency

Unified control of AC asynchronous and PM synchronous motors
V/f and sensorless vector control (SVC)
Automatic power optimisation to reduce energy use
Advanced motor estimation techniques

Cooling & durability

Thermosyphon technology: over 20× the heat transfer of conventional aluminium
Independent air duct with intelligent fan
Tri-proof coating for environmental protection

Technical specifications

Motor types	AC asynchronous, PM synchronous
Control modes	V/f, sensorless vector (SVC)
Communication	Dual network ports, CAN
Terminals	Tool-free crimp terminals
Operator panels	Optional speed regulator panel · optional LCD panel
Cooling	Thermosyphon heatsink · independent air duct · intelligent fan
Protection	Tri-proof coating
Energy	Automatic power optimisation

Specifications may change; confirm with us before ordering.

Inovance · AC Multidrive · Red Dot winner 2021

MD800 Compact AC MultiDrive

Designed to give OEM machine builders what they need most: lower installation costs and smaller machine cabinets. Its modular design allows up to 8 drives per rectifier, reducing the overall drive footprint by up to 50% compared with conventional single drives.

Up to 8drives per rectifier

Up to 50%smaller cabinet footprint

⅔ lesswiring

⅔ fastercommissioning

Enquire on WhatsApp Call +91 84488 04419

Lower installation cost

Mounting-plate preparation time reduced by 50%
Assembly time reduced by 50%
Wiring reduced by two-thirds
Pluggable terminals for faster wiring

Easy communication & commissioning

One high-speed bus expansion card serves up to 8 drives
Dual RJ45 ports for simple daisy-chain wiring
Commissioning time cut by two-thirds
Built-in parameter cloning and simple maintenance

Built for machines

Individual STO (Safe Torque Off) SIL 3 on every drive
Open-loop control of asynchronous and PM synchronous motors
Heavy duty (G): 150% overload · Normal duty (P): 110% overload
+24 V DC control backup supply
Optional remote LCD keypad and PC commissioning software

Technical specifications

Supply	1-ph 200 V and 3-ph 400 V
Architecture	1 rectifier unit + up to 8 drive units
Built-in I/O	4 DI, 4 DI/DO, 2 AI, 1 relay output
Onboard communication	USB (commissioning), CAN, RS485
Onboard protocols	CANopen, CANlink, Modbus RTU
Expansion	2 slots: I/O cards and fieldbus cards
Fieldbus options	EtherCAT, EtherNet/IP, PROFINET, Modbus TCP
Safety	STO SIL 3 per drive
Protection	IP40
Dimensions (H × D)	182 mm × 160 mm (common to all modules)
Width	Rectifier 99.5 mm · Drive 49.5 mm
Operating temperature	−20 to +60 °C (derating above 50 °C)
Altitude	Up to 4,000 m (derating above 1,000 m)
Coating	High-level conformal coating (3C3 & 3S2)
Cooling	Dedicated heatsink cooling channel
Certifications	CE, UL

Specifications may change; confirm with us before ordering.

Inovance · AC Multidrive · 400 V · 1.5–160 kW

MD810 MultiDrive System

A modular multidrive system for induction and permanent-magnet synchronous (PMS) motors, with open- and closed-loop control. A common power supply unit feeds single and dual drive units on a shared DC bus, making it a good fit for complex, multi-section machines and process lines.

22–355 kWcommon power supply unit

1.5–160 kWdrive units

1.5–18.5 kWdual drive units

SIL 3STO safety

Enquire on WhatsApp Call +91 84488 04419

Modular power

Common power supply unit from 22 to 355 kW
Single drive units from 1.5 to 160 kW
Dual drive units from 1.5 to 18.5 kW
Three-phase 400 V AC

Control performance

V/f control (configurable)
Sensorless vector control
Closed-loop vector control
For asynchronous and PMS motors
Static and dynamic auto-tuning

Application functions

Centre winder / unwinder function
Wobble function
Point-to-point position control
Secondary PID loop for external process control (e.g. load cells)
STO SIL 3 to EN/IEC 61800-5-2

Technical specifications

Supply	3-ph 400 V AC
Power supply unit	22–355 kW (common DC bus)
Drive units	1.5–160 kW
Dual drive units	1.5–18.5 kW
Control modes	V/f, sensorless vector, closed-loop vector
Motor types	Asynchronous and PMS motors
Special functions	Centre winder/unwinder, wobble, point-to-point positioning, secondary PID
Fieldbus options	CANopen, Modbus RTU, PROFIBUS-DP, CANlink, PROFINET
Safety	STO SIL 3 to EN/IEC 61800-5-2
Certifications	CE, UL

Specifications may change; confirm with us before ordering.

Inovance · Servo drive · economy · EtherCAT

SV630-INT Economy Servo Drive

A high-performance yet cost-effective servo drive for precise control, reliability and easy set-up across a wide range of machines. An 18-bit absolute encoder, one-click auto-tuning and EtherCAT synchronisation make it quick to commission and accurate in operation.

18-bitabsolute encoder

262,144pulses per revolution

±20 nsEtherCAT sync error

300 nodeswithin 120 m

Enquire on WhatsApp Call +91 84488 04419

High-precision control

18-bit absolute encoder for accurate positioning
Resolution up to 4.94 arc-seconds (262,144 PPR)
Stable operation in demanding environments

Quick commissioning

One-click auto-tuning
Automatically sets inertia ratio, gains and resonance suppression
Less set-up time and manual adjustment

Reliable & connected

Long service life with stable encoder battery performance
High vibration resistance for harsh conditions
EtherCAT and Modbus communication
EtherCAT distributed clocks: up to 300 nodes within 120 m, sync error as low as ±20 ns

Technical specifications

Encoder	18-bit absolute
Resolution	Up to 4.94 arc-seconds (262,144 PPR)
Tuning	One-click auto-tuning (inertia, gain, resonance)
Communication	EtherCAT, Modbus
Synchronisation	EtherCAT distributed clocks, ±20 ns
Network size	Up to 300 nodes within 120 m
Environment	High vibration resistance

Specifications may change; confirm with us before ordering.

Inovance · Servo drive · high dynamic · compact

SV660 Servo Drives

High dynamic performance in a compact footprint. The SV660 family covers 0.1 to 7.5 kW on 220 V and 380 V supplies, with a 4.5 kHz current loop and up to 3 kHz speed-loop bandwidth for fast, precise machines.

0.1–7.5 kWpower range

3 kHzspeed-loop bandwidth

4.5 kHzcurrent loop

SIL 3Safe Torque Off

Enquire on WhatsApp Call +91 84488 04419

High dynamics

Ultra-fast 4.5 kHz current loop
Speed-loop bandwidth up to 3 kHz
Compact footprint saves cabinet space

Easy to use

User-friendly installation
Simple set-up and parameter tuning
Supplies: 1-ph 220 V, 3-ph 220 V and 3-ph 380 V

Safety & variants

Safe Torque Off (STO) SIL 3
CE and UL compliant
Family variants: SV660N, SV660P, SV660F, SV660C, SV660A

Technical specifications

Supply	1-ph 220 V · 3-ph 220 V · 3-ph 380 V
Power range	0.1–7.5 kW
Current loop	4.5 kHz
Speed-loop bandwidth	Up to 3 kHz
Safety	STO SIL 3
Variants	SV660N, SV660P, SV660F, SV660C, SV660A
Certifications	CE, UL

Specifications may change; confirm with us before ordering.

Inovance · Servo drive · pulse command · single axis

SV670P Single-Axis Pulse Servo Drive

A single-axis servo drive for pulse-command control, from 0.1 to 7.5 kW on single-phase 200 V or three-phase 400 V supplies. Easy to install and tune, with a 4.5 kHz current loop, flexible encoder interfaces and Safe Torque Off SIL 3 built in.

0.1–7.5 kWpower range

4.5 kHzcurrent loop

SIL 3Safe Torque Off

200 V / 400 V1-ph / 3-ph supply

Enquire on WhatsApp Call +91 84488 04419

Easy to use

User-friendly installation
Easy set-up and tuning
Pulse-command control for PLCs and motion controllers
+24 V DC control-supply backup variant available

Performance

Ultra-fast current control at 4.5 kHz loop frequency
Primary encoder interfaces: serial, Nikon, Tamagawa
Secondary incremental quadrature encoder input

Safety & variants

Safe Torque Off (STO) SIL 3
CANopen (C) variant available
CANlink (A) variant available

Technical specifications

Supply	1-ph 200 V · 3-ph 400 V
Power range	0.1–7.5 kW
Command	Pulse
Current loop	4.5 kHz
Primary encoder	Serial, Nikon, Tamagawa
Secondary encoder	Incremental quadrature
Control supply	+24 V DC backup variant available
Communication variants	CANopen (C), CANlink (A)
Safety	STO SIL 3

Specifications may change; confirm with us before ordering.

Inovance · Servo drive · functional safety · single axis

SV680P/N Single-Axis Servo Drive

A single-axis servo drive with advanced functional safety for machines that demand high responsiveness, accuracy and efficiency. Available with pulse (P) or EtherCAT (N) command, it combines a 3.5 kHz speed loop, high-resolution multi-turn encoders and seven built-in safety functions.

3.5 kHzspeed-loop bandwidth

23 / 26-bitmulti-turn absolute encoder

SIL 3 PL eSTO + 7 safety functions

8 Mppsmax. pulse command

Enquire on WhatsApp Call +91 84488 04419

High performance

3.5 kHz speed-loop bandwidth for fast, precise response
23-bit and 26-bit multi-turn absolute encoder options
16 kHz carrier frequency for quieter, smoother running
Advanced current-loop algorithm for smooth motor control
Two-axis gantry synchronisation (e.g. laser cutting)

Functional safety

STO as standard, SIL 3 PL e
7 built-in safety functions: SS1, SS2, SLS, SBC, SOS, SSM, SDI
EtherCAT FSoE (Safety over EtherCAT)
SEMI F47 compliant for semiconductor equipment
Built-in dynamic braking and dedicated brake output

Easy to use

USB-C commissioning: read/write parameters without mains power
Three self-tuning modes: Stune, Etune, Itune
Integrated indexer for point-to-point positioning
PTC motor temperature input · black-box fault recording
Independent air duct keeps dust out of the electronics

Technical specifications

Command	Pulse (P) up to 8 Mpps · EtherCAT (N)
Speed-loop bandwidth	3.5 kHz
Carrier frequency	16 kHz
Motor encoder	23-bit / 26-bit multi-turn absolute
Encoder interfaces	ABZ incremental, Inovance, BiSS-C, SSI, EnDat 2.2
Analog I/O	16-bit voltage/current AI · voltage AO
Safety	STO SIL 3 PL e (standard) · SS1, SS2, SLS, SBC, SOS, SSM, SDI · FSoE
Braking	Built-in dynamic braking · dedicated brake output
Compliance	SEMI F47
Commissioning	USB-C · Stune / Etune / Itune self-tuning

Specifications may change; confirm with us before ordering.

Inovance · Servo drive · multi-axis · 400 V

IS810N Multi-Axis Servo Drive Platform

A multi-axis servo drive platform for maximum performance in the most demanding applications. A common power supply module feeds single- and dual-axis modules on a shared DC bus, saving cabinet space and energy on large multi-axis machines.

22–355 kWcommon power supply

0.85–75 kWaxis modules

2 kHzspeed-loop bandwidth

SIL 3Safe Torque Off

Enquire on WhatsApp Call +91 84488 04419

Modular system

Common power supply module from 22 to 355 kW
Single-axis modules from 850 W to 75 kW
Dual-axis modules up to 18.5 kW
Three-phase 400 V supply

High performance

Ultra-fast 4.5 kHz current loop
Speed-loop bandwidth up to 2 kHz
Built for demanding, high-dynamic machines

Safety & compliance

Safe Torque Off (STO) SIL 3
CE compliant

Technical specifications

Supply	3-ph 400 V
Power supply module	22–355 kW (common DC bus)
Single-axis modules	850 W – 75 kW
Dual-axis modules	Up to 18.5 kW
Current loop	4.5 kHz
Speed-loop bandwidth	Up to 2 kHz
Safety	STO SIL 3
Certifications	CE

Specifications may change; confirm with us before ordering.

Inovance · Servo drive · multi-axis · compact

SV820N Multi-Axis Servo Drive

A compact multi-axis servo platform in 3- or 4-axis versions with a shared power supply. An ultra-fast control loop and high dynamic response, matched with MS1 motors from 50 to 750 W, make it ideal for robots and compact multi-axis machines.

3 or 4 axesper unit

50–750 WMS1 motors

EtherCATCiA 402 motion profile

SIL 3Safe Torque Off

Enquire on WhatsApp Call +91 84488 04419

Compact multi-axis

3- or 4-axis versions with a common power supply
Small footprint, ideal for robot applications
Power supply 1–2 kW
Axis modules (single/double): 1.1–7.6 A

Performance & motors

Ultra-fast current loop with high dynamic response
Designed for MS1 servo motors, 50–750 W
Easy commissioning and installation

Connectivity & safety

EtherCAT and CANopen (CiA 402 motion profile)
STO SIL 3 to EN/IEC 61800-5-2
CE compliant

Technical specifications

Configurations	3-axis or 4-axis
Power supply	1–2 kW (shared)
Axis module current	1.1–7.6 A (single / double units)
Matching motors	MS1 series, 50–750 W
Communication	EtherCAT, CANopen (CiA 402)
Control	Ultra-fast current loop
Safety	STO SIL 3 to EN/IEC 61800-5-2
Protection	IP67 (as listed by Inovance)
Certifications	CE

Specifications may change; confirm with us before ordering.

Inovance · Servo drive · EtherCAT · single axis

IS620N EtherCAT Servo Drive

A proven EtherCAT servo drive for industrial machines, from 0.1 to 7.5 kW on 220 V and 380 V supplies. Built-in keypad, PC tuning software and automatic tuning and vibration-suppression functions make set-up quick and smooth.

0.1–7.5 kWpower range

1.2 kHzspeed-loop bandwidth

EtherCATcommunication

220 / 380 Vsupply options

Enquire on WhatsApp Call +91 84488 04419

Easy commissioning

Built-in keypad for direct operation
Fine tuning with PC software (InoServoShop)
Online and offline inertia auto-tuning
Automatic gain tuning

Smooth motion

Speed-loop bandwidth up to 1.2 kHz
Adaptive notch filter
Automatic / manual damping filter for low-frequency resonance

Supply & connectivity

1-ph 220 V, 3-ph 220 V and 3-ph 380 V
EtherCAT communication
CE compliant

Technical specifications

Supply	1-ph 220 V · 3-ph 220 V · 3-ph 380 V
Power range	0.1–7.5 kW
Communication	EtherCAT
Speed-loop bandwidth	Up to 1.2 kHz
Tuning	Inertia auto-tuning (online/offline), automatic gain tuning
Vibration suppression	Adaptive notch filter, damping filter
Operation	Built-in keypad · InoServoShop PC software
Certifications	CE

Specifications may change; confirm with us before ordering.

Inovance · Servo motors · high dynamic

MS1 Series Servo Motors

A highly dynamic servo motor range with a wide choice of power ratings, flanges and brake options. A small footprint reduces overall machine size, and a 23-bit encoder gives precise, smooth motion.

0.16–47 Nmtorque range

23-bitencoder, ±15 arc-sec

Up to 350%peak torque

IP67protection

Enquire on WhatsApp Call +91 84488 04419

MS1H1 / H4 series

0.16 to 3.2 Nm
Up to 350% maximum peak torque
Torque ripple below 0.5%
Easy motor and encoder connections

MS1H2 / H3 series

3.2 to 47 Nm
Up to 300% maximum peak torque
Torque ripple below 1%

All MS1 motors

23-bit encoder feedback, ±15 arc-seconds
IP67 protection
Flange and brake options
Small footprint for compact machines
Complies with CE and UL

Technical specifications

MS1H1 / H4 torque	0.16–3.2 Nm
MS1H2 / H3 torque	3.2–47 Nm
Peak torque	Up to 350% (H1/H4) · up to 300% (H2/H3)
Torque ripple	< 0.5% (H1/H4) · < 1% (H2/H3)
Encoder	23-bit, ±15 arc-seconds
Protection	IP67
Options	Flange sizes and holding brake
Certifications	CE, UL

Specifications may change; confirm with us before ordering.

Inovance · Servo motors · servo pump

ISMG Series Servo Motors

Servo motors designed for energy-saving servo-pump systems, such as hydraulic injection-moulding machines. An interior permanent-magnet rotor, forced ventilation and robust resolver feedback give high overload capacity and reliable, efficient operation.

Servo pumpenergy-saving hydraulics

IPM rotorhigh efficiency

Resolverrobust feedback

PTC + KTYtemperature protection

Enquire on WhatsApp Call +91 84488 04419

Performance

High overload capacity
Interior permanent-magnet (IPM) rotor for excellent electromagnetic performance
Lower iron and copper losses for higher efficiency

Reliability

Robust resolver feedback
Forced ventilation cooling
Efficient design prevents overheating and reduces demagnetisation risk

Temperature protection

Three PTCs in series for consistent protection
KTY sensor for precise temperature monitoring

Technical specifications

Application	Energy-saving servo-pump systems
Rotor	Interior permanent magnet (IPM)
Feedback	Resolver
Cooling	Forced ventilation
Temperature sensors	3 × PTC in series, KTY
Overload	High overload capacity

Specifications may change; confirm with us before ordering.

Inovance · PLC · compact · economical

H1U Series PLC

An economical, easy-to-use compact PLC with the CPU and power supply in one unit. Built-in positioning, high-speed I/O and three communication ports make it a smart choice for small machines and simple automation tasks.

8,000 stepsprogram memory

60 kHzhigh-speed inputs

100 kHzhigh-speed outputs

3 portsUSB · CANlink · Modbus RTU

Enquire on WhatsApp Call +91 84488 04419

Control

All-in-one CPU and power supply
Local and remote I/O
Motion and positioning control
Multi-channel high-frequency I/O

Communication

USB programming port
Three communication ports
CANlink and Modbus RTU
Configurable communications

Reliable & secure

Program memory up to 8,000 steps
Automatic data backup on power loss
Real-time clock kept for one week without a battery
High-security program encryption

Technical specifications

Type	Compact PLC, all-in-one CPU and power supply
Program memory	Up to 8,000 steps
High-speed inputs	Up to 60 kHz
High-speed outputs	Up to 100 kHz
I/O	Local and remote I/O
Ports	USB + 3 communication ports
Protocols	CANlink, Modbus RTU
Memory backup	Automatic on power loss · RTC held 1 week, no battery
Security	Program encryption

Specifications may change; confirm with us before ordering.

Inovance · PLC · high performance · motion control

H3U Series PLC

A high-performance PLC with built-in motion control. Fast 100 ns instructions, 64,000 program steps and very high-speed I/O make it well suited to multi-axis machines, with electronic CAM and interpolation on the high-end model.

100 nsper basic instruction

64k stepsprogram capacity

200 / 500 kHzhigh-speed in / out

3-axis CAMhigh-end model

Enquire on WhatsApp Call +91 84488 04419

Performance

Combined CPU and power supply, local and remote I/O
Basic instruction speed 100 ns
Program capacity 64,000 steps
High-speed inputs up to 200 kHz, outputs up to 500 kHz
Operates in ambient temperatures up to 45 °C

Motion control

Standard model: 2-axis circular and point-to-point interpolation
High-end model: 3-axis electronic CAM
3-axis point-to-point interpolation and spiral motion

Connectivity & programming

Ethernet (Modbus TCP) and RS485 (Modbus RTU)
CANopen and CANlink
IEC 61131-3: ladder, instruction list, SFC
AutoShop PC programming software

Technical specifications

Instruction speed	100 ns / basic instruction
Program capacity	64,000 steps
High-speed I/O	Inputs up to 200 kHz · outputs up to 500 kHz
Local I/O	192 digital · 24 analog
Remote I/O	7,936 digital · 1,488 analog
Device memory	M 9,216 · T 512 · C 256 · D 9,552 · R 32,768
Motion	2-axis interpolation (standard) · 3-axis CAM (high-end)
Communication	Ethernet Modbus TCP, RS485 Modbus RTU, CANopen, CANlink
Languages	Ladder, instruction list, SFC (IEC 61131-3)
Software	AutoShop
Ambient	Up to 45 °C

Specifications may change; confirm with us before ordering.

Inovance · PLC · compact · EtherCAT

H5U Series PLC

A high-performance, compact EtherCAT PLC for industrial automation. PLCopen axis control, a real-time fieldbus and 16 inputs and 14 outputs on the main unit make it a strong base for servo-driven machines.

EtherCATreal-time fieldbus

16 / 14inputs / outputs

PLCopenaxis control

Offlinesimulation mode

Enquire on WhatsApp Call +91 84488 04419

Motion control

PLCopen-compliant axis control
Real-time EtherCAT fieldbus
High-speed inputs and outputs built in

Compact & easy

Compact footprint
Main unit with 16 inputs and 14 outputs
Simulation mode for offline debugging

Connectivity

EtherCAT
CANlink and CANopen
Modbus RTU
Remote expansion with GL20 I/O

Technical specifications

Main unit I/O	16 inputs, 14 outputs (incl. high-speed)
Fieldbus	EtherCAT (real-time)
Axis control	PLCopen compliant
Communication	CANlink, CANopen, Modbus RTU
Debugging	Offline simulation mode
Expansion	GL20 remote I/O

Specifications may change; confirm with us before ordering.

Inovance · PLC · compact · EtherCAT

Easy Series PLC

A complete range of compact, high-performance EtherCAT PLCs, from the simplest controller to advanced motion control. PLCopen axis control, interpolation and CAM tables, and modern ST, LD and SFC programming make machines faster to build and easier to scale.

EtherCATreal-time fieldbus

PLCopenaxis control

ST · LD · SFClanguages

CAMand interpolation

Enquire on WhatsApp Call +91 84488 04419

Motion control

PLCopen-compliant axis control
Axis groups for linear and circular interpolation
CAM table functionality
Real-time EtherCAT fieldbus

Programming

ST, LD and SFC languages
Function blocks and functions for reusable, scalable code
Simulation mode for offline debugging

Range & connectivity

Complete range from basic to advanced motion PLCs
Compact footprint
Modbus RTU/TCP, EtherNet/IP scanner, CANopen (optional)
Local and remote expansion with GL20 I/O

Technical specifications

Fieldbus	EtherCAT (real-time)
Axis control	PLCopen · linear & circular interpolation · CAM tables
Languages	ST, LD, SFC
Communication	Modbus RTU/TCP, EtherNet/IP (scanner), CANopen (optional)
Debugging	Offline simulation mode
Expansion	GL20 local and remote I/O

Specifications may change; confirm with us before ordering.

Inovance · I/O · expansion · remote

GL20 I/O Modules

Compact, stable and reliable I/O expansion modules with ultra-fast response. Use them locally on Easy series PLCs, or remotely with H5U, AM600, AC700 and AC800 through EtherCAT, PROFINET, EtherNet/IP and IO-Link couplers.

125 µsmin. EtherCAT cycle

100 µsDI/DO response

62.5 µsAI/AO capture

16 modulesper coupler

Enquire on WhatsApp Call +91 84488 04419

Fast & reliable

Ultra-fast response
DI/DO hardware response within 100 µs
AI/AO capture cycle down to 62.5 µs
Stable, reliable design

Easy installation

Compact size
Tool-free wiring
Digital, analog and temperature modules

Expansion options

Local and remote expansion for Easy series
Remote expansion for AC700, AC800, H5U and AM600
EtherCAT, PROFINET, EtherNet/IP and IO-Link couplers
Up to 16 modules per coupler

Technical specifications

Module types	Digital I/O, analog I/O, temperature
Couplers	EtherCAT, PROFINET, EtherNet/IP, IO-Link
Modules per coupler	Up to 16
EtherCAT cycle	Min. 125 µs
DI/DO response	Within 100 µs
AI/AO capture	Up to 62.5 µs
Compatible CPUs	Easy series (local/remote), H5U, AM600, AC700, AC800 (remote)
Wiring	Tool-free

Specifications may change; confirm with us before ordering.

Inovance · HMI · touch panel · IIoT ready

IT7000 Series HMI

Touch-screen operator panels in 7", 10" and 15" sizes with high-end functionality and easy connection to any machine control system. Built-in Ethernet and serial ports, remote access and IIoT protocols make it ready for modern, connected machines.

7" · 10" · 15"display sizes

MQTTIIoT ready

OPC UAand Modbus RTU/TCP

VNCremote access

Enquire on WhatsApp Call +91 84488 04419

Display & connectivity

7", 10" and 15" display sizes
Built-in Ethernet and serial ports
USB and micro-SD card for easy data management

Remote & IIoT

VNC remote access, including from mobile devices
IIoT ready with MQTT, connects to any server
OPC UA and Modbus RTU/TCP protocols

Flexible programming

JavaScript for custom plug-ins
Create dedicated communication protocols
Easy integration with any machine control system

Technical specifications

Display sizes	7", 10", 15"
Ports	Ethernet, serial, USB, micro-SD
Protocols	OPC UA, Modbus RTU, Modbus TCP, MQTT
Remote access	VNC (incl. mobile devices)
Scripting	JavaScript plug-ins and custom protocols
Successor	ITS7000 series (faster boot-up)

Specifications may change; confirm with us before ordering.

Inovance · HMI · next generation · high resolution

ITS7000 Series HMI

Intelligent visualisation for smarter machine control. The next-generation ITS7000 HMI delivers fast, reliable and intuitive operation, with powerful hardware, a high-resolution touch display and flexible communication for easy integration with PLCs and drives.

8 sboot-up time

~50%faster than IT7000

Standard / Hhigh-resolution variant

2 colourslight & dark grey

Enquire on WhatsApp Call +91 84488 04419

Performance

High-performance processing for smooth, quick response
Boots in about 8 seconds, around 50% faster than IT7000
High-resolution touch display for clear, real-time monitoring

Integration

Multiple communication ports and protocol support
Easy connection to PLCs and automation devices
User-friendly engineering software for faster projects
Built-in PDF viewer for documentation (coming)

Industrial design

Industrial-grade design for demanding environments
Standard and high-resolution (H) variants
Light grey and dark grey housings
ITS7043 model with or without Ethernet port (coming soon)

Technical specifications

Boot-up time	Approx. 8 s (~50% faster than IT7000)
Display	High-resolution touch screen
Variants	Standard and high-resolution (H)
Colours	Light grey, dark grey
Communication	Multiple ports, wide protocol support
Software	User-friendly engineering software
Applications	Packaging, plastics, textile, machine tools, material handling, general automation

Specifications may change; confirm with us before ordering.

Inovance · Motion controller · CODESYS · EtherCAT

AM521 / AM522 Motion Controllers

High-performance, compact EtherCAT controllers built on CODESYS. A quad-core processor, PLCopen axis control and up to 16 synchronised EtherCAT axes make them ideal for packaging, handling and other multi-axis machines.

16 axesEtherCAT synchronised (AM522)

127EtherCAT slaves

Quad-coreprocessor

200 kHz8 high-speed inputs

Enquire on WhatsApp Call +91 84488 04419

Motion control

Up to 16 synchronised EtherCAT axes (AM522)
PLCopen-compliant axis control
Axis groups for linear and circular interpolation
4 pulse axes and up to 30 CANopen PTP axes (optional card)

Performance & I/O

Quad-core processor
Real-time multiprotocol EtherCAT, up to 127 slaves
4 encoder inputs
8 high-speed inputs up to 200 kHz

Programming & expansion

IEC 61131-3 CODESYS software
2 expansion slots
Up to 16 GL20 local expansion modules
Remote I/O via GL20-RTU-ECT EtherCAT coupler

Technical specifications

Processor	Quad-core
EtherCAT axes	16 synchronised (AM522)
EtherCAT slaves	Up to 127
Other axes	4 pulse axes · 30 CANopen PTP axes (optional card)
Interpolation	Linear and circular (axis groups)
Inputs	4 encoder inputs · 8 high-speed inputs up to 200 kHz
Expansion	2 slots · up to 16 GL20 local modules · GL20-RTU-ECT remote
Programming	CODESYS, IEC 61131-3, PLCopen

Specifications may change; confirm with us before ordering.

Inovance · Motion controller · built-in PLC · 32 axes

AM600 Motion Controller

A centralised motion controller with built-in PLC functionality. EtherCAT motion for up to 32 axes, built-in high-speed I/O and a modular rack of I/O modules make it a powerful base for complex, multi-axis machines.

32 axesEtherCAT motion

16 / 8high-speed in / out

8AB-phase counters

CODESYSInoProShop

Enquire on WhatsApp Call +91 84488 04419

Motion control

EtherCAT multi-axis motion, up to 32 axes
4 groups of pulse positioning
PLCopen: linear, circular and helical interpolation
CAM profiles and robot kinematics

I/O

16 inputs and 8 outputs, high-speed, built in
8 AB-phase high-speed counters
Add I/O modules to the main CPU rack
Extra I/O through EtherCAT extended rack

Connectivity & software

LAN: EtherNet/IP and Modbus TCP
2 × RS485 with Modbus RTU master/slave
CANopen / CANlink interface
IEC 61131-3 CODESYS with InoProShop · CE

Technical specifications

Axes	Up to 32 (EtherCAT)
Built-in I/O	16 high-speed inputs, 8 high-speed outputs
Counters	8 AB-phase high-speed counters
Pulse positioning	4 groups
Motion functions	Linear/circular/helical interpolation, CAM, robot kinematics
Communication	EtherNet/IP, Modbus TCP, 2 × RS485 Modbus RTU, CANopen, CANlink
Expansion	Local I/O modules · EtherCAT extended rack
Programming	CODESYS, IEC 61131-3 (InoProShop)
Certifications	CE

Specifications may change; confirm with us before ordering.

Inovance · IPC · CODESYS · up to 256 axes

AC8XX Intelligent Machine Controller (IPC)

An intelligent machine controller built on an Intel Core i5 processor with LinuxRT and CODESYS. It controls up to 256 EtherCAT axes with PLCopen, CAM, CNC and robot motion, for the most complex machines.

256 axesEtherCAT motion

Core i5Intel processor

LinuxRT+ CODESYS

DualEtherCAT master / redundancy

Enquire on WhatsApp Call +91 84488 04419

Computing power

High-performance Intel Core i5 processor
LinuxRT and CODESYS platform
Six IEC 61131-3 programming languages, PLCopen

Motion & I/O

EtherCAT multi-axis motion, up to 256 axes
PLCopen, CAM, CNC and robot motion components
EtherCAT high-speed and standard I/O expansion
Dual EtherCAT master or EtherCAT redundancy

Connectivity

Multiple LAN ports: EtherNet/IP, OPC UA, Modbus TCP
RS485 and RS232 with Modbus RTU master/slave
CE compliant

Technical specifications

Processor	Intel Core i5
Platform	LinuxRT + CODESYS
Axes	Up to 256 (EtherCAT)
Motion	PLCopen, CAM, CNC, robot kinematics
EtherCAT	Dual master or redundancy
Communication	EtherNet/IP, OPC UA, Modbus TCP, RS485/RS232 Modbus RTU
Programming	6 IEC 61131-3 languages
Models	AC800 series, e.g. AC810
Certifications	CE

Specifications may change; confirm with us before ordering.

Inovance · Controller + HMI · 15" · 32 axes

AP7XX Integrated Controller & Display

An intelligent controller and 15-inch display in one unit. PLC and HMI work together for fast response, with visual programming and synchronised motion control for up to 32 axes, ideal for machines such as injection-moulding systems.

32 axes1 ms synchronisation

500 µsmin. bus cycle

15"touch screen

Fan-freedesign

Enquire on WhatsApp Call +91 84488 04419

Controller + HMI

PLC and HMI integrated for fast response
Integrated visual programming
Multi-axis motion control with visual editing

Performance

Minimum bus cycle 500 µs
1 ms synchronisation for 32 axes
Fan-free design

Operation & installation

15-inch resistive touch screen
Backplate, pillar or cantilever mounting
Standard keyboard/mouse, USB disk access
Optional programmable keypad (e.g. AP702) · CE

Technical specifications

Type	Integrated controller + HMI
Display	15" resistive touch screen
Axes	Up to 32, 1 ms synchronisation
Bus cycle	Min. 500 µs
Cooling	Fan-free
Mounting	Backplate, pillar, cantilever
Peripherals	Keyboard, mouse, USB disk · optional keypad
Certifications	CE

Specifications may change; confirm with us before ordering.

Inovance · I/O · local and remote · EtherCAT

GL10 / GR10 EtherCAT I/O Modules

A flexible family of EtherCAT I/O modules combining advanced functions with a compact footprint. GL10 expands H3U, H5U, AM400 and AM600 locally, while GR10 provides distributed high-speed I/O over EtherCAT.

16 chdigital I/O modules

16-bitanalog I/O

16 / 8DI-DO / AI-AO per coupler

EtherCATdistributed I/O

Enquire on WhatsApp Call +91 84488 04419

Two series

GL10: local expansion for H3U, H5U, AM400, AM600
GR10: distributed high-speed EtherCAT modules
Also works with other EtherCAT masters

Module range

16 × digital inputs, 24 V DC
16 × digital outputs: PNP 0.5 A / NPN 0.2 A
16 × relay outputs, 110/220 V AC or 24 V DC, max 2 A
4 × analog in / out, ±10 V, 16-bit, 1 ms
Temperature and counter modules

EtherCAT coupler

Up to 16 DI/DO modules or 8 AI/AO modules per coupler
Compact footprint
CE compliant

Technical specifications

Digital inputs	16 ch, 24 V DC
Digital outputs	16 ch PNP 24 V/0.5 A · 16 ch NPN 24 V/0.2 A
Relay outputs	16 ch, 110/220 V AC or 24 V DC, max 2 A
Analog I/O	4 ch in / 4 ch out, ±10 V, 16-bit, 1 ms
Special modules	Temperature, counter
Coupler capacity	Up to 16 DI/DO or 8 AI/AO modules
Local expansion (GL10)	H3U, H5U, AM400, AM600
Certifications	CE

Specifications may change; confirm with us before ordering.

Inovance · SCARA robot

IR-S4 SCARA Robot

A compact, fast 4 kg SCARA with 400 mm reach and ±0.01 mm repeatability, ideal for small-part assembly and pick-and-place.

4 kgmax. load

400 mmarm length

±0.01 mmrepeatability

0.342 sstandard cycle

Enquire on WhatsApp Call +91 84488 04419

Speed & precision

High-speed, high-precision 4-axis SCARA
Vibration reduction for stable, fast motion
High-precision control for loading, unloading and fitting

Smart functions

Collision detection protects robot and tooling
Dynamic conveyor tracking with vision
Position-, time- and distance-based dynamic I/O

Typical uses

Assembly, pick-and-place and sorting
3C electronics, lithium battery and PV lines
Dispensing, testing and packaging

Technical specifications

Models	IR-S4-40Z15S-INT
Arm length (J1+J2)	400 mm
Load	Rated 2 kg · max. 4 kg
Repeatability	±0.01 mm (J1+J2) · ±0.01 mm (J3)
Max. speed	J1+J2 7,200 mm/s · J3 1,300 mm/s · J4 2,600 °/s
J3 stroke	150 mm
Standard cycle time	0.342 s
Weight	12 kg
Mounting base	120 × 120 mm (4-Φ9)
Controller	IRCB501-4AD-INT
Ambient temperature	5–40 °C (no excessive temperature changes)
Relative humidity	10–80%
Cable	Standard 3 m or 5 m · optional 3/5/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function

Specifications may change; confirm with us before ordering.

Inovance · SCARA robot

IR-S7 SCARA Robot

A 7 kg SCARA in three reach sizes from 500 to 700 mm, balancing speed, precision and payload for general assembly and handling.

7 kgmax. load

500–700 mmarm length

±0.02 mmrepeatability

0.351 sfastest cycle

Enquire on WhatsApp Call +91 84488 04419

Speed & precision

High-speed, high-precision 4-axis SCARA
Vibration reduction for stable, fast motion
High-precision control for loading, unloading and fitting

Smart functions

Collision detection protects robot and tooling
Dynamic conveyor tracking with vision
Position-, time- and distance-based dynamic I/O

Typical uses

Assembly, pick-and-place and sorting
3C electronics, lithium battery and PV lines
Dispensing, testing and packaging

Technical specifications

Models	IR-S7-50Z20S-INT · IR-S7-60Z20S-INT · IR-S7-70Z20S-INT
Arm length (J1+J2)	500 / 600 / 700 mm
Load	Rated 3 kg · max. 7 kg
Repeatability	±0.02 mm (J1+J2) · ±0.01 mm (J3)
Max. speed	J1+J2 7,120–8,590 mm/s · J3 1,600 mm/s · J4 2,000 °/s
J3 stroke	200 mm
Standard cycle time	0.351 / 0.36 / 0.375 s
Weight	17 / 17.5 / 19 kg
Mounting base	150 × 150 mm (4-Φ9)
Controller	IRCB501-4CD-INT
Ambient temperature	5–40 °C (no excessive temperature changes)
Relative humidity	10–80%
Cable	Standard 3 m or 5 m · optional 3/5/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function

Specifications may change; confirm with us before ordering.

Inovance · SCARA robot

IR-S10 SCARA Robot

A 10 kg SCARA with up to 800 mm reach and speeds above 10,000 mm/s, for heavier parts and larger work areas.

10 kgmax. load

600–800 mmarm length

10,500 mm/smax. speed

±0.02 mmrepeatability

Enquire on WhatsApp Call +91 84488 04419

Speed & precision

High-speed, high-precision 4-axis SCARA
Vibration reduction for stable, fast motion
High-precision control for loading, unloading and fitting

Smart functions

Collision detection protects robot and tooling
Dynamic conveyor tracking with vision
Position-, time- and distance-based dynamic I/O

Typical uses

Assembly, pick-and-place and sorting
3C electronics, lithium battery and PV lines
Dispensing, testing and packaging

Technical specifications

Models	IR-S10-60Z20S-INT · IR-S10-70Z20S-INT · IR-S10-80Z20S-INT
Arm length (J1+J2)	600 / 700 / 800 mm
Load	Rated 5 kg · max. 10 kg
Repeatability	±0.02–0.025 mm (J1+J2) · ±0.01 mm (J3)
Max. speed	J1+J2 9,100–10,500 mm/s · J3 1,600 mm/s · J4 2,700 °/s
J3 stroke	200 mm
Standard cycle time	0.361 / 0.386 / 0.416 s
Weight	18.5 / 19 / 20.5 kg
Mounting base	150 × 150 mm (4-Φ9)
Controller	IRCB501-4CD-INT
Ambient temperature	5–40 °C (no excessive temperature changes)
Relative humidity	10–80%
Cable	Standard 3 m or 5 m · optional 3/5/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function

Specifications may change; confirm with us before ordering.

Inovance · SCARA robot

IR-S25 SCARA Robot

A heavy-duty 25 kg SCARA with reach up to 1,200 mm and a 420 mm Z-stroke, for large parts and wide work envelopes.

25 kgmax. load

800–1200 mmarm length

420 mmJ3 stroke

0.33 sfastest cycle

Enquire on WhatsApp Call +91 84488 04419

Speed & precision

High-speed, high-precision 4-axis SCARA
Vibration reduction for stable, fast motion
High-precision control for loading, unloading and fitting

Smart functions

Collision detection protects robot and tooling
Dynamic conveyor tracking with vision
Position-, time- and distance-based dynamic I/O

Typical uses

Assembly, pick-and-place and sorting
3C electronics, lithium battery and PV lines
Dispensing, testing and packaging

Technical specifications

Models	IR-S25-80Z42S-INT · IR-S25-100Z42S-INT · IR-S25-120Z42S-INT
Arm length (J1+J2)	800 / 1,000 / 1,200 mm
Load	Rated 10 kg · max. 25 kg
Repeatability	±0.05–0.08 mm (J1+J2) · ±0.01 mm (J3)
Max. speed	J1+J2 8,100–9,400 mm/s · J3 2,100 mm/s · J4 705 °/s
J3 stroke	420 mm
Standard cycle time	0.33 / 0.35 / 0.4 s
Weight	68.5 / 72.5 / 78 kg
Mounting base	200 × 200 mm (4-Φ16)
Controller	IRCB501-4ED-INT
Ambient temperature	5–40 °C (no excessive temperature changes)
Relative humidity	10–80%
Cable	Standard 3 m or 5 m · optional 3/5/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function · optional cleanliness class 4

Specifications may change; confirm with us before ordering.

Inovance · SCARA robot

IR-S35 SCARA Robot

A 35 kg high-payload SCARA with up to 1,200 mm reach for heavy handling, palletising and large assemblies.

35 kgmax. load

800–1200 mmarm length

420 mmJ3 stroke

0.31 sfastest cycle

Enquire on WhatsApp Call +91 84488 04419

Speed & precision

High-speed, high-precision 4-axis SCARA
Vibration reduction for stable, fast motion
High-precision control for loading, unloading and fitting

Smart functions

Collision detection protects robot and tooling
Dynamic conveyor tracking with vision
Position-, time- and distance-based dynamic I/O

Typical uses

Assembly, pick-and-place and sorting
3C electronics, lithium battery and PV lines
Dispensing, testing and packaging

Technical specifications

Models	IR-S35-80Z42S-INT · IR-S35-100Z42S-INT · IR-S35-120Z42S-INT
Arm length (J1+J2)	800 / 1,000 / 1,200 mm
Load	Rated 20 kg · max. 35 kg
Repeatability	±0.05–0.08 mm (J1+J2) · ±0.01 mm (J3)
Max. speed	J1+J2 8,100–9,400 mm/s · J3 1,200–2,100 mm/s · J4 705 °/s
J3 stroke	420 mm
Standard cycle time	0.31 / 0.33 / 0.42 s
Weight	70.5 / 74.5 / 80.5 kg
Mounting base	200 × 200 mm (4-Φ16)
Controller	IRCB501-4ED-INT
Ambient temperature	5–40 °C (no excessive temperature changes)
Relative humidity	10–80%
Cable	Standard 3 m or 5 m · optional 3/5/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function · optional cleanliness class 4

Specifications may change; confirm with us before ordering.

Inovance · SCARA robot

IR-S60 & IR-GS60 SCARA Robots

The heaviest Inovance SCARA: 60 kg payload and 1,200 mm reach, with ±0.005° J4 repeatability for demanding heavy-part handling.

60 kgmax. load

1200 mmarm length

400 mmJ3 stroke

±0.05 mmrepeatability

Enquire on WhatsApp Call +91 84488 04419

Speed & precision

High-speed, high-precision 4-axis SCARA
Vibration reduction for stable, fast motion
High-precision control for loading, unloading and fitting

Smart functions

Collision detection protects robot and tooling
Dynamic conveyor tracking with vision
Position-, time- and distance-based dynamic I/O

Typical uses

Assembly, pick-and-place and sorting
3C electronics, lithium battery and PV lines
Dispensing, testing and packaging

Technical specifications

Models	IR-S60-120Z40S-INT · IR-GS60-120Z40S-INT
Arm length (J1+J2)	1,200 mm
Load	Rated 30 kg · max. 60 kg
Repeatability	±0.05 mm (J1+J2) · ±0.02 mm (J3) · ±0.005° (J4)
Max. speed	J1+J2 7,400 mm/s · J3 1,500 mm/s · J4 600 °/s
J3 stroke	400 mm
Standard cycle time	0.84 / 0.67 s
Weight	136 kg
Mounting base	200 × 200 mm (4-Φ14)
Controller	IRCB501-4MD-INT
Ambient temperature	5–40 °C (no excessive temperature changes)
Relative humidity	10–80%
Cable	Standard 3 m or 5 m · optional 3/5/10/15 m, high-flex
Certification	CE, cSGSus, FCC, safety function

Specifications may change; confirm with us before ordering.

Inovance · SCARA robot

IR-TS4 & IR-TS5 Inverted SCARA Robots

Ceiling-mounted SCARA robots with ±225° joints, reaching all around their base. They save floor space and suit compact cells.

4–5 kgmax. load

350–550 mmarm length

±225°J1/J2 range

±0.01 mmrepeatability

Enquire on WhatsApp Call +91 84488 04419

Speed & precision

High-speed, high-precision 4-axis SCARA
Vibration reduction for stable, fast motion
High-precision control for loading, unloading and fitting

Smart functions

Collision detection protects robot and tooling
Dynamic conveyor tracking with vision
Position-, time- and distance-based dynamic I/O

Typical uses

Assembly, pick-and-place and sorting
3C electronics, lithium battery and PV lines
Dispensing, testing and packaging

Technical specifications

Models	IR-TS4-35Z15S-INT · IR-TS5-55Z15S-INT
Arm length (J1+J2)	350 / 550 mm
Load	Rated 2 kg · max. 4 / 5 kg
Repeatability	±0.01 / ±0.015 mm (J1+J2) · ±0.01 mm (J3)
Max. speed	J1+J2 6,180 / 9,712 mm/s · J3 1,300 mm/s · J4 2,600 / 2,000 °/s
Motion range	J1/J2 ±225° · J3 150 mm · J4 ±720°
Standard cycle time	0.306 / 0.351 s
Weight	18.5 / 20 kg
Mounting base	95 × 95 × 160 mm (6-Φ6.6)
Controller	IRCB501-4CD-INT
Ambient temperature	5–40 °C (no excessive temperature changes)
Relative humidity	10–80%
Cable	Standard 3 m or 5 m · optional 3/5/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function

Specifications may change; confirm with us before ordering.

Inovance · 6-axis robot

IR-R4 & IR-R4H 6-Axis Robots

Compact 4 kg six-axis robots with about 560 mm reach and ±0.01 mm repeatability, for small-part assembly, testing and machine tending.

4 kgmax. load

561 mmmax. reach

±0.01 mmrepeatability

IP40IP67 optional

Enquire on WhatsApp Call +91 84488 04419

Flexible 6-axis motion

Vertical articulated arm with 6 axes
Curve interpolation, also with fixed-tool setups
High-precision algorithms for continuous paths

Smart functions

Collision detection at low and high speed
Vibration reduction under heavy or eccentric loads
Conveyor tracking and dynamic I/O

Typical uses

Machine tending, loading and unloading
Assembly, gluing, polishing and welding
Automotive parts, die-casting, injection moulding

Technical specifications

Models	IR-R4-56S-INT · IR-R4H-54S-INT
Max. reach	560.6 / 545.7 mm
Max. load	4 kg
Repeatability	±0.01 / ±0.02 mm
IP rating	IP40 (IP67 optional)
Max. speed	J1 450 · J2 460 · J3 520 · J4/J5 560 · J6 900 °/s
Wrist torque	J4/J5 8.86 N·m · J6 4.9 N·m
Customer wiring	12 signal lines · air Φ4 × 4
Weight	24 / 24.5 kg
Controller	IRCB501-6LD-INT
Mounting	Floor, ceiling or wall
Structure	Vertical articulated, 6 axes
Ambient temperature	0–45 °C
Cable	Standard 5 m · optional 3/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function · optional cleanliness class 3

Specifications may change; confirm with us before ordering.

Inovance · 6-axis robot

IR-R7H 6-Axis Robot

A 7 kg six-axis robot in 700 and 900 mm reach versions, for assembly, handling and machine tending.

7 kgmax. load

912 mmmax. reach

±0.015 mmrepeatability

IP40IP67 optional

Enquire on WhatsApp Call +91 84488 04419

Flexible 6-axis motion

Vertical articulated arm with 6 axes
Curve interpolation, also with fixed-tool setups
High-precision algorithms for continuous paths

Smart functions

Collision detection at low and high speed
Vibration reduction under heavy or eccentric loads
Conveyor tracking and dynamic I/O

Typical uses

Machine tending, loading and unloading
Assembly, gluing, polishing and welding
Automotive parts, die-casting, injection moulding

Technical specifications

Models	IR-R7H-70S-INT · IR-R7H-90S-INT
Max. reach	722.3 / 911.9 mm
Max. load	7 kg
Repeatability	±0.015 / ±0.02 mm
IP rating	IP40 (IP67 optional)
Max. speed	J1 420/336 · J6 764.7 °/s
Wrist torque	J4/J5 16.9 N·m · J6 9.4 N·m
Customer wiring	17 signal lines · air Φ4 × 4
Weight	31 / 33 kg
Controller	IRCB501-6LD-INT
Mounting	Floor, ceiling or wall
Structure	Vertical articulated, 6 axes
Ambient temperature	0–45 °C
Cable	Standard 5 m · optional 3/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function · optional cleanliness class 3

Specifications may change; confirm with us before ordering.

Inovance · 6-axis robot

IR-R11 6-Axis Robot Series

Mid-size six-axis robots carrying 10–11.3 kg with 900–1,200 mm reach, versatile for handling, assembly and processing.

11.3 kgmax. load

1201 mmmax. reach

±0.02 mmrepeatability

IP40IP67 optional

Enquire on WhatsApp Call +91 84488 04419

Flexible 6-axis motion

Vertical articulated arm with 6 axes
Curve interpolation, also with fixed-tool setups
High-precision algorithms for continuous paths

Smart functions

Collision detection at low and high speed
Vibration reduction under heavy or eccentric loads
Conveyor tracking and dynamic I/O

Typical uses

Machine tending, loading and unloading
Assembly, gluing, polishing and welding
Automotive parts, die-casting, injection moulding

Technical specifications

Models	IR-R11-90S-INT · IR-R10-110S-INT · IR-R10H-120S-INT
Max. reach	901.9 / 1,101.6 / 1,201.2 mm
Max. load	11.3 / 10 / 10 kg
Repeatability	±0.02–0.025 mm
IP rating	IP40 (IP67 optional)
Max. speed	J1 240 · J4 450 · J6 720 °/s
Wrist torque	J4/J5 18.59–20.45 N·m · J6 9.8–10.8 N·m
Customer wiring	12–17 signal lines · air Φ4 × 4
Weight	45 / 48 / 50 kg
Controller	IRCB501-6FD-INT
Mounting	Floor, ceiling or wall
Structure	Vertical articulated, 6 axes
Ambient temperature	0–45 °C
Cable	Standard 5 m · optional 3/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function · optional cleanliness class 3

Specifications may change; confirm with us before ordering.

Inovance · 6-axis robot

IR-R15H 6-Axis Robot Series

Six-axis robots with 15–20 kg payload and up to 1,455 mm reach, for heavier handling, machine tending and palletising.

20 kgmax. load

1455 mmmax. reach

±0.04 mmrepeatability

IP40IP67 optional

Enquire on WhatsApp Call +91 84488 04419

Flexible 6-axis motion

Vertical articulated arm with 6 axes
Curve interpolation, also with fixed-tool setups
High-precision algorithms for continuous paths

Smart functions

Collision detection at low and high speed
Vibration reduction under heavy or eccentric loads
Conveyor tracking and dynamic I/O

Typical uses

Machine tending, loading and unloading
Assembly, gluing, polishing and welding
Automotive parts, die-casting, injection moulding

Technical specifications

Models	IR-R15H-145S-K-INT · IR-R20H-120S-K-INT
Max. reach	1,455 / 1,218 mm
Max. load	15 / 20 kg
Repeatability	±0.04 mm
IP rating	IP40 (IP67 optional)
Max. speed	J1 260 · J2 240 · J6 705 °/s
Wrist torque	J4/J5 26.5 / 35 N·m · J6 12 / 20 N·m
Customer wiring	24 signal lines · air Φ6 × 4
Weight	155 / 150 kg
Controller	IRCB501-6KD-INT
Mounting	Floor, ceiling or wall
Structure	Vertical articulated, 6 axes
Ambient temperature	0–45 °C
Cable	Standard 5 m · optional 3/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function · optional cleanliness class 4

Specifications may change; confirm with us before ordering.

Inovance · 6-axis robot

IR-R10 6-Axis Robot

A long-reach 10 kg six-axis robot (1,422 mm) with IP65 body and IP67 wrist, for welding and harsh environments.

10 kgmax. load

1422 mmmax. reach

±0.05 mmrepeatability

IP65 / IP67body / wrist

Enquire on WhatsApp Call +91 84488 04419

Flexible 6-axis motion

Vertical articulated arm with 6 axes
Curve interpolation, also with fixed-tool setups
High-precision algorithms for continuous paths

Smart functions

Collision detection at low and high speed
Vibration reduction under heavy or eccentric loads
Conveyor tracking and dynamic I/O

Typical uses

Machine tending, loading and unloading
Assembly, gluing, polishing and welding
Automotive parts, die-casting, injection moulding

Technical specifications

Models	IR-R10-140S-INT
Max. reach	1,422 mm
Max. load	10 kg
Repeatability	±0.05 mm
IP rating	Body IP65 · wrist IP67
Max. speed	J1–J3 200 · J4/J5 375 · J6 600 °/s
Wrist torque	J4/J5 22 N·m · J6 9.8 N·m
Customer wiring	18 signal lines · air Φ8 × 1
Weight	130 kg
Controller	IRCB501-6ND-INT (high-protection controller)
Mounting	Floor
Structure	Vertical articulated, 6 axes
Ambient temperature	0–45 °C
Cable	Standard 5 m · optional 3/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function

Specifications may change; confirm with us before ordering.

Inovance · 6-axis robot

IR-R25 6-Axis Robot Series

Large six-axis robots with 16–25 kg payload and over 2 m reach, IP65/IP67 protected, for welding, die-casting and heavy handling.

25 kgmax. load

2107 mmmax. reach

±0.03 mmrepeatability

IP65 / IP67body / wrist

Enquire on WhatsApp Call +91 84488 04419

Flexible 6-axis motion

Vertical articulated arm with 6 axes
Curve interpolation, also with fixed-tool setups
High-precision algorithms for continuous paths

Smart functions

Collision detection at low and high speed
Vibration reduction under heavy or eccentric loads
Conveyor tracking and dynamic I/O

Typical uses

Machine tending, loading and unloading
Assembly, gluing, polishing and welding
Automotive parts, die-casting, injection moulding

Technical specifications

Models	IR-R16-210S-INT · IR-R25-178S-INT
Max. reach	2,107 / 1,783 mm
Max. load	16 / 25 kg
Repeatability	±0.03 mm
IP rating	Body IP65 · wrist IP67
Max. speed	J1 190 · J2 175 · J6 610 °/s
Wrist torque	J4/J5 25 / 50 N·m · J6 12 / 30 N·m
Customer wiring	18 signal lines · air Φ8 × 1
Weight	260 / 255 kg
Controller	IRCB501-6ND-INT (high-protection controller)
Mounting	Floor
Structure	Vertical articulated, 6 axes
Ambient temperature	0–45 °C
Cable	Standard 5 m · optional 3/10/15 m, high-flex
Certification	KCs, KC, CE, cSGSus, FCC, safety function

Specifications may change; confirm with us before ordering.

Inovance · Robot controller

IRCB501 Robot Controller

The controller for Inovance SCARA and six-axis robots. It offers EtherCAT, Ethernet and fieldbus connectivity and 16 inputs and 16 outputs, with PC, teach-pendant, remote I/O, Modbus and API control. A high-protection IP54 version is available for larger robots.

16 / 16standard I/O (NPN)

EtherCATmaster & slave

IP20 / IP54standard / high-protection

3.1–4.5 kWmax. power

Enquire on WhatsApp Call +91 84488 04419

Connectivity

Ethernet: TCP/IP, Modbus TCP, EtherNet/IP
EtherCAT slave IN, master OUT and external-axis port
RS232 / RS485 (Modbus RTU), USB 2.0
Optional PROFINET slave, CC-Link slave

Control modes

PC programming platform
Teach pendant
Remote I/O and remote Modbus control
API control

Smart robot functions

Collision detection
Vibration reduction and high-precision algorithms
Curve interpolation and fixed-tool function
Conveyor tracking and dynamic I/O

Technical specifications

Versions	IRCB501 · IRCB501 High-protection
Mounting	Vertical, horizontal, 19" rack (standard) · vertical, horizontal, rack (high-protection)
Standard I/O	16 inputs, 16 NPN outputs (expandable)
Power supply	1-ph 200–240 V AC, 10/20 A (standard) · 1-ph 200–250 V AC, 23 A (high-protection)
Max. power	3.1 kW (standard) · 4.5 kW (high-protection), depending on robot
IP rating	IP20 (standard) · IP54 + anti metal dust (high-protection)
Operating temperature	5–40 °C (standard) · 0–45 °C (high-protection)
Dimensions	330 × 338.5 × 130 mm / 330 × 400 × 130 mm (high-power) · 445 × 575 × 276 mm (high-protection)
Weight	8 / 10 kg (standard) · 30 kg (high-protection)
Robots (standard)	IR-S4/7/10/25/35/60, IR-TS4/5, IR-R4/R4H/R7H/R11/R15H
Robots (high-protection)	IR-R10, IR-R25
Expansion cards	16 NPN out · 16 in · 2-ch encoder · PROFINET · safety function · CC-Link

Specifications may change; confirm with us before ordering.

Inovance · Robot accessory

IR-TP200 Teach Pendant

A handheld teach pendant for programming and jogging Inovance robots, with a touch screen, function keys and an emergency stop.

Touchscreen + function keys

5 mcable

IP54protection

E-stopbuilt in

Enquire on WhatsApp Call +91 84488 04419

Operation

Touch-screen operation
Physical function keys
Emergency-stop button

Build

5 m cable
IP54 protection
Ergonomic handheld design

Compatibility

IRCB501 robot controllers
IRCB501 High-protection controllers

Technical specifications

Model	IR-TP200-L5-INT
Cable length	5 m
Screen	Touch screen with function keys
IP rating	IP54
Controllers	IRCB501 series, IRCB501 High-protection series

Specifications may change; confirm with us before ordering.

Delta · AC drive · standard compact

Delta MS300 Compact Drive

A compact drive with built-in PLC, many communication options and a wide power range, for machine tools, compressors, textiles, packaging, fans and pumps.

0.2–22 kWpower range

200% / 0.5 Hzlow-speed torque

2k stepsbuilt-in PLC

1,500 Hzhigh-speed model

Enquire on WhatsApp Call +91 84488 04419

Performance

Overload 150% for 60 s and 200% for 3 s
Supports IM, IPM and SPM motors
Up to 200% torque at 0.5 Hz with vector control
High-speed model up to 1,500 Hz

Built in

Integrated PLC (2k steps)
Safe Torque Off (STO) SIL2 / PL d
EMC filter (optional) · pull-out keypad
USB parameter setting without mains power

Connectivity & variants

Modbus built in
Optional CANopen, DeviceNet, EtherNet/IP, EtherCAT, PROFIBUS DP, Modbus TCP, PROFINET
Plate-mount version for custom cooling
IP66 / NEMA 4X version for harsh sites

Technical specifications

Power range	0.2–22 kW (0.25–30 HP)
Supply	115 V 1-ph · 230 V 1-ph / 3-ph · 460 V 3-ph
Output frequency	0–599 Hz standard · 0–1,500 Hz high-speed
Overload	150% / 60 s · 200% / 3 s
Motors	IM, IPM, SPM, Delta MSI
PLC	Built-in, 2k steps
Safety	STO SIL2 / PL d
Communication	Modbus built in; optional CANopen, DeviceNet, EtherNet/IP, EtherCAT, PROFIBUS DP, Modbus TCP, PROFINET
Variants	Standard, high-speed, plate-mount, IP66 / NEMA 4X
Applications	Machine tools, air compressors, textiles, woodworking, packaging, electronics, fans and pumps

Specifications may change; confirm with us before ordering.

Delta · AC drive · basic compact

Delta ME300 Basic Compact Drive

A compact drive for basic applications, with built-in braking chopper and pump functions such as sleep mode, dry-run protection and multi-pump control.

0.1–7.5 kWpower range

200% at 3 Hzlow-speed torque

Built-inbraking chopper

Multi-pumpalternate & constant pressure

Enquire on WhatsApp Call +91 84488 04419

Performance

Overload 150% for 60 s and 200% for 3 s
Supports IM, IPM and SPM motors
200% torque at 3 Hz
Pulse / PWM frequency command

Pump functions

Sleep mode and water-leak detection
Dry-run (lack-of-water) protection
Alternate operation of multiple pumps
Constant-pressure multi-pump mode

Built in

Braking chopper
EMC filter and STO SIL2 / PL d (optional)
100% conformal-coated PCB (IEC 60721-3-3 Class 3C3)
Modbus, macro quick setup, pull-out panel (optional)

Technical specifications

Power range	0.1–7.5 kW (0.125–10 HP)
Supply	115 V 1-ph · 230 V 1-ph / 3-ph · 460 V 3-ph
Output frequency	0–599 Hz
Overload	150% / 60 s · 200% / 3 s
Low-speed torque	200% at 3 Hz
Braking	Built-in braking chopper
Safety	STO SIL2 / PL d (optional)
Communication	Modbus
Applications	Logistics, food packaging, woodworking, fans and pumps, electronics, conveyors

Specifications may change; confirm with us before ordering.

Delta · AC drive · high performance

Delta MH300 High Performance Compact Drive

A high-performance compact drive for transmission and tension control, with PG feedback, built-in PLC and common DC bus on all models.

0.2–75 kWpower range

200% at 0 Hzwith PG vector control

5k stepsbuilt-in PLC

33 kHzpulse inputs

Enquire on WhatsApp Call +91 84488 04419

Drive performance

IM and PM motors with optional PG cards
200% torque at 0.5 Hz (no PG) / 0 Hz (with PG)
Closed- and open-loop tension control
Steady linear-velocity control

System support

Built-in PLC with 5k steps
STO SIL2 / PL d
Common DC bus on all models
Modbus and CANopen built in

Expansion

Two 33 kHz high-speed pulse inputs, one pulse output
Dual accessory slots: PG, I/O, communication, 24 V card
Optional EtherNet/IP, Modbus TCP, EtherCAT, DeviceNet, PROFIBUS DP, PROFINET

Technical specifications

Power range	0.2–75 kW (0.25–100 HP)
Supply	115 V 1-ph · 230 V 1-ph / 3-ph · 460 V 3-ph
Motors	IM and PM (optional PG cards)
Low-speed torque	200% at 0.5 Hz (SVC) · 200% at 0 Hz (PG vector)
PLC	Built-in, 5k steps
Safety	STO SIL2 / PL d
Communication	Modbus, CANopen built in; optional EtherNet/IP, Modbus TCP, EtherCAT, DeviceNet, PROFIBUS DP, PROFINET
Applications	Machine tools, textile, woodworking, rubber & plastic machinery, winding/unwinding

Specifications may change; confirm with us before ordering.

Delta · AC drive · economical

Delta VFD-EL-W Economical Drive

An economical sensorless vector drive for simple machines such as edge-banding, logistics conveyors, food packing and material handling.

Up to 4 kW460 V 3-ph

4 DIdigital inputs

SG+/SG-RS-485 terminals

Side-by-sideinstallation

Enquire on WhatsApp Call +91 84488 04419

I/O

4 digital inputs
1 relay output
1 analog input
1 RJ45 port, SG+/SG- terminals

Easy to use

Frequency control knob
Side-by-side, wall-mounted installation
Modbus RS-485

Applications

Edge banding
Logistics conveyors
Food packing, material handling

Technical specifications

Supply	230 V 1-ph · 460 V 3-ph (up to 4.0 kW)
Control	Sensorless vector
Digital inputs	4
Relay output	1
Analog input	1
Ports	RJ45 × 1, SG+/SG- terminals
Communication	Modbus RS-485
Installation	Wall-mounted, side-by-side
Certification	KC (EL-W-1)

Specifications may change; confirm with us before ordering.

Delta · AC drive · compact

Delta VFD-EL Compact Drive

A compact sensorless vector drive with built-in EMI filter, PID and constant pump-pressure control, for conveyors and light machinery.

0.2–3.7 kWpower range

6 DIdigital inputs

DIN-railor wall mounting

PIDconstant pressure

Enquire on WhatsApp Call +91 84488 04419

I/O

6 digital inputs, 1 relay
1 analog input, 1 analog output
RJ45 port and DC-bus terminals

Built in

EMI filter (230 V 1-ph and 460 V 3-ph models)
Constant pump-pressure and PID control
Frequency control knob

Installation

Side-by-side installation
DIN-rail or wall mounting
Modbus RS-485

Technical specifications

Power range	0.2–3.7 kW (0.25–5 HP)
Supply	115 V 1-ph · 230 V 1-ph / 3-ph · 460 V 3-ph
Control	Sensorless vector
Digital inputs	6
Outputs	1 relay, 1 analog output
Analog input	1
Communication	Modbus RS-485
Filter	Built-in EMI filter
Installation	Wall-mounted, DIN-rail
Applications	Edge banding, logistics conveyors, material handling

Specifications may change; confirm with us before ordering.

Delta · AC drive · standard / high performance

Delta C2000 Plus Vector Control Drive

Delta's high-performance vector control drive for general machines, up to 630 kW, with heavy-duty overload, built-in PLC and modular design.

0.75–630 kWpower range

180% / 3 sheavy-duty overload

10k stepsbuilt-in PLC

230–690 Vsupply classes

Enquire on WhatsApp Call +91 84488 04419

Control

Field-oriented vector control
Induction, PM and SynRM motors
Point-to-point (P2P) control
Single-point positioning for precise stops

Robust & easy

Heavy duty: 150% / 60 s and 180% / 3 s
PCB coating to Class 3C3
Modular design for easy maintenance
Start wizard, display in 9 languages

Connectivity

Built-in PLC, 10k steps
Modbus built in
Optional EtherCAT, PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, Modbus TCP, CANopen

Technical specifications

Power range	0.75–630 kW (1–850 HP)
Supply	230 V · 460 V · 575 V · 690 V, 3-ph
Overload (HD)	150% / 60 s · 180% / 3 s
Motors	Induction, PM, SynRM
PLC	Built-in, 10k steps
Protection	PCB coating, Class 3C3
Communication	Modbus built in; optional EtherCAT, PROFINET, EtherNet/IP, PROFIBUS DP, DeviceNet, Modbus TCP, CANopen
Applications	Machine tools, extruders, calender and paper machines, compressors, wire drawing, packaging

Specifications may change; confirm with us before ordering.

Delta · AC drive · fans & pumps

Delta CP2000 Fan / Pump Drive

A vector control drive for large fans and pumps, with fire and bypass modes, multi-pump control of up to 8 motors and BACnet communication.

0.75–630 kWpower range

8 motorsmulti-pump control

BACnetMS/TP built in

10k stepsPLC + RTC

Enquire on WhatsApp Call +91 84488 04419

Fan & pump modes

PID, sleep/wake-up, flying start, frequency hopping
Fire mode and bypass mode
Synchronous multi-pump control of up to 8 motors
Fixed amount / fixed time circulation

Built in

Modbus and BACnet MS/TP
LCD keypad, TPEditor home-page editing
PLC with 10k steps and real-time clock
Conformal-coated PCB, Class 3C3

Options

Supports IM, PM and SynRM motors
Delta MSI motors for IE5 systems
PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, PROFINET, BACnet IP cards

Technical specifications

Power range	0.75–630 kW (1–850 HP)
Supply	230 V · 460 V · 575 V · 690 V, 3-ph
Motors	IM, PM, SynRM, Delta MSI
Multi-pump	Up to 8 motors
PLC	Built-in, 10k steps with RTC
Communication	Modbus, BACnet MS/TP built in; optional PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, PROFINET, BACnet IP
Applications	Factory automation, HVAC, fans and pumps

Specifications may change; confirm with us before ordering.

Delta · Servo · standard

Delta ASDA-B3 AC Servo System

A standard AC servo with 24-bit absolute encoder and 3.1 kHz bandwidth, with advanced motion functions and many communication types.

24-bitabsolute encoder

3.1 kHzbandwidth

125 µssync cycle

6,700 rpmmax. speed (B3H)

Enquire on WhatsApp Call +91 84488 04419

Performance

Bandwidth up from 0.5 kHz (B2) to 3.1 kHz
Settling time reduced by 40%
Torque overload up to 3.8×
Max. 6,700 rpm (B3H, 40/60/80 frames)

Encoder & control

24-bit optical or batteryless absolute encoder
Analog feedback PID control
PT, PR and analog modes

Model types

B3: L, M (CANopen), F (DMCNET), E (EtherCAT)
B3A adds STO and dynamic brake
B3A-P: PROFINET

Technical specifications

Power	200 V: 0.1–3 kW · 400 V: 1–7.5 kW
Encoder	24-bit absolute
Bandwidth	3.1 kHz
Sync cycle	125 µs
Communication	RS-485, CANopen, DMCNET, EtherCAT, PROFINET (by type)
Safety	STO and dynamic brake (B3A)
Applications	Machine tools, electronics assembly, tool magazines, robots, packaging, labelling, semiconductor, textiles

Specifications may change; confirm with us before ordering.

Delta · Servo · high performance

Delta ASDA-A3 AC Servo System

A high-performance AC servo with 24-bit encoder (16.7 million pulses/rev), 3.1 kHz bandwidth, advanced motion control and functional safety on 400 V models.

24-bit16,777,216 p/rev

3.1 kHzbandwidth

125 µssync cycle

0.1–15 kWpower range

Enquire on WhatsApp Call +91 84488 04419

Performance

3.1× bandwidth of ASDA-A2
Sync cycle 125 µs, 8× faster than A2
Higher responsiveness, shorter settling

Motion functions

PT, PR and analog modes
Full-closed loop control, E-CAM
Linear motor support

Model types

L, M (CANopen), F (DMCNET), E (EtherCAT)
EP: functional safety (400 V)
STO on selected types

Technical specifications

Power	200 V: 0.1–15 kW · 400 V: 0.4–15 kW
Encoder	24-bit absolute, 16,777,216 pulses/rev
Bandwidth	3.1 kHz
Sync cycle	125 µs
Communication	RS-485, CANopen, DMCNET, EtherCAT (by type)
Safety	STO; functional safety on EP type (400 V)
Applications	Machine tools, electronics assembly, robots, packaging, labelling, semiconductor, textiles

Specifications may change; confirm with us before ordering.

Delta · Servo · standard

Delta ASDA-B2 AC Servo System

Delta's established standard AC servo series, widely used with DVP PLCs for pulse positioning. The ASDA-B3 is its newer successor.

0.5 kHzbandwidth

Pulsepositioning

DVPPLC compatible

Standardseries

Enquire on WhatsApp Call +91 84488 04419

Use

Pulse-train positioning
Pairs with DVP-SE2 / DVP PLCs
Upgrade path to ASDA-B3

Technical specifications

Bandwidth	0.5 kHz (per Delta B3 comparison)
Successor	ASDA-B3
Note	Full B2 ratings on request

Specifications may change; confirm with us before ordering.

Delta · Servo · E3 series

Delta ASDA-E3 AC Servo System

The ASDA-E3 series servo system from Delta. Contact us for models, ratings, price and availability.

Enquire on WhatsApp Call +91 84488 04419

Technical specifications

Note	Specifications on request

Specifications may change; confirm with us before ordering.

Delta · PLC · compact brick

Delta DVP-ES2 / EX2 Brick PLC

Standard and analog brick PLCs with integrated communication, for general machines, HVAC, injection moulding and packaging.

16–80I/O points (ES2)

16k stepsprogram

0.35 µsbasic instruction

100 kHzpulse control

Enquire on WhatsApp Call +91 84488 04419

DVP-ES2

16/20/24/32/40/60/80 I/O points
RTC runs one week without battery (HW 2.0+)
DVP32ES2-C with built-in CANopen

DVP-EX2

Built-in 12-bit 4 AI / 2 AO
Matches 14-bit analog extension modules
DVP30EX2 with temperature and PID auto-tuning

Performance

16k steps program, 10k words data
1k steps processed within 1 ms
Multi-axis 100 kHz pulse control
4-level password protection

Technical specifications

I/O	16–80 points (ES2) · built-in 4 AI / 2 AO (EX2)
Program	16k steps
Data register	10k words
Speed	0.35 µs basic instruction
Pulse control	Max. 100 kHz
Communication	RS-232/485; CANopen (DVP32ES2-C)
Applications	HVAC, injection moulding, warehousing, packaging, textiles, logistics

Specifications may change; confirm with us before ordering.

Delta · PLC · slim

Delta DVP-SS2 Slim PLC

An economical, compact slim PLC with built-in RS-232 and RS-485 and basic motion functions.

480max. I/O

8k stepsprogram

0.35 µsbasic instruction

10 kHzpulse output

Enquire on WhatsApp Call +91 84488 04419

Performance

Program 8k steps, data 5k words
0.35 µs basic instruction
Max. 480 I/O points

Communication

Built-in RS-232 and RS-485 (master/slave)
Modbus ASCII/RTU and PLC Link

Motion

4 points of 10 kHz pulse output
8 high-speed counters (20 kHz × 4, 10 kHz × 4)

Technical specifications

Max. I/O	480 points
Program	8k steps
Data register	5k words
Speed	0.35 µs
Ports	RS-232, RS-485
Protocols	Modbus ASCII/RTU, PLC Link
Pulse output	4 × 10 kHz
Counters	8 high-speed

Specifications may change; confirm with us before ordering.

Delta · PLC · slim, Ethernet

Delta DVP-SE Network Slim PLC

A network-type slim PLC with built-in Ethernet, for remote monitoring, production-line and building automation.

Ethernetbuilt in

16k stepsprogram

0.64 µsbasic instruction

15 daysRTC without battery

Enquire on WhatsApp Call +91 84488 04419

Network

Built-in Ethernet
Modbus TCP and EtherNet/IP (adapter)
IP filter against network threats

Performance

16k steps program, 12k words data
0.64 µs basic instruction

Expansion

DVP-S left- and right-side modules
DVP26SE: right-side modules only
RTC runs 15 days without battery

Technical specifications

Program	16k steps
Data register	12k words
Speed	0.64 µs
Network	Ethernet: Modbus TCP, EtherNet/IP adapter
Security	IP filter
Expansion	DVP-S left/right-side modules
Applications	Remote monitoring, production lines, building automation, printing, container filling

Specifications may change; confirm with us before ordering.

Delta · PLC · modular mid-range

Delta AS Series Modular PLC

A flexible modular mid-range PLC with 32-bit SoC CPU, CANopen motion for up to 8 axes and rackless DIN-rail design.

1,024max. I/O

128k stepsprogram

40k steps/msexecution

8 axesCANopen motion

Enquire on WhatsApp Call +91 84488 04419

CPU

32-bit SoC for high-speed computing
128k steps, 60k words data
LD 0.025 µs, MOV 0.15 µs

Motion

Up to 8 axes via CANopen, 6 axes via 200 kHz pulse
AS324MT-A: 2 axes 4 MHz + 4 axes 200 kHz
Linear and arc interpolation

Connectivity

2 × RS-485, mini USB, Ethernet, micro SD, CANopen
Up to 32 extension modules
ISPSoft & DIADesigner software

Technical specifications

Max. I/O	1,024 points
Program	128k steps
Data register	60k words
Extension	Up to 32 modules
CPU	32-bit SoC
Ports	2 × RS-485, mini USB, Ethernet, micro SD, CANopen
Motion	8 axes CANopen · 6 axes pulse (200 kHz)
Applications	Electronics manufacturing, machinery processing, food packaging

Specifications may change; confirm with us before ordering.

Delta · PLC · high-end / system

Delta AH Series PLC

A hot-swappable mid-range PLC for high-level system applications, with dual-core processor, redundancy and very large I/O capacity.

0.02 µsLD instruction

1M stepsprogram (4 MB)

4,352digital I/O

>100,000remote I/O points

Enquire on WhatsApp Call +91 84488 04419

Performance

32-bit dual-core multitasking (RTOS)
LD instruction 0.02 µs
Program up to 1M steps, 512k words data

Capacity

DIO max. 4,352 points
AIO max. 544 channels
RIO over 100,000 points
Hot-swappable modules, redundant CPU

Connectivity

Isolated RS-232/422/485, mini USB, Ethernet, SDHC
DIO, AIO, temperature, network, pulse and EtherCAT modules
EtherNet/IP (DLR) and Modbus TCP

Technical specifications

CPU	32-bit dual-core, RTOS
Speed	LD 0.02 µs
Program	Up to 1M steps (4 MB)
Data register	512k words
I/O	DIO 4,352 · AIO 544 ch · RIO >100,000
Ports	RS-232/422/485, mini USB, Ethernet, SDHC
Architecture	Hot-swap, redundancy
Applications	Logistics/warehouse, high-end machines, water, HVAC, traffic

Specifications may change; confirm with us before ordering.

Delta · HMI · standard network

Delta DOP-100L Network HMI

Next-generation 7" and 10" HMIs compatible with common panel cut-outs, with dual Ethernet and 1024 × 600 displays.

7" / 10"DOP-107L / 110L

1024×60024-bit TFT

Dual-coreCortex-A7 1.2 GHz

2 × Ethernetbuilt in

Enquire on WhatsApp Call +91 84488 04419

Models

DOP-107L1/L2: 7"
DOP-110L1/L2: 10"

Hardware

Dual-core ARM Cortex-A7 1.2 GHz
256 MB RAM / 256 MB ROM
Common panel cut-out sizes

Ports

2 × serial (D-Sub × 1)
2 × Ethernet
1 USB host

Technical specifications

Models	DOP-107L1/L2 (7"), DOP-110L1/L2 (10")
Display	24-bit TFT, 1,024 × 600
CPU	Dual-core Cortex-A7 1.2 GHz
Memory	256 MB RAM / 256 MB ROM
Ports	2 × serial, 2 × Ethernet, 1 × USB host

Specifications may change; confirm with us before ordering.

Delta · HMI · advanced

Delta DOP-100 Advanced HMI

Advanced HMIs from 4.3" to 15" with Ethernet, multilingual input and FTP / e-mail / VNC / web monitoring.

4.3"–15"5 sizes

VNCand web monitor

Ethernetbuilt in

SDcard (10"+)

Enquire on WhatsApp Call +91 84488 04419

Models

DOP-103WQ (4.3")
DOP-107WV (7")
DOP-110WS (10.1")
DOP-112WX (12")
DOP-115WX (15")

Features

Multilingual input
FTP, e-mail, VNC, web monitor
USB host for peripherals

12" / 15" models

Dual-core 1 GHz, 1 GB RAM / 8 GB ROM
2 × Ethernet, SD card
4 serial ports

Technical specifications

Models	DOP-103WQ, 107WV, 110WS, 112WX, 115WX
Displays	4.3" 480×272 · 7" 800×480 · 10.1" 1024×600 · 12"/15" 1024×768
CPU	Cortex-A8 800 MHz (up to 10.1") · dual-core 1 GHz (12"/15")
Ethernet	1 port (2 on 12"/15")
Remote	FTP, e-mail, VNC, web monitor

Specifications may change; confirm with us before ordering.

Delta · HMI · multimedia

Delta DOP-100 Multimedia HMI

Large 12" and 15" multimedia HMIs with camera input, 1 GB RAM / 8 GB ROM and dual Ethernet.

12" / 15"DOP-112MX / 115MX

1024×76824-bit TFT

Cameraanalog / IP input

8 GBROM

Enquire on WhatsApp Call +91 84488 04419

Hardware

Dual-core 1 GHz CPU
1 GB RAM / 8 GB ROM
2 × Ethernet, SD card

Multimedia

Analog / IP camera input
Multilingual input

Connectivity

4 serial ports (D-Sub × 2)
Mini USB client / USB host
FTP, e-mail, VNC, web monitor

Technical specifications

Models	DOP-112MX (12"), DOP-115MX (15")
Display	24-bit TFT, 1,024 × 768
CPU	Dual-core 1 GHz
Memory	1 GB RAM / 8 GB ROM
Ports	2 × Ethernet, 4 × serial, mini USB, USB host, SD
Camera	Analog / IP

Specifications may change; confirm with us before ordering.

Delta · HMI · standard Ethernet

Delta DOP-100 Standard Ethernet HMI

Standard Ethernet HMIs from 7" to 10.4" with SD card support and remote monitoring.

7"–10.4"6 models

Ethernet+ SD card

3 serialports

VNCand web monitor

Enquire on WhatsApp Call +91 84488 04419

Models

DOP-107PV, 107IV, 107EV, 107EG (7")
DOP-108IG (8")
DOP-110IS (10.1"), DOP-110IG (10.4")

Hardware

Cortex-A8 800 MHz
256 MB RAM / 256 MB ROM

Connectivity

1 × Ethernet, SD card
3 serial ports, USB host
FTP, e-mail, VNC, web monitor

Technical specifications

Models	DOP-107PV/IV/EV/EG, 108IG, 110IS, 110IG
Displays	7" 800×480 · 8"/10.4" 800×600 · 10.1" 1024×600
CPU	Cortex-A8 800 MHz
Ports	Ethernet, 3 × serial, USB host, SD
Remote	FTP, e-mail, VNC, web monitor

Specifications may change; confirm with us before ordering.

Delta · HMI · standard

Delta DOP-100 Standard HMI

Cost-effective standard HMIs from 5.6" to 10.4" with three serial ports.

5.6"–10.4"4 models

3 serialports

800 MHzCortex-A8

USBhost

Enquire on WhatsApp Call +91 84488 04419

Models

DOP-105CQ (5.6")
DOP-107CV (7")
DOP-110CS (10.1")
DOP-110CG (10.4")

Hardware

Cortex-A8 800 MHz
256 MB RAM / 256 MB ROM

Ports

3 serial ports (D-Sub × 2)
USB host

Technical specifications

Models	DOP-105CQ, 107CV, 110CS, 110CG
CPU	Cortex-A8 800 MHz
Memory	256 MB RAM / 256 MB ROM
Ports	3 × serial, USB host

Specifications may change; confirm with us before ordering.

Delta · HMI · basic

Delta DOP-100 Basic HMI

Compact basic HMIs in 4.3" and 7", with or without Ethernet.

4.3" / 7"5 models

EthernetDQ / DV models

2 serialports

USBhost

Enquire on WhatsApp Call +91 84488 04419

Basic Ethernet

DOP-103DQ (4.3")
DOP-107DV (7")
FTP, e-mail, VNC, web monitor

Basic

DOP-103SQ, DOP-103BQ (4.3")
DOP-107BV (7")

Hardware

Cortex-A8 800 MHz
2 serial ports, USB host

Technical specifications

Models	DOP-103DQ, 107DV, 103SQ, 103BQ, 107BV
Displays	4.3" 480×272 · 7" 800×480
CPU	Cortex-A8 800 MHz
Ports	2 × serial, USB host; Ethernet on DQ/DV

Specifications may change; confirm with us before ordering.

Delta · HMI · handheld

Delta DOP-107H Handheld HMI

A 7" handheld HMI with emergency stop and enable switch, weighing just 750 g.

7"800 × 480

E-stop+ enable switch

750 glightweight

5 / 10 mcables

Enquire on WhatsApp Call +91 84488 04419

Safety

Built-in emergency-stop switch
Enable switch on rear side

Features

SD/SDHC card
Optional MPG (manual pulse generator)

Communication

RS-485 / RS-422 models
Ethernet models (1 port)
Integrated cables 5 m / 10 m

Technical specifications

Display	7" 16-bit TFT, 800 × 480
Safety	E-stop, enable switch
Communication	RS-485/422 or Ethernet
Weight	750 g
Cable	5 m / 10 m

Specifications may change; confirm with us before ordering.

Delta · Temperature controller · modular

Delta DTC Modular Temperature Controller

A DIN-rail modular temperature controller with wide sensor support, multiple output types and built-in Modbus.

24 V DCpower

TC / RTD / analoginputs

PIDcontrol

Modbusbuilt in

Enquire on WhatsApp Call +91 84488 04419

Inputs

Thermocouple K, J, T, E, N, R, S, B, L, U, TXK
Pt100, JPt100
0–5 V, 0–10 V, 0–20 mA, 4–20 mA, 0–50 mA

Outputs & control

Relay, 4–20 mA, pulse voltage, 0–10 V
ON/OFF, PID, manual, PID process control

Alarms & comms

2 alarm outputs, 13 alarm modes
Built-in Modbus

Technical specifications

Power	24 V DC ±10%
Thermocouple	K, J, T, E, N, R, S, B, L, U, TXK
RTD	Pt100, JPt100
Analog input	0–5 V, 0–10 V, 0–20 mA, 4–20 mA, 0–50 mA
Output	Relay, 4–20 mA, pulse voltage, 0–10 V
Control	ON/OFF, PID, manual, PID process
Alarms	2 outputs, 13 modes
Communication	Modbus

Specifications may change; confirm with us before ordering.

Delta · Temperature controller · panel

Delta DTB Advanced Temperature Controller

A panel-mount advanced temperature controller in four sizes, with IP65 front, analog inputs and 18 alarm modes.

4 sizes48×24 to 96×96

IP65protection

18alarm modes

Modbusbuilt in

Enquire on WhatsApp Call +91 84488 04419

Inputs

Thermocouple K, J, T, E, N, R, S, B, L, U, TXK
Pt100, JPt100
0–5 V, 0–10 V, 0–20 mA, 4–20 mA, 0–50 mA

Outputs & control

Relay, 4–20 mA, pulse voltage, 0–10 V
ON/OFF, PID, manual, PID process control

Build

48×24, 48×48, 48×96, 96×96 mm
IP65 protection
2 alarm outputs, 18 alarm modes

Technical specifications

Power	100–240 V AC 50/60 Hz · 24 V DC ±10%
Thermocouple	K, J, T, E, N, R, S, B, L, U, TXK
RTD	Pt100, JPt100
Analog input	0–5 V, 0–10 V, 0–20 mA, 4–20 mA, 0–50 mA
Output	Relay, 4–20 mA, pulse voltage, 0–10 V
Control	ON/OFF, PID, manual, PID process
Alarms	2 outputs, 18 modes
Sizes	48×24, 48×48, 48×96, 96×96 mm
Protection	IP65
Communication	Modbus

Specifications may change; confirm with us before ordering.

Delta · Temperature controller

Delta DTI Temperature Controller

The DTI series temperature controller from Delta. Contact us for models, ratings, price and availability.

Enquire on WhatsApp Call +91 84488 04419

Technical specifications

Note	Specifications on request

Specifications may change; confirm with us before ordering.

Panasonic · Servo drive · standard

Panasonic MINAS A6SE Servo Drive

The standard MINAS A6 servo drive for position control with pulse-train input, and simple positioning with digital I/O.

50 W–5 kWpower range

3.2 kHzvelocity response

23-bitencoder

8 Mppscommand pulse setting

Enquire on WhatsApp Call +91 84488 04419

Control

Position control with pulse-train input
Positioning with digital I/O (block operation, like MINAS A4P)
Semi-closed position loop

Tuning

Real-time auto-gain tuning with machine-type stiffness settings
Manual and automatic notch filters
Manual and automatic damping filters for vibration-free stops
3-step gain switching for fast, low-vibration positioning

Easy upgrade

Connectors and cables compatible with MINAS A5
Same EMC filters and braking resistors as A5
Motor flange dimensions interchangeable 1:1
Set up with PANATERM software

Technical specifications

Rated power	50 W–1.5 kW (200 V AC, 1/3-phase) · 1–5 kW (400 V AC, 3-phase)
Rated torque	0.16–15.9 Nm (200 V) · 0.64–23.9 Nm (400 V)
Peak torque	0.48–47.7 Nm (200 V) · 2.23–71.6 Nm (400 V)
Speed	Rated 2000–3000 rpm · max. 3000–6500 rpm
Velocity response	3.2 kHz
Encoder	23-bit (8,388,608 ppr), absolute or incremental
Motor protection	IP67
Control mode	Position
Control input	Pulse
Frames	A–F

Specifications may change; confirm with us before ordering.

Panasonic · Servo drive · RS485

Panasonic MINAS A6SG Servo Drive

The MINAS A6 pulse-type servo drive with RS232/RS485 Modbus RTU communication, so a PLC can set parameters and positions over a simple serial link.

50 W–5 kWpower range

Modbus RTURS232 / RS485

3.2 kHzvelocity response

23-bitencoder

Enquire on WhatsApp Call +91 84488 04419

Control

Position control with pulse-train input
Positioning with digital I/O
Parameter access from the PLC over Modbus

Why Modbus

No position deviation from lost pulses
Fewer wires than pulse control
Direct access to drive parameters from Panasonic FP PLCs

Tuning

Real-time auto-gain tuning with machine-type stiffness settings
Manual and automatic notch filters
Manual and automatic damping filters for vibration-free stops
3-step gain switching for fast, low-vibration positioning

Technical specifications

Rated power	50 W–1.5 kW (200 V AC, 1/3-phase) · 1–5 kW (400 V AC, 3-phase)
Rated torque	0.16–15.9 Nm (200 V) · 0.64–23.9 Nm (400 V)
Peak torque	0.48–47.7 Nm (200 V) · 2.23–71.6 Nm (400 V)
Speed	Rated 2000–3000 rpm · max. 3000–6500 rpm
Velocity response	3.2 kHz
Encoder	23-bit (8,388,608 ppr), absolute or incremental
Motor protection	IP67
Control mode	Position
Control input	Pulse
Communication	RS232 / RS485, Modbus RTU

Specifications may change; confirm with us before ordering.

Panasonic · Servo drive · multifunction

Panasonic MINAS A6SF Multifunction Servo Drive

The most complete pulse/analog MINAS A6 drive: position, velocity and torque control, external encoder for full-closed control, Modbus and Safe Torque Off.

50 W–5 kWpower range

Pos · Vel · Torquecontrol modes

STOSIL3 / PL e

Full-closedexternal encoder

Enquire on WhatsApp Call +91 84488 04419

Control

Position, velocity and torque control
Pulse and analog command inputs
External encoder or linear scale for full-closed control
Positioning with digital I/O

Safety & communication

Safe Torque Off (STO): ISO 13849-1 PL e Cat. 3, IEC 61508 SIL3
RS232 / RS485 Modbus RTU
Dynamic brake and torque limit

Tuning

Real-time auto-gain tuning with machine-type stiffness settings
Manual and automatic notch filters
Manual and automatic damping filters for vibration-free stops
3-step gain switching for fast, low-vibration positioning

Technical specifications

Rated power	50 W–1.5 kW (200 V AC, 1/3-phase) · 1–5 kW (400 V AC, 3-phase)
Rated torque	0.16–15.9 Nm (200 V) · 0.64–23.9 Nm (400 V)
Peak torque	0.48–47.7 Nm (200 V) · 2.23–71.6 Nm (400 V)
Speed	Rated 2000–3000 rpm · max. 3000–6500 rpm
Velocity response	3.2 kHz
Encoder	23-bit (8,388,608 ppr), absolute or incremental
Motor protection	IP67
Control modes	Position, velocity, torque, full-closed
Control input	Pulse, analog
Safety	STO, SIL3 / PL e
Communication	RS232 / RS485, Modbus RTU

Specifications may change; confirm with us before ordering.

Panasonic · Servo drive · RTEX network

Panasonic MINAS A6N RTEX Servo Drive

A network servo drive on Panasonic RTEX (Realtime Express), a fast 100 Mbit/s real-time Ethernet bus for single and multi-axis positioning.

100 Mbit/sRTEX real-time bus

32slaves max.

100 mbetween units

STOSIL3 / PL e

Enquire on WhatsApp Call +91 84488 04419

Network

RTEX real-time Ethernet, ring topology
Standard CAT5e cables, up to 100 m between units
Up to 32 slaves on one ring

Control

Position, velocity and torque control
External encoder for full-closed control
Manual and automatic vibration suppression

Controllers

Panasonic FP0H PLC + AFP0HM4N / AFP0HM8N: up to 16 axes
AFPXHM8N16PD positioning unit: up to 8 axes
Configure with Configurator PM software

Technical specifications

Rated power	50 W–1.5 kW (200 V AC, 1/3-phase) · 1–5 kW (400 V AC, 3-phase)
Rated torque	0.16–15.9 Nm (200 V) · 0.64–23.9 Nm (400 V)
Peak torque	0.48–47.7 Nm (200 V) · 2.23–71.6 Nm (400 V)
Speed	Rated 2000–3000 rpm · max. 3000–6500 rpm
Velocity response	3.2 kHz
Encoder	23-bit (8,388,608 ppr), absolute or incremental
Motor protection	IP67
Control modes	Position, velocity, torque
Network	RTEX, 100 Mbit/s
Safety	STO, SIL3 / PL e

Specifications may change; confirm with us before ordering.

Panasonic · Servo drive · EtherCAT

Panasonic MINAS A6B EtherCAT Servo Drive

The MINAS A6 network drive for EtherCAT (CoE), the open standard fieldbus, so it can work alongside other EtherCAT devices. Versions for rotary and linear motors.

EtherCATCoE, 100 Mbit/s

64 axeswith FP7 motion units

STOSIL3 / PL e

Rotary + linearmotor support

Enquire on WhatsApp Call +91 84488 04419

Network

EtherCAT (CAN over EtherCAT)
Standard CAT5e cables, up to 100 m between units
Works with any EtherCAT master

Control

Position, velocity and torque control
External encoder for full-closed control
A6BE/A6BF for rotary motors, A6BL/A6BM for linear motors

Controllers

Panasonic FP7 PLC + AFP7MC16EC / 32EC / 64EC: up to 64 axes
Safety: ISO 13849-1 PL e, IEC 61508 SIL3, STO

Technical specifications

Rated power	50 W–1.5 kW (200 V AC, 1/3-phase) · 1–5 kW (400 V AC, 3-phase)
Rated torque	0.16–15.9 Nm (200 V) · 0.64–23.9 Nm (400 V)
Peak torque	0.48–47.7 Nm (200 V) · 2.23–71.6 Nm (400 V)
Speed	Rated 2000–3000 rpm · max. 3000–6500 rpm
Velocity response	3.2 kHz
Encoder	23-bit (8,388,608 ppr), absolute or incremental
Motor protection	IP67
Control modes	Position, velocity, torque
Network	EtherCAT (CoE), 100 Mbit/s
Safety	STO, SIL3 / PL e

Specifications may change; confirm with us before ordering.

Panasonic · Servo motor · low inertia

Panasonic MINAS A6 MSMF Low-Inertia Servo Motor

Low-inertia motors from low to high power, for high-speed applications and machines with high rigidity and repetition rate.

50 W–5 kWrated power

up to 6000rpm max.

23-bitencoder

IP67protection

Enquire on WhatsApp Call +91 84488 04419

Range

200 V: 50 W–1.5 kW, flange 38–100 mm, 3000 rpm (max. 5000–6000)
400 V: 1–5 kW, flange 100–130 mm, 3000 rpm (max. 5000–5500)

Options

With or without holding brake
Key shaft · single-lip or triple-lip oil seal
Absolute encoder with or without battery

Typical uses

Electronics production (bonders, SMD machines)
Packaging machines
Food production machines

Technical specifications

Inertia	Low
Rated power	50 W–1.5 kW (200 V) · 1–5 kW (400 V)
Rated torque	0.16–15.9 Nm
Max. torque	0.48–47.8 Nm
Rated / max. speed	3000 rpm / 5000–6000 rpm
Flange	38, 60, 80, 100, 120, 130 mm
Encoder	23-bit, 8,388,608 ppr
Protection	IP67

Specifications may change; confirm with us before ordering.

Panasonic · Servo motor · medium inertia

Panasonic MINAS A6 MDMF Medium-Inertia Servo Motor

Medium-inertia motors from medium to high power, suited to belt-driven machinery with low rigidity.

1–5 kWrated power

up to 71.6 Nmmax. torque

23-bitencoder

IP67protection

Enquire on WhatsApp Call +91 84488 04419

Range

200 V: 1–1.5 kW, 130 mm flange, 2000 rpm (max. 3000)
400 V: 1–5 kW, 130/176 mm flange, 2000 rpm (max. 3000–3500)

Design

Split-core structure: 10–15% lighter and up to 30% shorter than A5
With or without holding brake
Key shaft · single-lip or triple-lip oil seal

Typical uses

Conveyor machinery
Robots
Textile machines

Technical specifications

Inertia	Medium
Rated power	1–1.5 kW (200 V) · 1–5 kW (400 V)
Rated torque	4.77–23.9 Nm
Max. torque	14.3–71.6 Nm
Rated / max. speed	2000 rpm / 3000–3500 rpm
Flange	130, 176 mm
Encoder	23-bit, 8,388,608 ppr
Protection	IP67

Specifications may change; confirm with us before ordering.

Panasonic · Servo motor · high inertia

Panasonic MINAS A6 MHMF High-Inertia Servo Motor

High-inertia motors from low to high power, with up to 350% peak torque and 6500 rpm, for belt-driven machinery with low rigidity.

50 W–5 kWrated power

350%peak torque

6500 rpmmax. speed

IP67protection

Enquire on WhatsApp Call +91 84488 04419

Range

200 V: 50 W–1.5 kW, flange 40–130 mm
400 V: 200 W–5 kW, flange 60–176 mm
Up to 3000 rpm rated, 6500 rpm max. (small frames)

Design

Up to 350% of rated torque
10–30% shorter and lighter than MINAS A5
With or without holding brake · key shaft · oil seal

Typical uses

Conveyor machinery
Robots
LCD and electronics production

Technical specifications

Inertia	High
Rated power	50 W–1.5 kW (200 V) · 200 W–5 kW (400 V)
Rated torque	0.16–23.9 Nm
Max. torque	0.56–71.6 Nm
Rated / max. speed	2000–3000 rpm / 3000–6500 rpm
Flange	40, 60, 80, 130, 176 mm
Encoder	23-bit, 8,388,608 ppr
Protection	IP67

Specifications may change; confirm with us before ordering.

Trio · Motion controller · compact

Trio MC403-X Motion Coordinator

A compact panel-mount Motion Coordinator with a Cortex-M7 processor, for 2 to 3 axes of stepper or servo control.

2–3physical axes

16virtual axes

396 MHzCortex-M7

125 µsmin. servo update

Enquire on WhatsApp Call +91 84488 04419

Axes

P865: 2 axes · P866 / P867: 3 axes
Stepper (pulse/direction) or closed-loop servo
Absolute encoders: BiSS, EnDat, Tamagawa, SSI

I/O

8 digital inputs + 4 bidirectional I/O (24 V)
2 analogue outputs ±10 V, 2 analogue inputs 0–10 V
6 registration inputs
Expandable via CAN I/O modules

Programming

Trio BASIC multi-tasking language
IEC 61131-3 programming
G-code, DXF and HPGL input
Motion Perfect development software

Technical specifications

Processor	ARM Cortex-M7, 396 MHz
Axes	2–3 physical + 16 virtual
Servo update	125–2000 µs
Communication	Ethernet, EtherNet/IP, Modbus TCP built in; CANopen, DeviceNet, RS232/RS485, Hostlink, Modbus RTU
Memory	4 MB user memory · micro SD slot
Supply	24 V DC, 350 mA
Size	135 × 122 × 35 mm, 325 g
Part numbers	P865, P866, P867

Specifications may change; confirm with us before ordering.

Trio · Motion controller · stepper

Trio MC404-Z Motion Coordinator

A low-cost panel-mount Motion Coordinator for high-volume stepper applications, with 4 axes and plenty of built-in I/O.

4stepper axes

16software axes

16 / 8digital in / out

396 MHzCortex-M7

Enquire on WhatsApp Call +91 84488 04419

Axes

4 pulse/direction or quadrature axes
Axis 3 supports absolute encoders (SSI, EnDat, Tamagawa, BiSS)
12 additional virtual axes

I/O

16 digital inputs, 8 digital outputs (24 V)
1 analogue input, 1 analogue output
2 registration inputs
Expandable via CAN I/O modules

Programming

Trio BASIC multi-tasking language
IEC 61131-3 programming
G-code, DXF and HPGL input
Motion Perfect development software

Technical specifications

Processor	ARM Cortex-M7, 396 MHz
Axes	4 physical, 16 in software
Communication	Ethernet, EtherNet/IP, Modbus TCP built in; CANopen, DeviceNet, RS232/RS485, Hostlink, Modbus RTU
Supply	24 V DC, 350 mA
Size	176.5 × 115 × 28 mm, 430 g
Part number	P855

Specifications may change; confirm with us before ordering.

Trio · Motion controller · 5 axis

Trio MC405 Motion Coordinator

A 5-axis Motion Coordinator for stepper or servo motors, with a built-in display, 16 software axes and DIN or panel mounting.

5physical axes

16software axes

4±10 V analogue outputs

532 MHzARM11

Enquire on WhatsApp Call +91 84488 04419

Axes

P826: 5 pulse/direction axes
P827: 5 axes, closed-loop servo on axes 0–3
Absolute encoder support (P827)
Up to 6 MHz encoder input, 2 MHz stepper output

I/O

8 digital inputs + 8 bidirectional I/O (24 V)
4 analogue outputs ±10 V, 2 analogue inputs 0–10 V
8 registration inputs
Up to 512 external digital I/O

Programming

Trio BASIC multi-tasking language
IEC 61131-3 programming
G-code, DXF and HPGL input
Motion Perfect development software

Technical specifications

Processor	ARM11, 532 MHz
Axes	5 physical + virtual, 16 in software
Communication	Ethernet, EtherNet/IP, Modbus TCP built in; CANopen, DeviceNet, RS232/RS485, Hostlink, Modbus RTU
Supply	24 V DC, 350 mA
Size	186 × 122 × 35 mm, 476 g · DIN / panel
Part numbers	P826 (stepper), P827 (servo)

Specifications may change; confirm with us before ordering.

Trio · Motion controller · 8–16 axis

Trio MC508 Motion Coordinator

A high-specification Motion Coordinator with an 800 MHz Cortex-A9 processor, eight flexible axis ports and eight analogue outputs.

8–16physical axes

32virtual axes

800 MHzCortex-A9

32 / 16digital in / out

Enquire on WhatsApp Call +91 84488 04419

Axes

P848: 8 axes · P849: 16 axes (8 extended + 8 step/direction)
8 analogue servo outputs ±10 V
Absolute encoders: EnDat, BiSS, SSI, Tamagawa

I/O

32 digital inputs, 16 digital outputs (24 V)
2 analogue inputs 0–10 V
8 registration inputs
Up to 512 external digital I/O

Programming

Trio BASIC multi-tasking language
IEC 61131-3 programming
G-code, DXF and HPGL input
Motion Perfect development software

Technical specifications

Processor	ARM Cortex-A9, 800 MHz
Axes	8 or 16 physical, up to 32 virtual
Communication	Ethernet, EtherNet/IP, Modbus TCP built in; CANopen, DeviceNet, RS232/RS485, Hostlink, Modbus RTU
Programs / tasks	96 / 22
Supply	24 V DC, 350 mA
Size	226 × 132 × 35 mm, 640 g · DIN / panel
Part numbers	P848, P849

Specifications may change; confirm with us before ordering.

Trio · Motion controller · Eurocard

Trio Euro404 / Euro408 Motion Coordinator

3U Eurocard Motion Coordinators for rack-mounted systems, with 4 or 8 flexible axis ports for stepper or analogue servo motors.

4 / 8physical axes

16software axes

3UEurocard rack

532 MHzARM11

Enquire on WhatsApp Call +91 84488 04419

Axes

Euro404: 4 axes · Euro408: 8 axes
Stepper or analogue servo versions
4 or 8 analogue outputs ±10 V

I/O

16 digital inputs, 8 digital outputs (24 V)
2 analogue inputs 0–10 V
8 registration inputs
CANopen I/O expansion

Programming

Trio BASIC multi-tasking language
IEC 61131-3 programming
G-code, DXF and HPGL input
Motion Perfect development software

Technical specifications

Processor	ARM11, 532 MHz
Axes	4 or 8 physical, 16 in software
Communication	Ethernet, EtherNet/IP, Modbus TCP built in; CANopen, DeviceNet, RS232/RS485, Hostlink, Modbus RTU
Supply	5 V DC, 600–800 mA
Form factor	3U Eurocard, 25 × 128 × 186 mm
Part numbers	P831–P834

Specifications may change; confirm with us before ordering.

Trio · Motion controller · RTEX

Trio MC4N-RTEX Motion Coordinator

A networked Motion Coordinator dedicated to running Panasonic servo drives over RTEX (Realtime Express), from 2 to 32 axes.

2–32RTEX axes

64-bitposition registers

532 MHzARM11

Pos · Vel · Torquedrive modes

Enquire on WhatsApp Call +91 84488 04419

Network

Panasonic RTEX real-time bus
Position, speed and torque drive modes
Ideal partner for Panasonic MINAS servo drives

I/O

8 digital inputs + 8 bidirectional I/O
4 registration inputs
Up to 1024 external digital I/O
Isolated RS232 and RS485

Programming

Trio BASIC multi-tasking
IEC 61131-3 (optional)
Up to 64 programs, 22 tasks

Technical specifications

Processor	ARM11, 532 MHz
Axes	2, 4, 8, 16 or 32 RTEX axes
Communication	Ethernet, EtherNet/IP, Modbus TCP, CANopen, DeviceNet, RS232/RS485
Supply	24 V DC, 350 mA
Size	40 × 157 × 120 mm, 432 g
Part numbers	P906–P910

Specifications may change; confirm with us before ordering.

Trio · Motion controller · EtherCAT

Trio MC6N-ECAT Motion Coordinator

A dual-core Motion Coordinator dedicated to running servo and stepper drives over EtherCAT, from 2 up to 64 axes.

2–64EtherCAT axes

125 µsmin. cycle

1 GHzdual-core Cortex-A7

64-bitposition registers

Enquire on WhatsApp Call +91 84488 04419

Network

EtherCAT master for remote servo and stepper drives
Cycle times 125 µs to 4 ms
Axis count expandable by feature code

I/O

8 digital inputs + 8 bidirectional I/O
4 registration inputs
Up to 1024 external digital I/O

Programming

Trio BASIC multi-tasking language
IEC 61131-3 programming
G-code, DXF and HPGL input
Motion Perfect development software

Technical specifications

Processor	i.MX7 dual Cortex-A7, 1 GHz
Axes	2, 4, 8, 16, 32 or 64 EtherCAT axes
Communication	Ethernet, EtherNet/IP, Modbus TCP, CANopen, DeviceNet, PROFINET, RS232/RS485
Supply	24 V DC, 180 mA
Size	40 × 157 × 120 mm, 432 g
Part numbers	P960–P965

Specifications may change; confirm with us before ordering.

Trio · Motion controller · modular

Trio MC664 Motion Coordinator

A modular Motion Coordinator with a 1 GHz Cortex-A9 processor, built-in EtherCAT and clip-on modules for SERCOS, SLM, RTEX and wired axes.

64networked axes

25wired axes

1 GHzCortex-A9

7expansion slots

Enquire on WhatsApp Call +91 84488 04419

Networks

Built-in EtherCAT port
Optional SERCOS, SLM and Panasonic RTEX modules
Mix networked and wired stepper/servo axes

Expansion

Up to 7 half-height or 3 full-height modules
32 MB user memory, SD card slot
Up to 1024 external digital I/O

Programming

Trio BASIC multi-tasking language
IEC 61131-3 programming
G-code, DXF and HPGL input
Motion Perfect development software

Technical specifications

Processor	Cortex-A9 single core, 1 GHz
Axes	Up to 64 (networked), 25 wired
Servo period	125–4000 µs
Communication	Ethernet, EtherNet/IP, Modbus TCP built in; CANopen, DeviceNet, RS232/RS485, Hostlink, Modbus RTU
Supply	24 V DC, 625 mA
Size	56 × 201 × 155 mm, 750 g · DIN / panel
Part number	P861

Specifications may change; confirm with us before ordering.

Trio · Motion controller · quad core

Trio MC664-X Motion Coordinator

The quad-core version of the MC664, with a dedicated communications core and up to 128 networked axes for large, fast machines.

128networked axes

4 × 1 GHzCortex-A9 cores

50 µsmin. servo period

345lines/ms

Enquire on WhatsApp Call +91 84488 04419

Networks

Built-in EtherCAT port (up to 128 nodes)
Optional SERCOS, SLM and Panasonic RTEX modules
Up to 256 axes in software

Expansion

Up to 7 half-height or 3 full-height modules
32 MB user memory, SD card slot
Up to 1024 external digital I/O

Programming

Trio BASIC multi-tasking language
IEC 61131-3 programming
G-code, DXF and HPGL input
Motion Perfect development software

Technical specifications

Processor	Cortex-A9 quad core, 1 GHz
Axes	Up to 128 networked, 256 in software
Servo period	50–4000 µs
Communication	Ethernet, EtherNet/IP, Modbus TCP built in; CANopen, DeviceNet, RS232/RS485, Hostlink, Modbus RTU
Supply	24 V DC, 625 mA
Size	56 × 201 × 155 mm, 750 g · DIN / panel
Part number	P862

Specifications may change; confirm with us before ordering.

Trio · I/O expansion · CANbus

Trio CAN I/O Expansion Modules

DIN-rail digital, analogue and relay I/O modules that connect to a Motion Coordinator over CANbus, for simple, low-cost I/O expansion.

16points per digital module

500 kHzCANbus

100 mbus length

DIN railmounting

Enquire on WhatsApp Call +91 84488 04419

Modules

P317: 16 digital outputs · P318: 16 digital inputs
P319 / P329: 16 in + 16 out digital
P326: 8 analogue in + 4 analogue out (±10 V)
P327: 8 relay outputs

Network

Trio CANbus or CANopen DS401
Up to 16 input + 16 output + 4 analogue modules per controller

Technical specifications

Bus	CANbus 500 kHz, up to 100 m
Protocols	Trio CAN, CANopen DS401
Supply	24 V, 1.5 W
Size	26 × 85 × 130 mm, 168 g
Part numbers	P317, P318, P319, P326, P327, P329

Specifications may change; confirm with us before ordering.

Trio · I/O expansion · EtherCAT

Trio Flexslice EtherCAT I/O

Fast, compact slice I/O on EtherCAT, with digital, analogue, temperature and motion modules that sync with the servo cycle.

16modules per coupler

125 µsrefresh

100 Mbit/sEtherCAT

Push-inconnectors

Enquire on WhatsApp Call +91 84488 04419

Modules

P366 EtherCAT coupler, up to 16 modules
16-channel digital in / out (PNP or NPN)
8-channel analogue in / out, 4–20 mA input
Thermocouple and RTD inputs

Motion

P374: 2-axis servo module
P375: 3-axis stepper / pulse module
Bus cycle synchronised with the servo period

Technical specifications

Bus	EtherCAT, 100 Mbit/s, ≥125 µs
Coupler	P366, up to 16 modules
Mounting	DIN rail, click-to-lock
Works with	Trio or third-party EtherCAT masters

Specifications may change; confirm with us before ordering.

Trio · Expansion · MC664

Trio MC664 / MC664-X Expansion Modules

Clip-on modules that add drive networks, wired axes and fieldbuses to the MC664 and MC664-X. Fit up to 7 half-height or 3 full-height modules.

7half-height slots

RTEXPanasonic network

SERCOSand SLM

FlexAxis4 / 8 axis

Enquire on WhatsApp Call +91 84488 04419

Drive networks

P871 Panasonic RTEX, up to 32 axes
P872 SERCOS · P873 SLM
P876 EtherCAT master, up to 64 axes

Axes & fieldbus

P874 / P879 FlexAxis, 8 or 4 axes
P881 FlexAxis SSI · P883 FlexAxis BiSS
P875 Anybus CompactCom fieldbus

Technical specifications

Slots	Up to 7 half-height or 3 full-height
Networks	RTEX, SERCOS, SLM, EtherCAT
Axis modules	FlexAxis 4 / 8 axis, SSI, BiSS
Fieldbus	Anybus CompactCom

Specifications may change; confirm with us before ordering.

Nidec · Planetary gearbox · economical

Nidec ABLE VRXF Planetary Gearbox

A compact, cost-effective servo gearbox with helical gears for quiet running. It keeps the same mounting dimensions as the earlier VRSF series, so it drops into existing designs.

3–81ratios

≤3 arc-minprecision option

up to 274 Nmmax. output torque

6000 rpmmax. input speed

Enquire on WhatsApp Call +91 84488 04419

Design

New helical gearing for low noise
Same mounting dimensions as the VRSF series
Smooth output shaft (no keyway) as standard
High-performance grease for efficiency and sealing

Backlash options

Standard: 15 arc-min
Low backlash (LB): 5 arc-min
Precision (PB): 3 arc-min

Good to know

Lubricated for life, maintenance-free
Mounts to almost any servo motor with a motor adapter plate
Mounted in any orientation
Withstands peaks up to 350% of rated torque

Technical specifications

Frame sizes	B, C, D, E
Ratios	3 to 81
Backlash	15 / 5 / 3 arc-min
Rated output torque	3.06–119 Nm
Max. output torque	8.23–274 Nm
Input speed	3000 rpm rated · 6000 rpm max.
Radial load	392–3530 N
Weight	0.55–10.8 kg

Specifications may change; confirm with us before ordering.

Nidec · Planetary gearbox · all-rounder

Nidec ABLE VRL Planetary Gearbox

The all-rounder of the range: helical gears, a strong integrated planet carrier and high torque density, with 5 arc-min backlash for accurate, dynamic axes at a sensible price.

≤5 arc-minbacklash, 1-stage

up to 1700 Nmrated torque

95%efficiency, 1-stage

IP65wash-down option

Enquire on WhatsApp Call +91 84488 04419

Design

Helical gearing with fine finishing for smooth, quiet running
Output shaft and planet carrier in one piece
Labyrinth input seal to keep temperature low
Industry-standard mounting dimensions

Good to know

Lubricated for life, maintenance-free
Mounts to almost any servo motor with a motor adapter plate
Mounted in any orientation

Typical uses

Packaging and printing machines
Pick-and-place and gantry axes
Conveyors, indexing and feeders
Machine tools and automation equipment

Technical specifications

Frame sizes	050, 070, 090, 120, 155, 205, 235
Ratios	1-stage 3–10 · 2-stage 15–100
Backlash	≤5 arc-min (1-stage) · ≤5–7 arc-min (2-stage)
Rated output torque	6–1700 Nm
Peak output torque	17–3700 Nm
Max. input speed	3000–8500 rpm
Efficiency	95% (1-stage) · 90% (2-stage)
Protection	IP54 · IP65 wash-down option
Noise	≤61–71 dB(A)

Specifications may change; confirm with us before ordering.

Nidec · Planetary gearbox · precision

Nidec ABLE VRB Planetary Gearbox

A precise, dynamic gearbox with ≤3 arc-min backlash and through-bolt flange mounting, which makes it easy to fit to many kinds of machines.

≤3 arc-minbacklash, 1-stage

up to 2000 Nmrated torque

95%efficiency, 1-stage

IP65wash-down option

Enquire on WhatsApp Call +91 84488 04419

Design

Carburised helical gears for quiet running
Through-hole (through-bolt) output flange mounting
Keyed or smooth output shaft

Good to know

Lubricated for life, maintenance-free
Mounts to almost any servo motor with a motor adapter plate
Mounted in any orientation

Typical uses

Packaging and printing machines
Pick-and-place and gantry axes
Conveyors, indexing and feeders
Machine tools and automation equipment

Technical specifications

Frame sizes	042, 060, 090, 115, 140, 180, 220
Ratios	1-stage 3–10 · 2-stage 15–100
Backlash	≤3 arc-min (1-stage) · ≤3–5 arc-min (2-stage)
Rated output torque	6–2000 Nm
Peak output torque	17–5000 Nm
Max. input speed	3000–8500 rpm
Efficiency	95% (1-stage) · 90% (2-stage)
Protection	IP54 · IP65 wash-down option
Noise	61–71 dB(A)

Specifications may change; confirm with us before ordering.

Nidec · Planetary gearbox · high precision

Nidec ABLE VRS Planetary Gearbox

Compact and precise, for demanding positioning and high-speed, continuous-duty axes where low heat matters. Two tapered roller bearings carry high output loads.

≤3 arc-minstandard backlash

≤1 arc-minreduced option

up to 3400 Nmrated torque

8500 rpmmax. input speed

Enquire on WhatsApp Call +91 84488 04419

Design

Two tapered roller bearings on the output
Labyrinth sealing for low running temperature
Carburised helical gears
Reduced-backlash versions down to ≤1 arc-min

Good to know

Lubricated for life, maintenance-free
Mounts to almost any servo motor with a motor adapter plate
Mounted in any orientation

Typical uses

High-speed, continuous-duty servo axes
Precision positioning and indexing
Printing, converting and packaging lines

Technical specifications

Frame sizes	060, 075, 100, 140, 180, 210, 240
Ratios	1-stage 3–10 · 2-stage 15–100
Backlash	≤3 arc-min · reduced ≤2 / ≤1 arc-min
Rated output torque	19–3400 Nm
Peak output torque	46–8000 Nm
Max. input speed	3000–8500 rpm
Efficiency	90–95%
Protection	IP54 · IP65 wash-down option
Ambient	0–40 °C

Specifications may change; confirm with us before ordering.

Nidec · Planetary gearbox · high torque

Nidec ABLE VRT Planetary Gearbox

Very high torque density and torsional rigidity in a compact body, with a robot-standard ISO output flange for fast, precise indexing and easy installation.

≤3 arc-minstandard backlash

≤1 arc-minreduced option

up to 4200 Nmrated torque

ISO flangeoutput

Enquire on WhatsApp Call +91 84488 04419

Design

ISO output flange (robotics industry standard)
High torsional rigidity for accurate positioning
Tapered roller bearings for high radial and axial loads

Good to know

Lubricated for life, maintenance-free
Mounts to almost any servo motor with a motor adapter plate
Mounted in any orientation

Typical uses

7th-axis robot tracks
Rotary dial and index tables
End-of-arm tooling
High-dynamic indexing axes

Technical specifications

Frame sizes	047, 064, 090, 110, 140, 200, 255, 285
Ratios	1-stage 4–10 · 2-stage 16–100
Backlash	≤3 arc-min · reduced ≤1 arc-min
Rated output torque	9–4200 Nm
Peak output torque	25–7500 Nm
Max. input speed	3000–8500 rpm
Efficiency	90–95%
Protection	IP54 · IP65 wash-down option
Noise	61–67 dB(A)

Specifications may change; confirm with us before ordering.

Nidec · Planetary gearbox · high rigidity

Nidec ABLE VRG Planetary Gearbox

A quiet, highly rigid precision gearbox with 1 or 3 arc-min backlash, made for semiconductor equipment, machine tools and other high-accuracy machines. Flange or shaft output.

1 / 3 arc-minbacklash

up to 358 Nmrated torque

1530 Nmemergency stop torque

Flange or shaftoutput

Enquire on WhatsApp Call +91 84488 04419

Design

High rigidity and positioning accuracy
Quiet running and long life
Compact, easy mounting
Flange-mount or output-shaft versions

Good to know

Lubricated for life, maintenance-free
Mounts to almost any servo motor with a motor adapter plate
Mounted in any orientation

Typical uses

Semiconductor equipment
Machine tools
High-precision rotary axes

Technical specifications

Frame sizes	B60P, C90, C90P, D120, E170
Ratios	3.67 to 100
Backlash	1 or 3 arc-min
Rated output torque	6.82–358 Nm
Max. output torque	21.6–765 Nm
Emergency stop torque	43.1–1530 Nm
Input speed	2000–3000 rpm rated · 3000–6000 rpm max.
Allowable moment	38–1037 Nm
Weight	1.1–22 kg

Specifications may change; confirm with us before ordering.

Automation products: Delta, Inovance, Panasonic and Trio drives, servo, PLCs, HMIs, motion controllers, Nidec planetary gearboxes and control panels

Inovance AC drives, servo, PLCs & industrial robots

AC Drives

MD200

MD310

MD290

MD630-INT

MD500

MD500-PLUS

MD520

MD600

AC Multidrives

MD800

MD810

Servo Drives & Motors

SV630N

SV660N

SV670P

SV680P/N

IS810N

SV820N

IS620N

MS1 motors

ISMG motors

PLCs

H1U

H3U

H5U

Easy series

GL20 I/O

HMIs

IT7000

ITS7000

Motion Controllers & I/O

AM521 / AM522

AM600

AC8XX

AP7XX

GL10 / GR10

Industrial Robots

SCARA robots

IR-S4

IR-S7

IR-S10

IR-S25

IR-S35

IR-S60 / GS60

IR-TS4 / TS5

6-axis robots

IR-R4 / R4H

IR-R7H

IR-R11

IR-R15H

IR-R10

IR-R25

Robot controller & accessories

IRCB501

IR-TP200

Also available on request

Delta AC drives, servo systems, PLCs & HMIs

AC Drives

MS300

ME300

MH300

VFD-EL-W

VFD-EL

C2000 Plus

CP2000

Servo Systems

ASDA-B3

ASDA-A3

ASDA-B2

ASDA-E3

PLCs

DVP-ES2 / EX2

DVP-SS2

DVP-SE

AS Series

AH Series

HMIs
